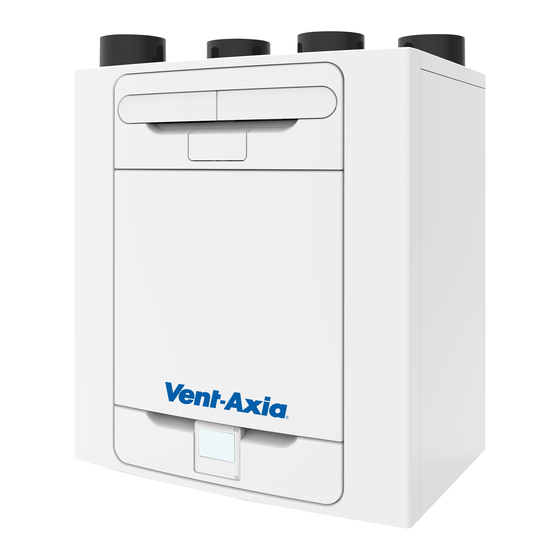

Advance
MVHR
Installation and User Guide
Original Instructions
PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE COMMENCING INSTALLATION OR OPERATION.
PLEASE REFER TO ACCOMPANYING DOCUMENTATION
FOR INFORMATION SPECIFIC TO YOUR UNIT.
PLEASE RETAIN THESE INSTRUCTIONS WITH THE
PRODUCT.
Stock Ref. N°
405215 Advance S
405216 Advance SX
476808 Advance Sp LH
476809 Advance Sp RH
Copyright © 2022 Vent-Axia. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vent-Axia Advance S
Summary of Contents for Vent-Axia Advance S
- Page 1 476808 Advance Sp LH 476809 Advance Sp RH PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE COMMENCING INSTALLATION OR OPERATION. PLEASE REFER TO ACCOMPANYING DOCUMENTATION FOR INFORMATION SPECIFIC TO YOUR UNIT. PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT. Copyright © 2022 Vent-Axia. All rights reserved.
- Page 2 Warnings and Safety Information • Do not install this product in areas where the following may be present or occur: • Excessive oil or a grease laden • Ambient temperatures higher than 40°C atmosphere. and lower than -20°C. • Corrosive or flammable gases, liquids or •...
-
Page 3: Table Of Contents
Contents Product Description Installation Overview………………………………………………………………..5 Wall mountuing a Unit…………………………………………………6 Floor mounting a Unit………………………………………………….7 Floor Mounting the Unit (Alternate Method) ........8 Vertical Discharge Condensate Installation ........9 Attaching the Ducting ..............10 Electrical Installation ..............11 Connect Switches and Sensors........... 12 Connecting the Power Supply and Light Switch ...... - Page 4 Installation Operation and Monitoring Product Description Mechanical Ventilation/Heat Recovery (MVHR). This heat recovery unit is designed for the energy efficient ventilation of houses and similar dwellings, conforming to the latest requirements of the Building Regulations document F 2010. The unit is designed for continuous 24-hour extract ventilation of stale moist air from bathrooms, toilets, utility rooms and kitchens.
-
Page 5: Installation
Installation Overview Before installation of the unit We advise installers to fix all mains and sensor wiring along with any internal accessories prior to fixing the MVHR unit in position, leaving approximately 500mm tails to allow for internal routing. Inspect the Unit When taking delivery of the unit, check the items delivered against the enclosed delivery note. -
Page 6: Wall Mountuing A Unit
Installation Wall Mounting the Unit Top of unit Step 1: Mark the wall bracket position using the dimensions shown. Note the position of the top of the unit in relation to the wall bracket. Ensure the bracket position is horizontal. Step 2: Attach the wall bracket to the wall using appropriate fixings. -
Page 7: Floor Mounting A Unit
The board may then be attached to joists, flooring, or equivalent. Vent-Axia recommends that where possible, the wall bracket is used in conjunction with any floor mount solution to prevent the unit from tipping. -
Page 8: Floor Mounting The Unit (Alternate Method)
Installation Floor Mounting the Unit (Alternate Method) Step 1: The unit has 44 x 12mm deep fixing holes on the underside suitable for a No.6 screw. The holes are configured to allow fitment of most standard kitchen foot types (not supplied). -
Page 9: Vertical Discharge Condensate Installation
Installation Vertical Discharge Condensate Installation Note A trap must be fitted between the condensate drain of the unit and the rest of the waste system. A waterless trap is recommended, as they are not susceptible to drying out during warmer periods when no condensate is formed. -
Page 10: Attaching The Ducting
Installation Attaching the Ducting 1. Always use a short piece of insulated flexible duct maximum 150 mm long, extended to its full length when connecting to ductwork. 2. Securely connect the ducting to the spigots using worm-drive clips or suitable plastic ties. -
Page 11: Electrical Installation
Installation Electrical Installation WARNING THE ENSURE THE ELECTRICAL SUPPLY AND CONTROLS ARE ISOLATED FROM THE POWER SUPPLY BEFORE REMOVING ACCESS COVERS Step 1: Remove the outer cover by pressing the tabs either side of the control module and lifting the cover outwards from the bottom edge. -
Page 12: Connect Switches And Sensors
Installation Connecting Switches and Sensors The unit can be switched to boost by applying 240V to the LS input. For good EMC engineering practice, any sensor, switched live or Volt free cables should not be installed within 50mm of other cable or on the same metal cable tray as other cables. Connect any switches or sensors required to control the unit by connecting to the terminal connectors at the bottom of the control unit as shown on the next page in Table 1. - Page 13 Installation Other means of connecting the unit may be used if they meet the local wiring regulations. SEE NOTES ON THE NEXT PAGE Terminal No. Name Description Switched Live 2 220-240 V AC, 50 Hz input Switched Neutral 2 220-240 V AC, 50 Hz input Switch Live Switch Live (Common neutral with Mains Supply) EARTH...
-
Page 14: Connecting The Power Supply And Light Switch
Installation Connecting the Power Supply and Light Switch WARNINGS 1. MAINS SUPPLY VOLTAGES (220-240 V AC) ARE PRESENT IN THIS EQUIPMENT, WHICH MAY CAUSE DEATH OR SERIOUS INJURY BY ELECTRIC SHOCK. ONLY A SUITABLY QUALIFIED PERSON SHOULD CONNECT THE POWER SUPPLY TO THIS UNIT. 2. -
Page 15: Operating And Monitoring
Operating and Monitoring Commissioning Powering up the Unit Switching On To switch the unit on: 1. Switch on the power at the mains supply isolator feeding the unit. 2. Following switch-on, after initialisation (up to 2 minutes) the fan motors will start and the Control Unit will display the home screen. -
Page 16: Overview
Operating and Monitoring Overview The instructions in this section are intended to provide configuration and operation information for setting up the equipment. In the event of problems, see Diagnosing a Problem on page 32. Follow good practice when commissioning the unit. Ensure that the system is installed according to the system designer’s intent incorporating any acoustic ducting, that all joints are airtight, ducting is well supported, bends are avoided close to vents, and that the vent valves are fully open at the start of the commissioning process. - Page 17 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 18 Operating and Monitoring MVHR Installation and User Guide 476930...
-
Page 19: Speed Override
Operating and Monitoring Minimum duration is 15 minutes, 5 minute intervals as you increase duration. After 1 hour duration, interval increases to 15 minutes. 5 speeds to choose from – Starting from Boost > Purge > Max > Trickle > Normal MVHR Installation and User Guide 476930... -
Page 20: Schedule
Operating and Monitoring MVHR Installation and User Guide 476930... -
Page 21: Advance User Menu
Operating and Monitoring MVHR Installation and User Guide 476930... - Page 22 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 23 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 24 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 25 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 26 Operating and Monitoring MVHR Installation and User Guide 476930...
- Page 27 Operating and Monitoring MVHR Installation and User Guide 476930...
-
Page 28: Hmi/Controller Hard Reset
Operating and Monitoring MVHR Installation and User Guide 476930... -
Page 29: Maintenance
Maintenance Operating and Monitoring Filter Maintenance Heat recovery units require regular maintenance. This unit has been designed to facilitate access to enable maintenance to be carried out easily. When the unit displays a warning symbol and warning code: W-12 filter cleaning/replacement is overdue. When it displays notification N-1 the filter may need cleaning/replacement within the next month. -
Page 30: Periodic Maintenace
Maintenance Operating and Monitoring Periodic Maintenance WARNING THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE. Fan Filters Check fan filters as described on the previous page. Heat Exchanger Cell Step 1: Remove the outer cover by pressing the tabs either side of the control module and lifting the cover outwards from the bottom edge. -
Page 31: Spares
Maintenance Operating and Monitoring Spares The following spare parts may be ordered from Vent-Axia: Part No Description 411623 Main PCBA 411622 Control Module (HMI with Display) 472667 Filters G3, 2 per pack 472669 Filters M5, 1 per pack 472671 Filters F7, 1 per pack... -
Page 32: Diagnosing A Problem
Maintenance Operating and Monitoring Diagnosing a Problem In the event of a problem, always troubleshoot the unit according to: Notification code displayed on the control unit. A notification flag indicates service/maintenance will be due soon Warning code displayed on the control unit. ... -
Page 33: Accessories
Accessories Commissioning Accessories • Wired Remote Docking Kit Accessory The Controller Docking Kit has been designed to allow the Controller module to be removed from the MVHR & mounted remotely to a single gang flush mount back-box of 25mm depth (min). The kit is supplied with a 15m lead and control panel blanking cover. -
Page 34: Technical Data
Technical data Commissioning Flow Rate settings The Unit has four (4) user defined speeds, which are adjustable in the advance setting menu or via the App. The mode speed names are customizable via the App. Default speed modes names:- Normal (Unit default operating mode) Boost Purge Frost Protection... -
Page 35: Summer Bypass Mode
Technical data Commissioning Summer Bypass Mode The Sentinel Kinetic Advance includes a Summer Bypass (SBP) feature to bypass the heat exchanger to provide cooling when the desired Indoor Temperature is above the ambient temperature. Note that the volume of air provided by a ventilation system is a fraction of that required for space heating or space cooling and will not in itself be sufficient to cool a room. -
Page 36: Product Dimensions
Technical data Commissioning Product Dimensions Figure 2: Dimensions Remove front cover (see page 11) to view Rating label. (Label is positioned to the right of the controller). MVHR Installation and User Guide 476930... -
Page 37: Default Settings
Technical data Default settings Parameters Settings Commissioning Screens Country United Kingdom Language English. Date Automatic - Factory set Time Automatic GMT/BST - Factory set Unit configuration Right Hand Filter Check 12 months Summer Bypass Normal Mode Names Normal, Boost, Low, Purge User Mode Boost Supply/Extract 50 %... -
Page 38: Product Fiche
Technical data Product fiche Name: Vent-Axia 405215 Advance S 405216 Advance SX Model ID (Stock Ref.) : 476808 Advance Sp LH 476809 Advance Sp RH SEC Class SEC Value ('Average') -43.03 SEC Value ('Warm') -17.88 SEC Value ('Cold') -87.71 Label Required? (Yes/No=Out of scope) - Page 39 MVHR Installation and User Guide 476930...
-
Page 40: Disposal
Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
