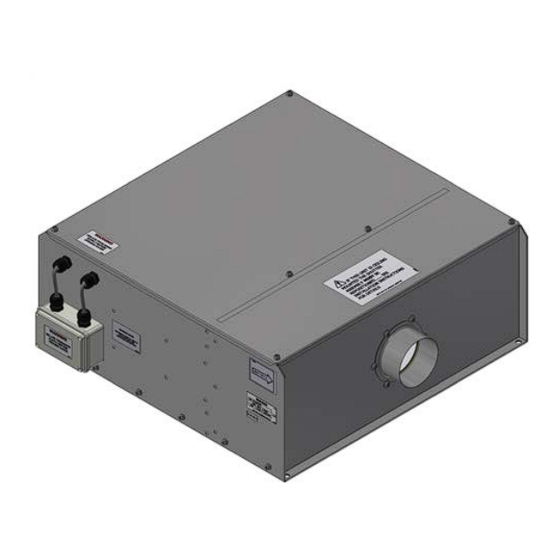

Acoustic Fans
Twin
In-line Duct Fan Range (ATQ)
Installation and Wiring Instructions
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. THESE INSTRUCTIONS SHOULD
BE LEFT WITH THE END USER.
Stock Ref. N°
ATQ10012D
ATQ12512D
ATQ15012D
ATQ16012D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vent-Axia ATQ10012D
Summary of Contents for Vent-Axia ATQ10012D
- Page 1 Acoustic Fans Twin In-line Duct Fan Range (ATQ) Installation and Wiring Instructions Stock Ref. N° ATQ10012D ATQ12512D ATQ15012D ATQ16012D PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. THESE INSTRUCTIONS SHOULD BE LEFT WITH THE END USER.
- Page 2 It may be necessary to take appropriate action to reduce sound levels. A range of products are available for this purpose from Vent-Axia. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or...
- Page 3 3. Plan the installation carefully, taking into consideration the safety points noted above, before securely fixing the fan using appropriate screws, bolts, rubber bushes, etc. 4. A range of accessories is available from Vent-Axia to assist installation including flexible connectors, mounting feet, anti-vibration mounts and attenuators.
- Page 4 Pic. 1: Support bracket used on the ATQ unit. 6. All twin units have a pair of exit airflow gravity shutters fitted which must be orientated correctly to match the floor or ceiling mounting chosen for the installation. As supplied from the factory, the gravity shutters are correctly fitted for floor mounting the unit.
- Page 5 INSTALLER AND ELECTRICAL CONTRACTOR RESPONSIBILITY Vent-Axia Ltd, as suppliers of the equipment cannot be responsible for the final installation and electrical connection of the product on site. We have made reasonable effort to offer guidance...
- Page 6 • To comply with the above statement, this product is intended for use with Vent-Axia controls listed below. Vent-Axia Changeover panel and Speed Controller stock reference numbers:...
- Page 7 Fig. 1 ATQ10012D, ATQ12512D, ATQ15012D, ATQ16012D. Connected to a changeover panel Fig. 2 ATQ10012D, ATQ12512D, ATQ15012D, ATQ16012D. Connected to a changeover panel and auto transformer controller...
- Page 8 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
