LM600
LaundryMate® Valve
Operation & Maintenance Manual
Model Numbers
☐
LM600
LaundryMate® drain box with Valve
Options/Modifications
☐
A
Water hammer arrestor size AA
☐
F
Funnel
☐
P1
Crimp PEX
☐
P2
Cold expansion PEX
Note: Append appropriate -suffix to model number.
Compliance
- ASME A112.18.1/CSA B125.1
- ASSE 1010 (LM600A only)
- NSF 61.9, NSF 372

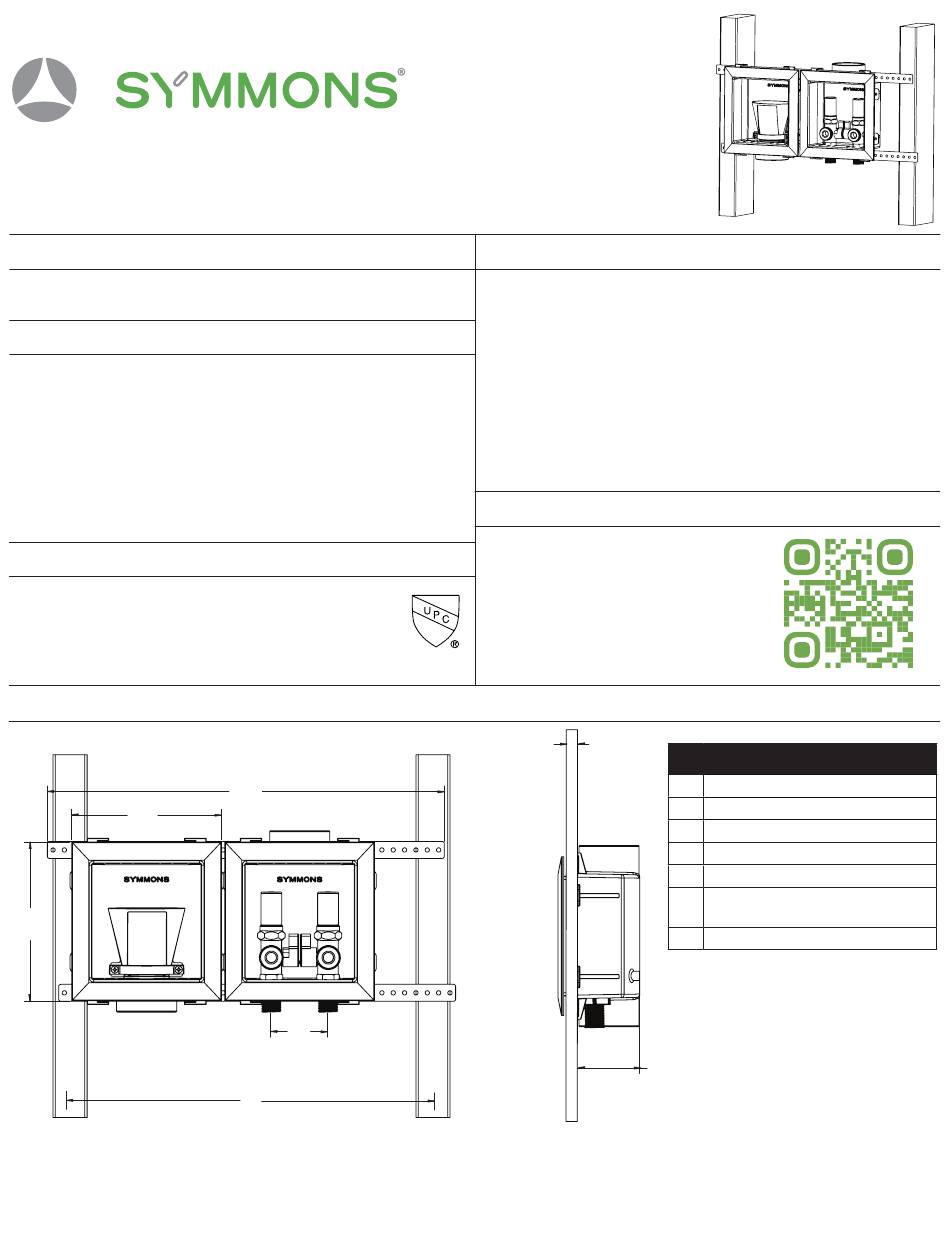

Dimensions
B
A
Note: Dimensions subject to change without notice.
c
C
D
G
LaundryMate ®
Feature Highlights
•
Installation straps for 16" O.C. single stud bay mounting
or direct-to-stud mounting
•
1/2-14 NPSM with 1/2" female sweat inlets, 3/4" male
outlets
•
Valve can be installed as bottom or top supply
•
Accommodates 1 layer of 1/2" drywall up to 2 layers of
5/8" drywall
•
2'' PVC female direct glue drain
•
Mounting straps
•
1/4 turn ball valves with color coded handles
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
F
Measurements
A
7", 178 mm
B
6-5/8", 168 mm
C
17-1/2", 445 mm
D
2 1/2" 64mm
E
2 3/4" 70mm
Min. 1/2", 13 mm
F
Max. 1-1/4", 32 mm
G
16" O.C. REF, 406mm
E
