4-1 RECEIVER CIRCUITS

RF CIRCUITS (RF UNIT)
RX signals from the antenna are sorted by its frequency by
the filters and gone through RF circuits for each bands.
• 76 MHz and below
The RX signals are passed through two LPFs, ANT SW,
band SW and LPF. The RX signals are sorted by its
frequency by band SWs.
• 0.495–29.995 MHz
The RX signals are passed through the band SW (D201)
and LPF, and applied to tuned RF AMP (Q200). The
amplified RX signals are applied to the 1st mixer (IC900) via
two band SWs (D203 and D707).
• 30–75.995 MHz
The RX signals are passed through the band SW (D250) and
tuned BPF, and applied to the RF AMP (Q250). The amplified
RX signals are passed through tuned BPF, then applied to
the 1st IF mixer (IC900) via two band SWs (D256 and D707).
• 76–117.995 MHz
The RX signals are passed through two LPFs, ANT SW, band
SW (D300), LPF and another band SW (D301) in sequence,
then applied to the RF AMP (Q300) via the tuned BPF. The
amplified RX signals are passed through another tuned BPF,
then applied to another RF AMP (Q301). The amplified RX
signals are applied to the 1st mixer (IC900) via two band SWs
(D311 and D707).
• 118–173.995 MHz
The RX signals are passed through two LPFs, ANT SW, and
band SW (D400), then applied to the RF AMP (Q400). The
amplified RX signals are passed through the tuned BPF, and
applied to another RF AMP (Q401). The amplified RX signals
are passed through tuned BPF, then applied to the 1st IF
mixer (IC900) via two band SWs (D405 and D509).

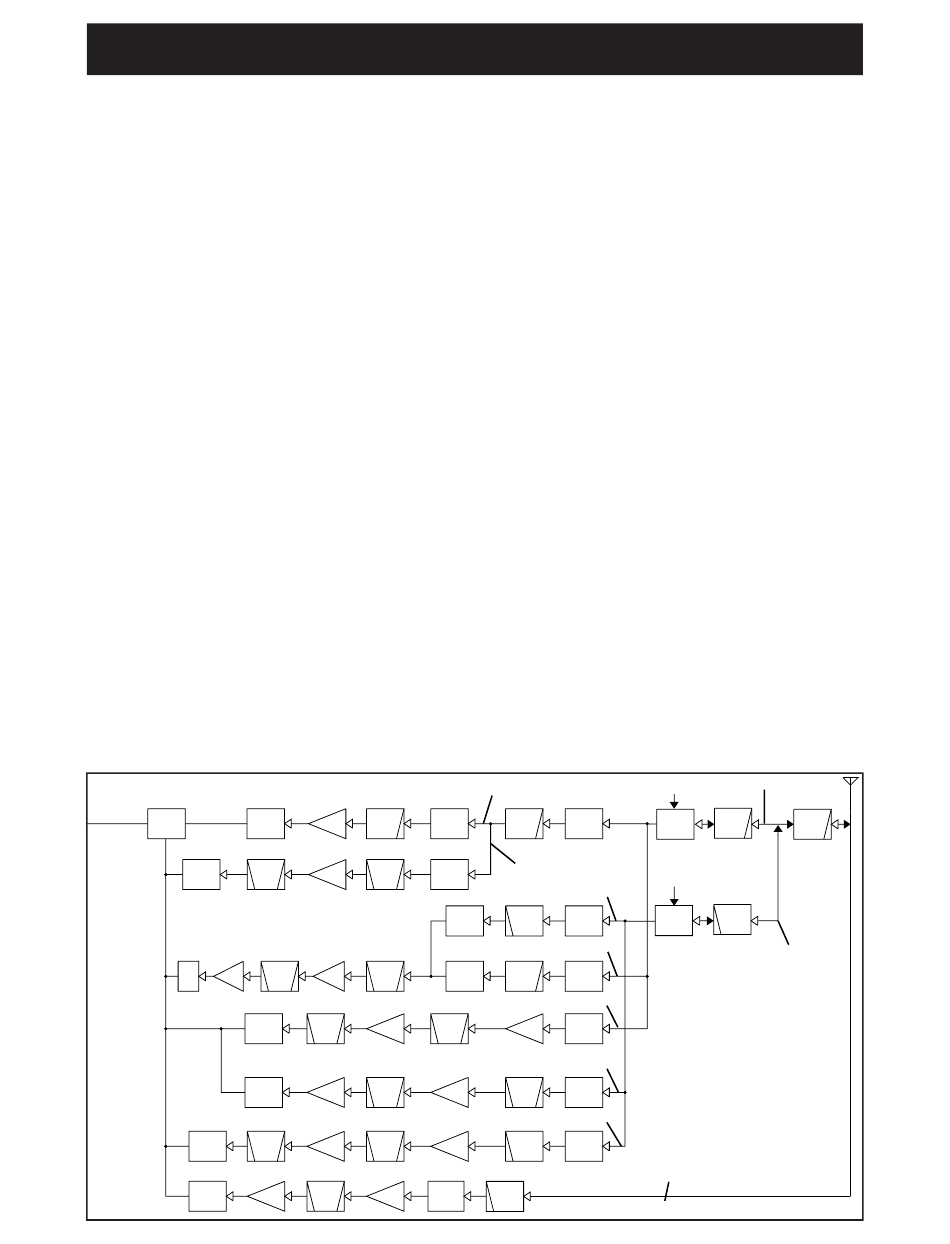

• RF CIRCUITS
To 1st mixer
D203
D203
(IC900)
for A BAND
BAND
BAND
SW
SW
D256
D254,255
BAND
BPF
SW
Q301
D311
D306-309
BAND
RF
SW
AMP
D405
RF
SW
D508
RF
SW
D606
D604,605
BAND
BPF
SW
D706
Q701
BAND
SW
All manuals and user guides at all-guides.com
CIRCUIT DESCRIPTION
L202,203
Q200
C205-9
D201
D202
RF
BAND
LPF
AMP
SW
D251
Q250
D252
D250
D253
RF
BAND
BPF
AMP
SW
Q300
D304,305
D310
RF
BPF
BPF
AMP
Q401
D402,403
D401
D404
RF
BPF
BPF
AMP
Q500
D504,507
Q501
D503
RF
BPF
AMP
Q601
Q600
D601,602
D603
RF
BPF
AMP
Q700
D703,704
D 700
D705
RF
RF
BPF
ATT
AM P
AMP
• 174–259.995 MHz
The RX signals are passed through the LPF, HPF, ANT
SW, ATT, band SW (D302), HPF and another band SW in
sequence, then applied to the RF AMP (Q300) via the tuned
BPF. The amplified RX signals are passed through another
tuned BPF, then applied to another RF AMP (Q301). The
amplified RX signals are applied to the 1st mixer (IC900) via
two band SWs (D311 and D707).
• 260–349.995 MHz and 470–599.995 MHz
The RX signals are passed through the LPF, HPFANT SW,
ATT, BAND SW and tuned BPF in sequence, then applied to
the RF AMP (Q500). The amplified RX signals are passed
through another 2-pole tuned BPF, and applied to another
RF AMP (Q501). The amplified RX signals are then applied
to the 1st mixer (IC900) via two band SWs (D508 and
D707).
• 350–469.995 MHz
The RX signals are passed through the LPF, HPF, ANT
SW, ATT, band SW and HPF in sequence, then applied to
the RF AMP (Q600). The amplified RX signals are passed
through the tuned BPF, and applied to the RF AMP (Q601).
The amplified RX signals are passed through the BPF, then
applied to the 1st mixer (IC900) via two band SWs (D606
and D707).
• 600–999.990 MHz
The RX signals are passed through the HPF, ATT and
applied to the RF AMP (Q700). The amplified RX signals
are passed through the tuned BPF, and applied to another
RF AMP (Q701). The amplified RX signals are applied to
the 1st mixer (IC900) via the band SWs (D706 and D707).
The RF attenuation which reduces RX signal level to –10 dB is
carried out by D5, D9 and D701, by turning these PIN diodes
ON using "ATT" signal.
