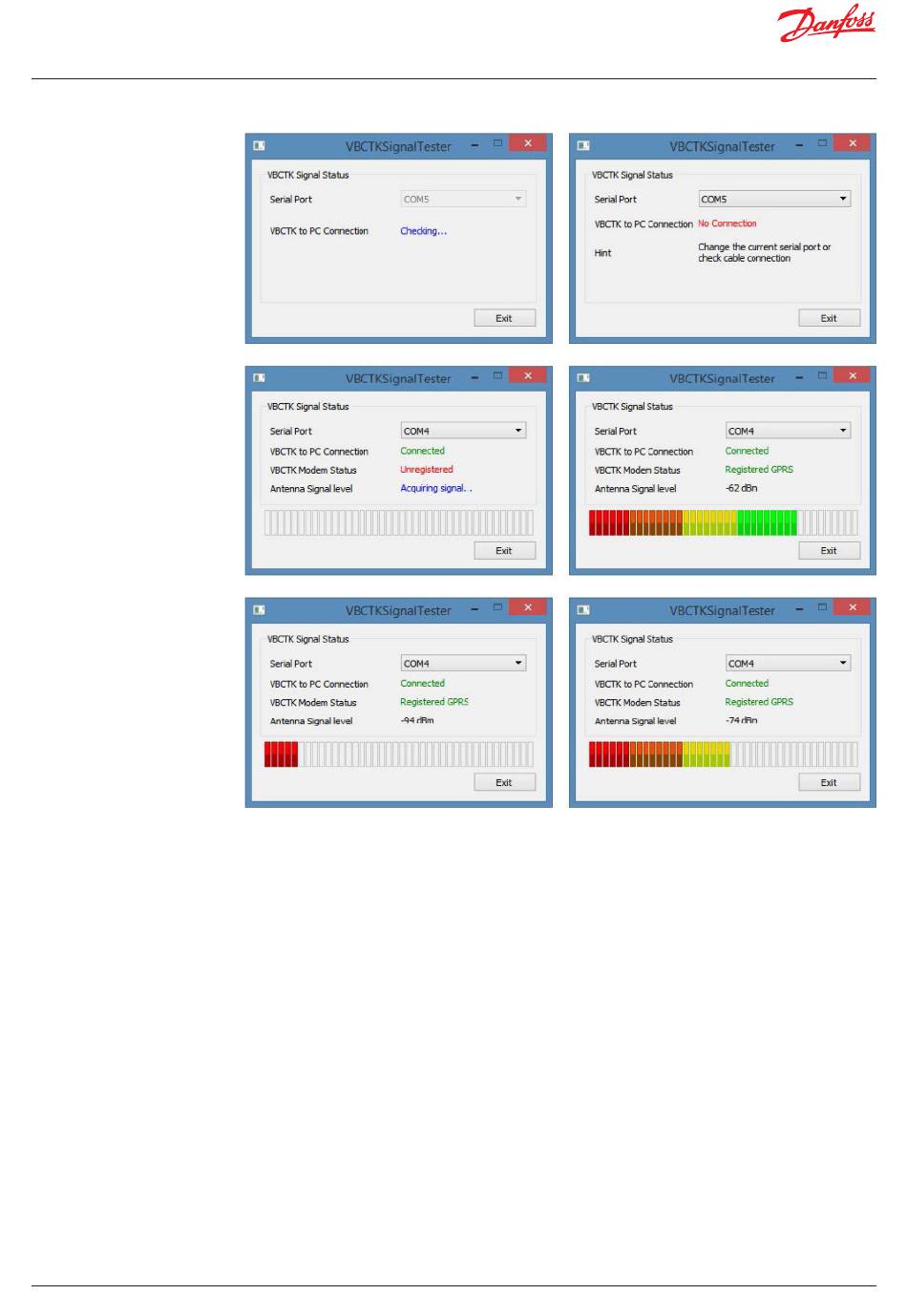

Fig. 6: VBCTKSignalTester application screeeshots.
a.
c.
e.
Once discovered the best position with respect to the Antenna Signal Level, it is possible to decide
if it is the case to protect the Side B (the one with the connectors) of the OCTO. To this aim, it can be
adopted the same approach that the cooler manufacturer uses to protect the connector side of the
electronic thermostat, hence a piece of plastic with an appropriate shape can be used.
If a piece of plastic is not available, a metallic plate can be used but the covered area of the OCTO has
to be as small as possible (the limit should be 5 cm from the front of the OCTO, as illustrated in Fig. 7).
b.
d.
f.
