Futech 150.12.TL Quick Start Manual

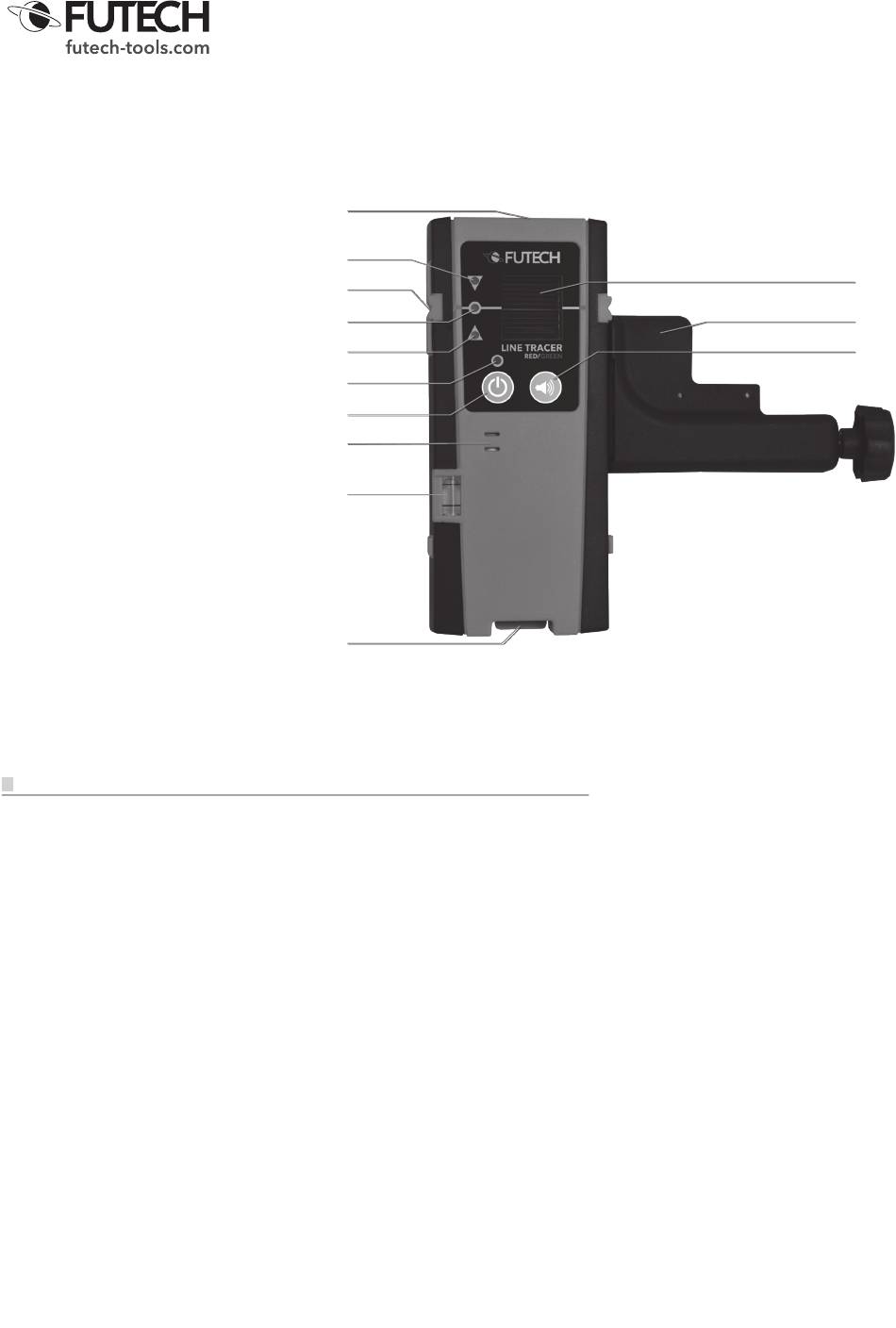

1. Round vial
2. Reception field
3. Orange LED indicator (too high)
4. Green LED indicator (center)
5. Red LED indicator (too low)
6. Center marking
7. Power On/Off button
8. Power indicator LED
9. Sound button
10. Buzzer
11. Long vial
12. Battery cover
13. Clamp

HOW TO USE

Make sure your laserdevice is in laser receiver Mode. read the Manual of your
laserdevice to know how to do it.
· Open the battery cover (12) and place the battery. Pay attention to the polarity.
· Press the Power On/Off button (7) to turn on the device. The power indicator
LED (8) will light up.
· Use the soundbutton (9) to activate or de-activate the buzzer (10).
· Move with your detector to the laserline. When the laser hits the reception field
(2), the related LED light (3, 4 or 5) and, if activated, the buzzer (10) will sound.

LOCATE HORIZONTAL LASERLINES:

· Hold the detector vertically.
· Move the detector up- or downwards while keeping the bubble in the middle
of the round vial (1).
– If the laserbeam hits the receptionfield (2) under the centermarking (6), the
upper orange LED indicator (3) will light up. (If activated, the buzzer (10)
makes a repeating sound.) Move the detector slowly downwards (in the direc-
tion of the arrow around the orange LED indicator (3)) to find the center.
– If the laserbeam hits the receptionfield (2) above the centermarking (6), the
lower red LED indicator (5) will light up. (if activated, a te buzzer (10) makes
a fast repeating sound.) Move the detector upwards (in the direction of the
arrow around the red LED indicator (5)) to find the center.
– If the leaserbeam hits the receptionfield (2) exactly in the center, on the cen-
termarking (6), the middle green LED indicator (4) will light up. (if activated,
the buzzer (9) makes a continious sound.) The centermarking is now exactly
alligned with the laser line.
LINE TRACER RED/GREEN
1
3
6
4
5
8
7
10
11
12
laser receiver
* description Made with the line tracer positioned with
the long vial on the bottoM side.
2
13
9
