Shielding network
19
20
21
22
23

4 Start up

4.1
Switch on
Before turning on the power, please check that the system has been properly installed as required,
including:
a) The instrument shall be mechanically safe and shall be installed in accordance with regulations;
b) The power supply shall be connected according to regulations;
c) The electrical connection wire of the cavity shall be protected, and the cap shall be tightened;
d) Please check whether the running data of the power supply is correct.
4.2
Converter start-up
The measuring instrument is composed of a sensor and a converter and is ready for immediate use
when it is supplied. All operating data is factory set according to your order, please refer to the provided
inspection report for details.
After turning on the power, the flowmeter performs a self-check first. After the self-check, the flow meter
directly starts flow measurement and displays the current measured value.
The detailed information of the flowmeter interface status after startup is shown in Table 4.
Display
①
Real-time flow value and unit
Inlet and outlet temperature
②
values
③
Alarm mark
④
Accumulated of heat quantity
SGND Signal grounding wire
SIG2 Electrode wire
DS2
220V
220V AC power supply access
220V
PE
24V
24V DC power supply access
24V
①
②

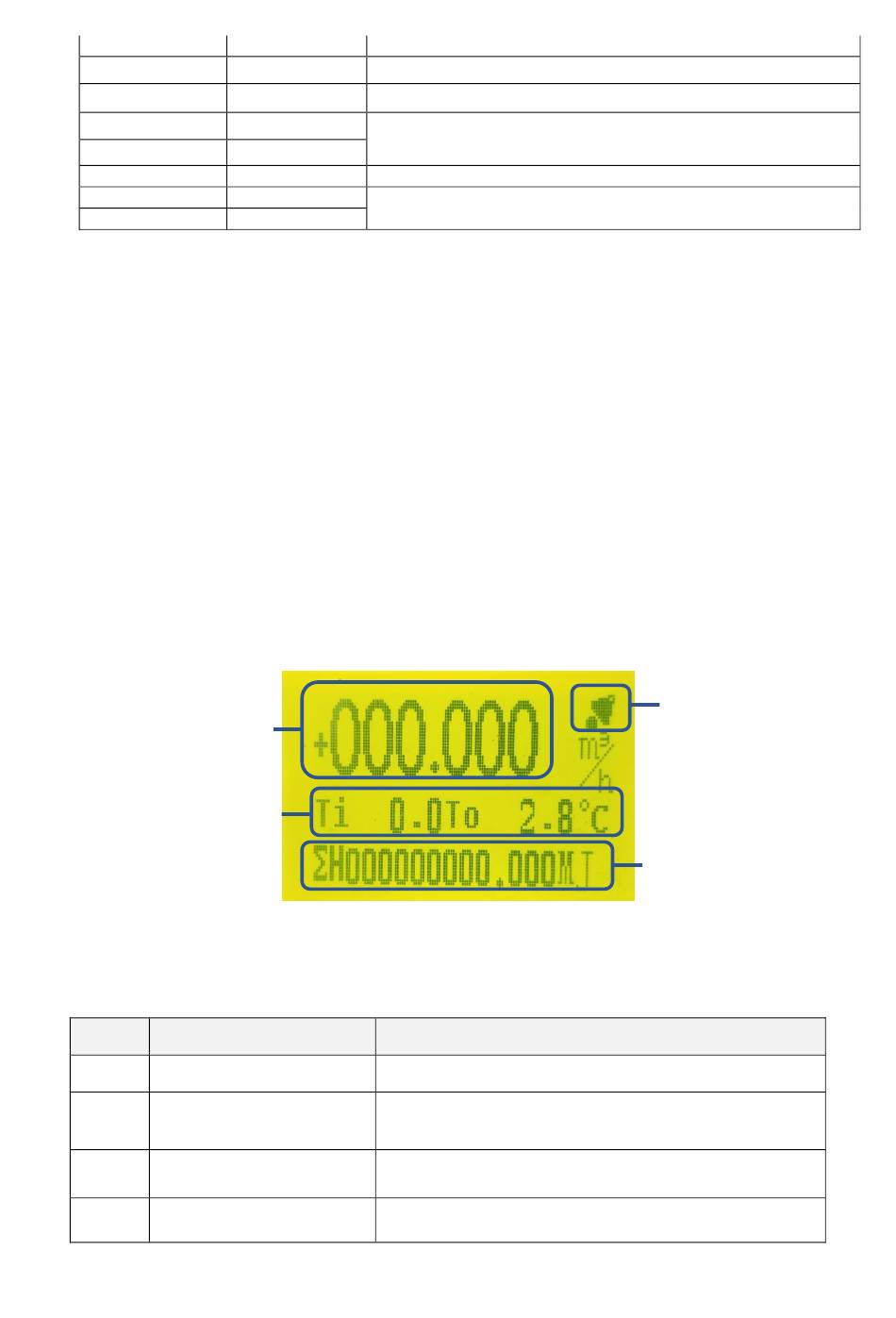

Figure 3 Main interface of flow meter
Description
Null
The display can be switched through the down key: flow
percentage, resistance value, temperature difference, flow rate
System alarm, you can check the alarm content by up key
Accumulated heat, accumulated flow, and view specific alarm
content through the up key
Table 4
Reuse content
