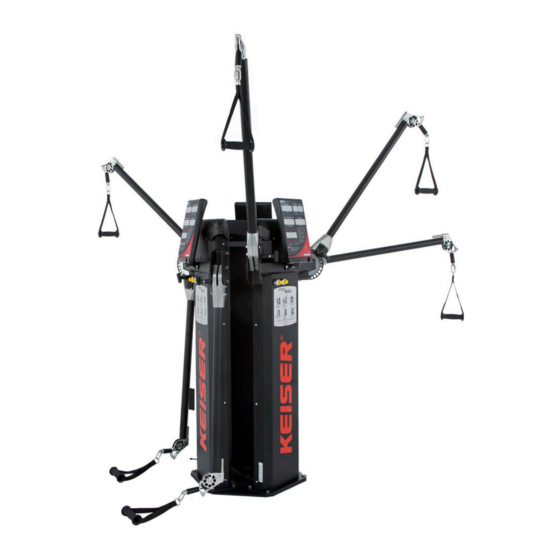

Keiser INFINITY Series Installation Instructions Manual
Triple trainer bolt-down base
Hide thumbs
Also See for INFINITY Series:
- Operation & maintenance manual (16 pages) ,
- Installation instructions manual (12 pages) ,
- Operation manual (16 pages)
Advertisement
Quick Links
MODELS 3020XA, XP, XS
with Bolt-down Base
3031X FLOOR MOUNT PLATE
BEFORE YOU BEGIN
• Ensure a site survey for equipment installation has
been performed.
• Observe all governing codes and ordinances.
• Proper installation is the responsibility of the installer.
• Note to Installer: Be sure to leave Installation
Instructions and Operation Manual with the customer.
• Note to Customer: Keep Installation Instructions and
Operation Manual for future reference.
• Skill level: Professional installation is required by
qualified personnel as dictated by authority having
jurisdiction.
Product failure due to improper installation is not covered under
warranty.
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
CUSTOMER SUPPORT
If you have any questions regarding the installation or
operation of the Triple Trainer after reading this manual,
contact Keiser Customer Support:
1 559 256 8000
service@keiser.com
keiser.com/support
Telephone and Live Chat
Monday—Friday 9 am to 5 pm PST
Keiser, the Keiser logo, and other trademarks associated with Keiser products referred to in this publication are trademarks of Keiser Corporation.
© Copyright 2020, Keiser Corporation. All rights reserved.
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Keiser Corporation. The content
of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Keiser Corporation.
Every effort has been made to ensure that the information in this manual is accurate. Keiser Corporation is not responsible for printing or clerical errors.
305522_B
INSTALLATION INSTRUCTIONS
INFINITY SERIES
TRIPLE TRAINER
BOLT-DOWN BASE
KEISER CORPORATION
2470 S. Cherry Ave.
Fresno, CA 93706
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Keiser INFINITY Series
Summary of Contents for Keiser INFINITY Series
- Page 1 Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Keiser Corporation. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Keiser Corporation.
- Page 2 INSTALLATION INSTRUCTIONS TRIPLE TRAINER CONTENTS 03 — IMPORTANT SAFETY INFORMATION 04 — EQUIPMENT SPECIFICATIONS 04_TRAINING SPACE 05 — SECURING THE TRIPLE TRAINER 05_INSTALLATION OPTIONS 05_MOUNTING REQUIREMENTS 06 — INSTALLATION 06_TOOLS AND MATERIALS 06_UNPACKING 07_PARTS LIST 08_STEP-BY-STEP INSTALLATION GUIDE 11_AIR SYSTEM SETUP & FINAL INSTALLATION 11 —...
-
Page 3: Important Safety Information
15. Crush Hazard: Keep feet clear when handling the Floor Mount Plate and/or the Functional Trainer. 16. Never connect Keiser pneumatic equipment to an air source that is capable of exceeding 120 pounds per square inch (psi) / 8.27 bar. Over pressurizing Keiser pneumatic equipment may cause tubing to burst, breakage of equipment, abnormal operation, or serious injury. -
Page 4: Equipment Specifications
INSTALLATION INSTRUCTIONS TRIPLE TRAINER EQUIPMENT SPECIFICATIONS FLOOR MOUNT PLATE TRIPLE TRAINER 89 inches (TOP VIEW) (2,261 mm) Mount Holes 59 inches Dia.: 0.5 inch (1,499 mm) (13 mm) 22.6 inches (574 mm) 91 inches 96 inches (2,312 mm) (2,439 mm) 25.14 inches (638.56 mm) 350 lbs... -
Page 5: Installation Options
Professional installation required. It is the responsibility of the facility owner to adhere to local and regional building codes. INSTALLATION OPTIONS • Keiser Professional Installation Service. A trained technician from Keiser’s installation network will perform the installation. • Choose Your Own Professional Installation Service. Keiser Installation Instructions provide detailed instructions on how to install the equipment into solid concrete, along with information on the proper tools and anchors required. - Page 6 INSTALLATION INSTRUCTIONS TRIPLE TRAINER INSTALLATION TOOLS AND MATERIALS Safety High-Quality Floor/Wall Tape Hammer Drill Drill with 1-inch Hole Saw Glasses Scanner (recommended) Measure with Dust Collection System (recommended for 3/8x6-in. Masonry Bit covered floors) Wire HEPA 3/8 in. 9/16 in. Torque Wrench Tube Brush Vacuum...
-
Page 7: Parts List
Screw (3/8-16x3/4 in.) 9200 Screw (1/4-20x3/8 in.) 9267 Triple Trainer Bracket* 301805 Check for any damage or missing parts. If parts are damaged or missing, contact your local dealer, distributor, or Keiser Customer Support (see front cover for contact information). - Page 8 INSTALLATION INSTRUCTIONS TRIPLE TRAINER STEP-BY-STEP INSTALLATION GUIDE CONCRETE, CONCRETE WEAR SAFETY FLOORING UP TO WITH FLOORING GLASSES 5/8” (16 mm) OVER 5/8” (16 mm) Floor Mount 1” (25.4 mm) Plate dia. hole cut 3/8” dia. in Flooring Drill length 4” (102 mm) of Anchor 1/2”...
- Page 9 INSTALLATION INSTRUCTIONS TRIPLE TRAINER STEP-BY-STEP INSTALLATION GUIDE CONCRETE WITH FLOORING CONCRETE Spacers Floor Mount Plate Floor Mount Plate Flooring Concrete Concrete Screw Anchor Screw Anchor INSTALL FLOOR MOUNT PLATE (QUANTITY 3 CONCRETE SCREWS) • Recommended: Apply adhesive directly onto Screw Anchor leading threads. •...
- Page 10 INSTALLATION INSTRUCTIONS TRIPLE TRAINER STEP-BY-STEP INSTALLATION GUIDE Remove x2 Install x2 1/4-20x1/4 in. Phillips Screws 1/4-20x3/8 in. Phillips Screws BRACKET INSTALLATION PREPARATION BRACKET INSTALLATION Position the Bracket, hooks pointing down, and align • Remove the top two 1/4-20x1/4 inch Phillips Screws along the sides of the Functional Trainer units using a mount holes as shown.
- Page 11 WARNING: Never connect Keiser pneumatic equipment to an air source that is capable of exceeding 120 psi / 8.27 bar. Over pressurizing Keiser pneumatic equipment may cause tubing to burst, breakage of equipment, abnormal operation, or serious injury.
- Page 12 INSTALLATION INSTRUCTIONS TRIPLE TRAINER CUSTOMER SUPPORT If you have any questions regarding the installation or operation of the Triple Trainer after reading this manual, contact Keiser Customer Support: KEISER CORPORATION 1 559 256 8000 2470 S. Cherry Ave. service@keiser.com Fresno, CA 93706 keiser.com/support...
