Start Up - Danfoss Ikargo1 User Manual

User Manual
Ikargo1 Transmitter
Technical description
IKARGO start up
EEPROM
module
BT11K
Display
crane ??
Pulso LED
ikargo
EEPROM
module
BT11K
Display
crane ??
Pulso LED
ikargo
© Danfoss | February 2021

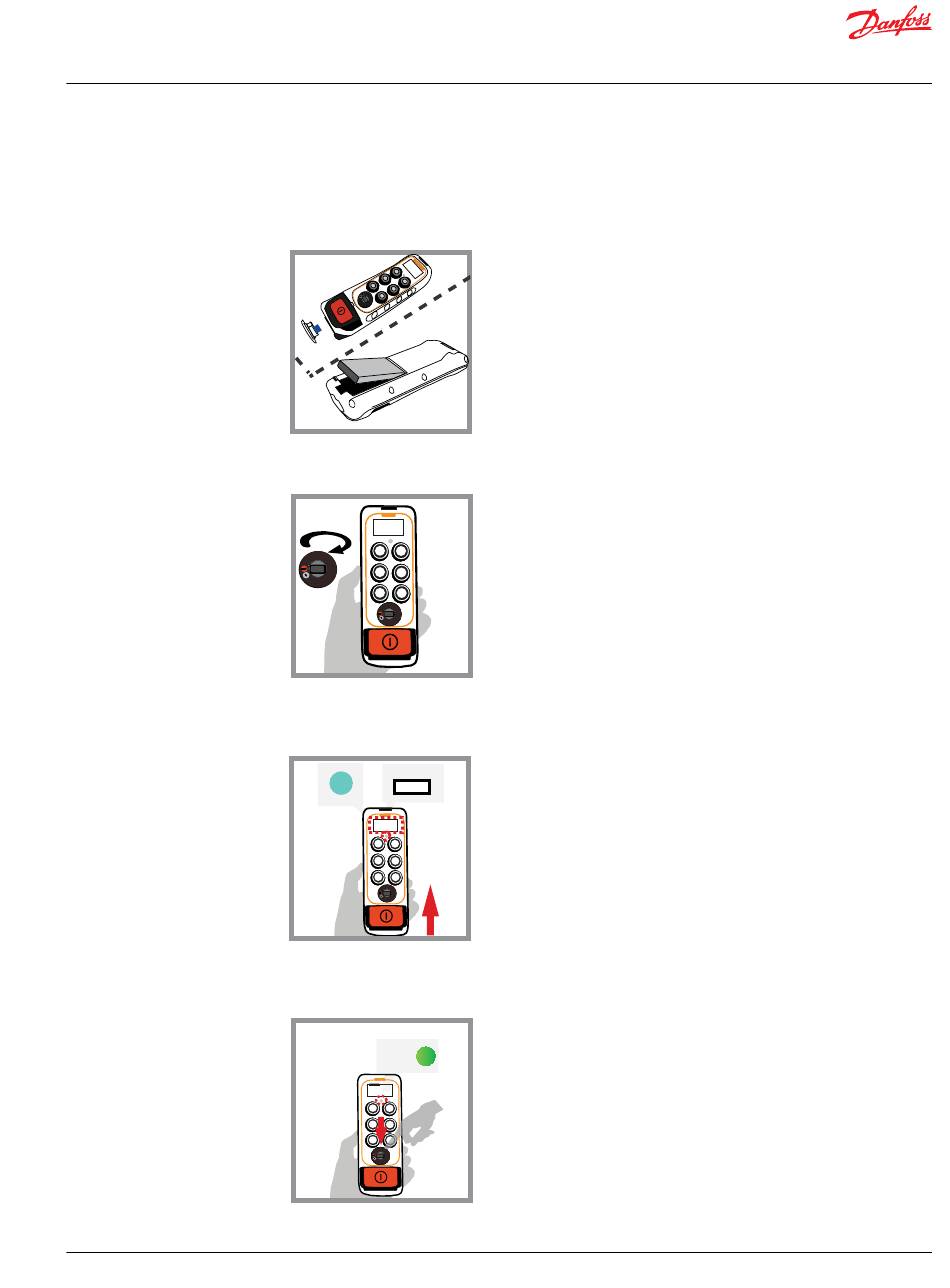

In order to turn the transmitter on (OPERATION mode), follow the next steps.
1. Insert the charged BT11K battery model in the transmitter and ensure the EEPROM module is in place.
The battery must be charged according to the charger manual's instruction.
EEPROM
module
BT11K
2. Turn the multi-key from the "0" position to the "1" position.
The multi-key cannot be removed while in the "1" position.
Display
ikargo
crane ??
Pulso LED
ikargo
EEPROM
module
BT11K
3. Push and pull out the stop button.
The LED will blink in blue-green colors and the battery level will appear in the display. It is
recommended to introduce the machine identifier (example: EOT crane number).
LED pulse
Display
crane ??
ikargo
Pulso LED
ikargo
ikargo
4. Press START with the multi-key until the radio link is performed.
The LED color will turn green to indicate that the transmitter and receiver link is confirmed. After
confirmation, press the maneuver buttons to verify corresponding movements.
LED pulse
ikargo
ikargo
LED pulse
ikargo
ikargo
LED pulse
ikargo
BC295377198224en-000102 | 7
