– INSTRUCTION MANUAL –
ARCS SHADE
DESIGN BY MULLER VAN SEVEREN

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARCS SHADE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hay ARCS SHADE

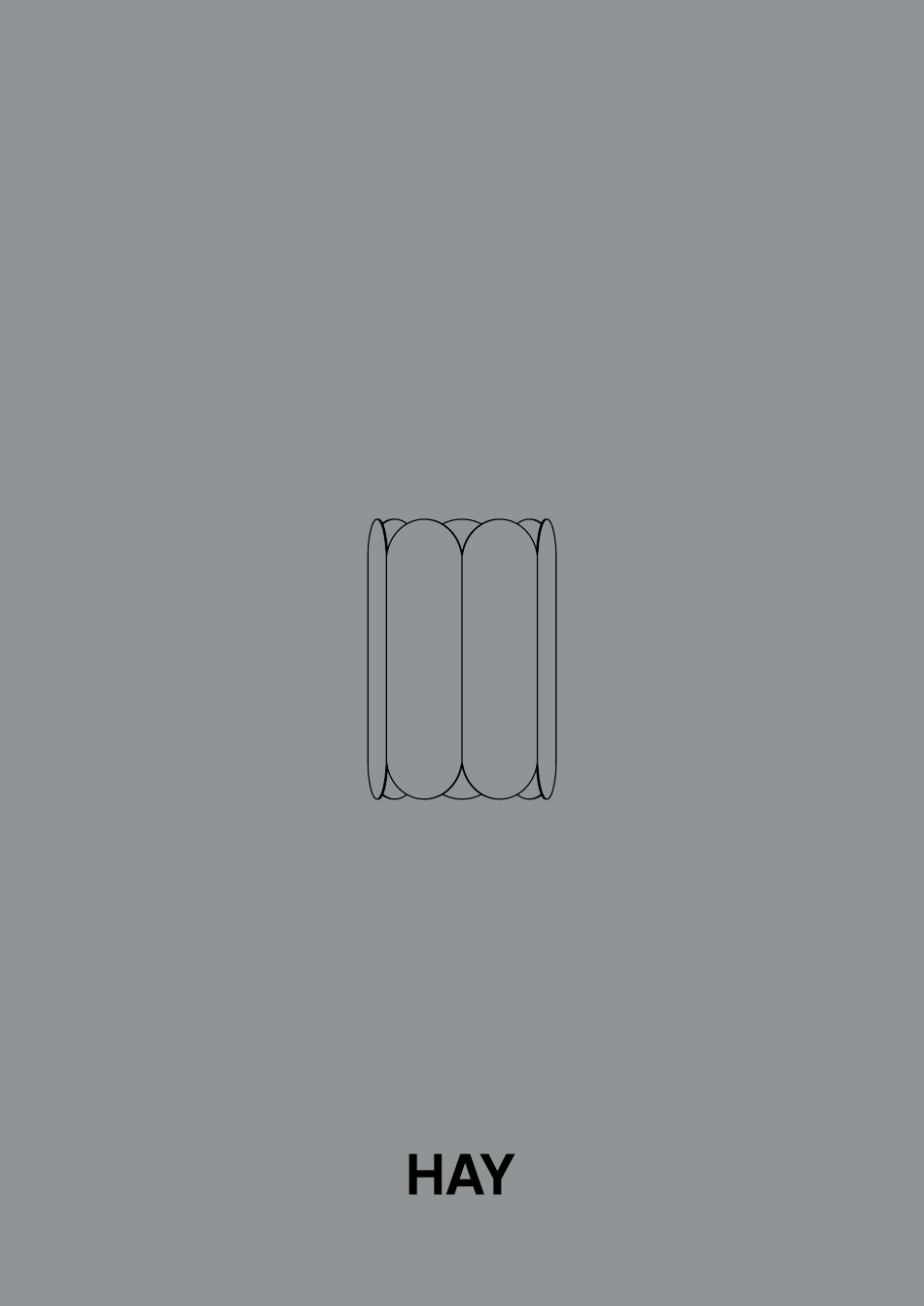

  • Page 1 – INSTRUCTION MANUAL – ARCS SHADE DESIGN BY MULLER VAN SEVEREN...
  • Page 3 HAY by Belgian duo Muller Van Severen. Formed from a continuous chain of curved arches that form a single element, the Arcs Shade creates a spatial volume that plays with light and shape. The shade can be used as a table lamp or pendant lamp suspended...
  • Page 4: Care And Maintenance

    NOTE: If you are using this shade in conjunction with a HAY Cord set, please follow the instructions that have been provided with it for safe installation. Arcs Shade is designed to be used with LED-based light sources only.
  • Page 5 – PARTS – Shade The Arcs Shade works either as a pendant or a table lamp, depending on your chosen E26/E27 cord set. Cord sets and LED bulbs are sold separately from the shades.
  • Page 6 Unscrew and remove the ring from the bulb holder of your chosen cord set. Place the shade over the bulb holder with the bottom of the base facing downwards.
  • Page 7 Insert the bulb holder through the central hole in the base plate and clamp it in place by screwing the ring back onto the bulb holder. Take care to fasten the ring securely, especially if you are using the shade with the pendant cord set.
  • Page 8 Screw an LED light bulb into the bulb holder. Ensure the electricity is switched off before fitting the bulb to avoid damaging it.
  • Page 9 The Arcs Shade is now ready for use.
  • Page 12 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com 711 Canal St. 3rd Floor Stamford CT 06902 United States www.hay.com 14/12/2020...
