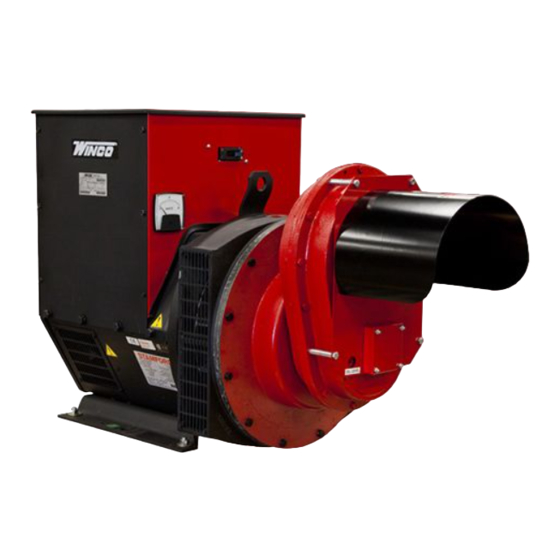

W70PTO &
W70PTOS
GENERATORS
INSTALLATION & OPERATORS
MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us concerning this unit, it will
help us to respond to your needs faster.
MODEL __________________________________________________
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Related Manuals for Winco W70PTOS
Summary of Contents for Winco W70PTOS
- Page 1 MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this manual. START UP The warranty listed in the manual describes what you can SHUTDOWN expect from WINCO should you need service assistance in MAINTENANCE the future. GENERAL PERIODICAL MAINTENANCE LUBRICATION CLEANING &... -
Page 3: Safety
SAFETY IMPORTANT SAFETY INSTRUCTIONS CAUTION This engine generator set has been designed and Keep the generator and surrounding area clean. manufactured to allow safe, reliable performance. Poor maintenance, improper or careless use can result in A. Remove all grease, ice, snow or materials that create potentially deadly hazards;... -
Page 4: Specifications
Phase Single Amps Power Factor Input Speed 540 RPM Generator Speed 1800 RPM Input Shaft 1 3/4” - 20 Spline Required Tractor PTO HP W70PTOS Continuous Watts 69,000 Volts 120/240 Phase Single Amps Power Factor Input Speed 1000 RPM Generator Speed... -
Page 5: Introduction
If any damage is noted, it is always easiest to by the manufacturer of applicable engines. refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the The WINCO power take-off generators are designed... -
Page 6: Installation
INSTALLATION Note: PTO mounting holes are .75”. WARNING: PERSONAL INJURY & EQUIPMENT DAMAGE FOUNDATION MOUNTING Trailer may tip over and cause injuries if wheels are not spaced far enough apart. Mount the generator on a foundation if it is to be used as a permanent or standby power source. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS CAUTION: RECOMMENDED CONTACTS Only qualified electricians should install electric wiring. VOLTAGE WIRE INCLUDED Wiring must conform to all applicable national, state, 120/240 1-PH 1/0 & 1/0 to #1 and local codes. (Reference: National Fire Protection Association Manual No. 70, National Electrical Code.) DANGER: PERSONAL INJURY If the generator is to be used as a standby power source, a special disconnect switch must be installed to separate the... -
Page 8: Typical Connection Methods For Generator Power Service
TYPICAL CONNECTION METHODS FOR GENERATOR POWER SERVICE IMPORTANT: When making standby service hook up, make sure load to be transferred to standby generator will not exceed generator rating. TYPICAL HOOK UP FOR TYPICAL HOOK UP FOR SUPPLYING ALL CIRCUITS SUPPLYING ONLY ESSENTIAL CIRCUITS WITH EMERGENCY POWER WITH EMERGENCY POWER To Power Line Master Switch... -
Page 9: Operation
OPERATION OUTPUT POWER AVAILABLE AND LOAD DETERMINATION Before using the generator, read and understand the following information. Generator output current (amperage) is internally limited by three circuit breakers. If too much demand is placed on a generator output (if you try to drive too many motors with it, for example), one of the circuit breakers will trip, cutting off the output in order to protect the generator. -
Page 10: Pre-Start Checks
3. With engine idling, engage the power take-off drive. generator output voltage to flicker. Drive shafts shipped age to flicker. Drive shafts shipped new from Winco are al- new from WINCO are always synchronized and tethered ways synchronized and tethered so they can not be taken 4. -
Page 11: Generator Procedures
GENERATOR PROCEDURES START UP 1. Set the manual transfer to mid or normal (up) position. 2. With the power take-off drive disengaged, start the engine which will drive the generator. Run the engine long enough to warm it up before proceeding, so that it will run smoothly and achieve full power under generator load. -
Page 12: Maintenance
Fine metal dust in the oil does not indicate trouble, The splined generator input shaft should be cleaned and chips do. Dismantle the gear case and look for dam lubricated with a thin film of grease before and after each use gears if you find metal chips in the oil. -
Page 13: Cleaning & Inspection
CLEANING & INSPECTION Use a vacuum cleaner or dry low pressure compressed air (regulated at 25-35 PSI) to clean the generator periodically. WARNING: Do NOT clean the generator while it is running. Proceed as follows: 1. Remove control box cover. Vacuum or blow dust or debris from the control box. -
Page 14: Trouble Shooting Tables
TROUBLE SHOOTING TABLES SYMPTOM CAUSE(S) CORRECTIVE ACTION No output voltage 1. Circuit breaker open 1. Reset circuit breakers, replace if defective 2. Defective frequency meter 2. Check output with another meter, replace meter if 3. Short circuit in the load defective. -
Page 15: Wiring Diagram
WIRING DIAGRAM 9 ÿ 9 BACK VIEW ÿ ! ÿ # $% ÿ &' ( ) 0 1 2 0 34 5 6 37 8 6 9 ÿ OPM-142/D... -
Page 16: Limited Warranty
LIMITED WARRANTY 36 MONTH LIMITED WARRANTY WINCO, Inc., warrants for thirty-six months from date of shipment, that it will repair or replace at its option, for the original user, the whole or any part of the product found upon examination,...
