Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCCRL-08-BL

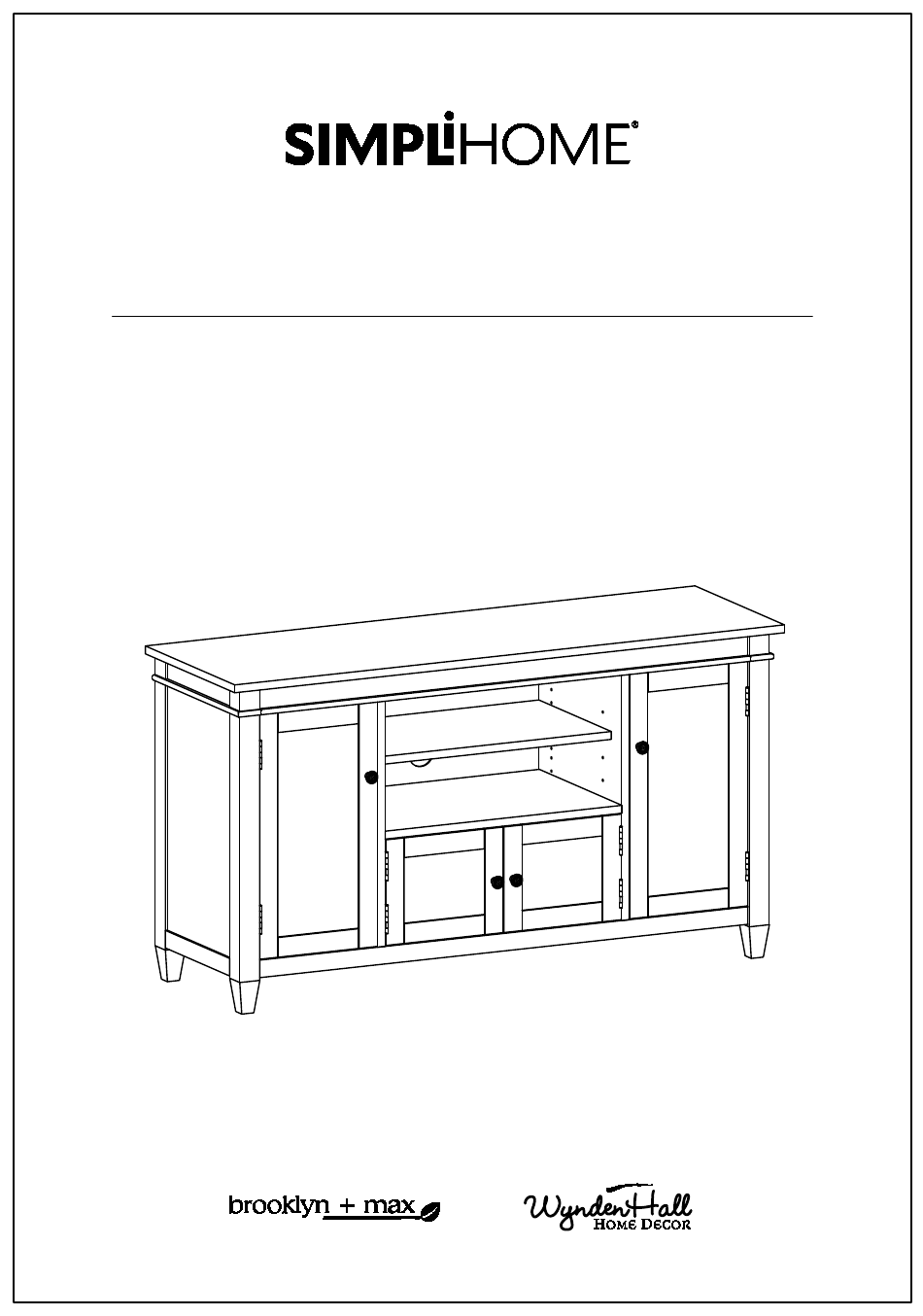

- Page 1 Carlton / Richland / Sterling TV Media Stand Model # AXCCRL-08-BL...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 200 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. - Page 8 Pre-Assembly Information Model # AXCCRL-08-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM PANEL LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 TOP SHELF LEFT CABINET SHELF RIGHT CABINET SHELF QTY 1 QTY 1 QTY 1...
- Page 9 Pre-Assembly Information Model # AXCCRL-08-BL Part Description CABINET SHELF LEFT LARGE DOOR SMALL DOOR (L&R Same) QTY 1 QTY 1 QTY 2 Warning Label LEFT BACK PANEL RIGHT BACK PANEL RIGHT LARGE DOOR QTY 1 QTY 1 QTY 1 TOP BACK PANEL BOTTOM BACK PANEL FRONT BAR QTY 1...
- Page 10 Pre-Assembly Information Model # AXCCRL-08-BL Hardware Description CAM LOCK PIN ALLEN KEY SCREW M6 X 30mm CAM LOCK ALLEN KEY QTY 13 SETS QTY 18 QTY 1 PHILLIPS SCREW HANDLE ROUND HEAD WOOD DOWEL M4 X 25 mm M4 X 15mm Ø8 X 30mm QTY 4 SETS QTY 34...
- Page 11 Components - Key Diagram Model # AXCCRL-08-BL...
- Page 12 Assembly Model # AXCCRL-08-BL Step 1 1. Attach three Cam Lock Pins 2 to each Divider CL , CR using guide holes. 2. Align Cam Lock Pins 2 into pre-drilled hole on Top Shelf E . 3. Insert Cam Locks 2 into pre-drilled hole on Top Shelf E . 4.
- Page 13 Assembly Model # AXCCRL-08-BL Step 2 1. Attach Dividers CL , CR to Bottom Panel D with Allen Key Screws 1 through pre-drilles holes. 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 14 Assembly Model # AXCCRL-08-BL Step 3 1. Insert Wood Dowels 6 into pre-drilled holes of Bottom Panel D and Front Bar K . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/3 length of dowels should be exposed. 3.
- Page 15 Assembly Model # AXCCRL-08-BL Step 4...
- Page 16 Assembly Model # AXCCRL-08-BL Step 5 Warning Label Note: 1. Attach Back Panels JL , JR , J1 , J2 to back of TV Stand using Phillips Screws Round Head 5 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws.
- Page 17 Assembly Model # AXCCRL-08-BL Step 6 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors H , IL , IR to Sides BL , BR and Dividers CL , CR using Phillips Screws 10 into pre-drill holes: - Using Phillips screwdriver to attach Screws 10 at middle hole of hinges for both top &...
- Page 18 Assembly Model # AXCCRL-08-BL Step 7 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 7 to Bottom corner of Doors IL , IR and H using Phillips Screws 9 into guide holes on Doors IL , IR and H . 2.
- Page 19 Assembly Model # AXCCRL-08-BL Step 8 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each shelf FL , FR and G in desired location. 2. Two Shelf Supports 8 may be used on back top of each Shelf FL , FR and G as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
