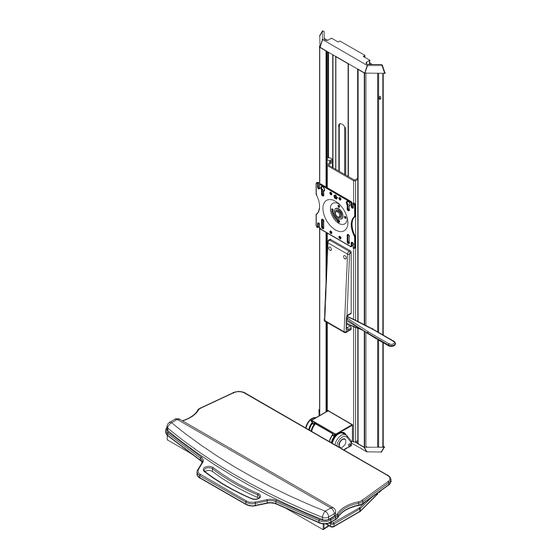

PEERLESS HCW101 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HCW101
15 lb
MAX
(6.8 kg)
ENG
ESP
FRN
FXTM181 - Rev A
1
2012-09-19
#:203-9218-7 (2013-10-03)

Advertisement

loading

Related Manuals for PEERLESS HCW101

Summary of Contents for PEERLESS HCW101

  • Page 1 HCW101 15 lb (6.8 kg) FXTM181 - Rev A 2012-09-19 #:203-9218-7 (2013-10-03)
  • Page 2 Tenga cuidado de no pillarse los dedos al abrir y cerrar desde el soporte de pared. Si necesita ayuda, por favor, llame a Servicio al Cliente de Peerless al 1-800-865-2112.
  • Page 3 Tools Needed for Assembly. Herramientas necesarias para el ensamblaje. Outils nécessaires au montage. To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. Apriete adecuado de los tornillos: Apriete hasta que la cabeza del tornillo haga contacto y luego apriete otra 1/2 vuelta.
  • Page 4 Parts (Before beginning, make sure you have all parts shown below). Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes). Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous). A (1) B (1) F (4) G (4) wall mount console M4 x 12mm...
  • Page 5 Metal studs or drywall. Postes de metal o pan- eles de yeso. Poteaux métalliques ou des plaques de plâtre. Level wallplate. Mark mounting holes. 1/2" Marque los orifi cios de montaje. (13mm) Marquez les trous de fi xation. Metal studs or drywall. Postes de metal o paneles de yeso.
  • Page 6 Level wallplate. Install using screws provided. Nivele e instale. Mettez à niveau et procédez au montage. E (10) Maximum 80 in. • lb (9 N.M.). Máxima 80 in. • lb (9 N.M.). Maximum 80 in. • lb (9 N.M.). FXTM181 - Rev A 2012-09-19 #:203-9218-7 (2013-10-03)
  • Page 7 J (1) N (2) FXTM181 - Rev A 2012-09-19 #:203-9218-7 (2013-10-03)
  • Page 8 Screws must get at least three full turns and fi t snug. Los tornillos tienen que dar, por lo menos, tres vueltas completas y quedar ajustados. Il faut effectuer au moins trois tours de vis complets et bien serrer les vis. F,G (4) Install adhesive pads for keyboard.
  • Page 9 Cable management. Manejo de cables. Gestion des câbles. L (2) FXTM181 - Rev A 2012-09-19 #:203-9218-7 (2013-10-03)
  • Page 10 N (2) OPTIONAL: Height adjustment. OPCIONAL: Ajuste de la altura. FACULTATIF: réglage de la hauteur. FXTM181 - Rev A 2012-09-19 #:203-9218-7 (2013-10-03)

  • Page 11: Limited Five-Year Warranty

    Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you. This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.
  • Page 12 Peerless Industries 2300 White Oak Circle Aurora, IL 60502 Email: tech@peerlessmounts.com Ph: (800) 865-2112 Fax: (800) 359-6500 www.peerless-av.com © 2013, Peerless Industries, Inc.
