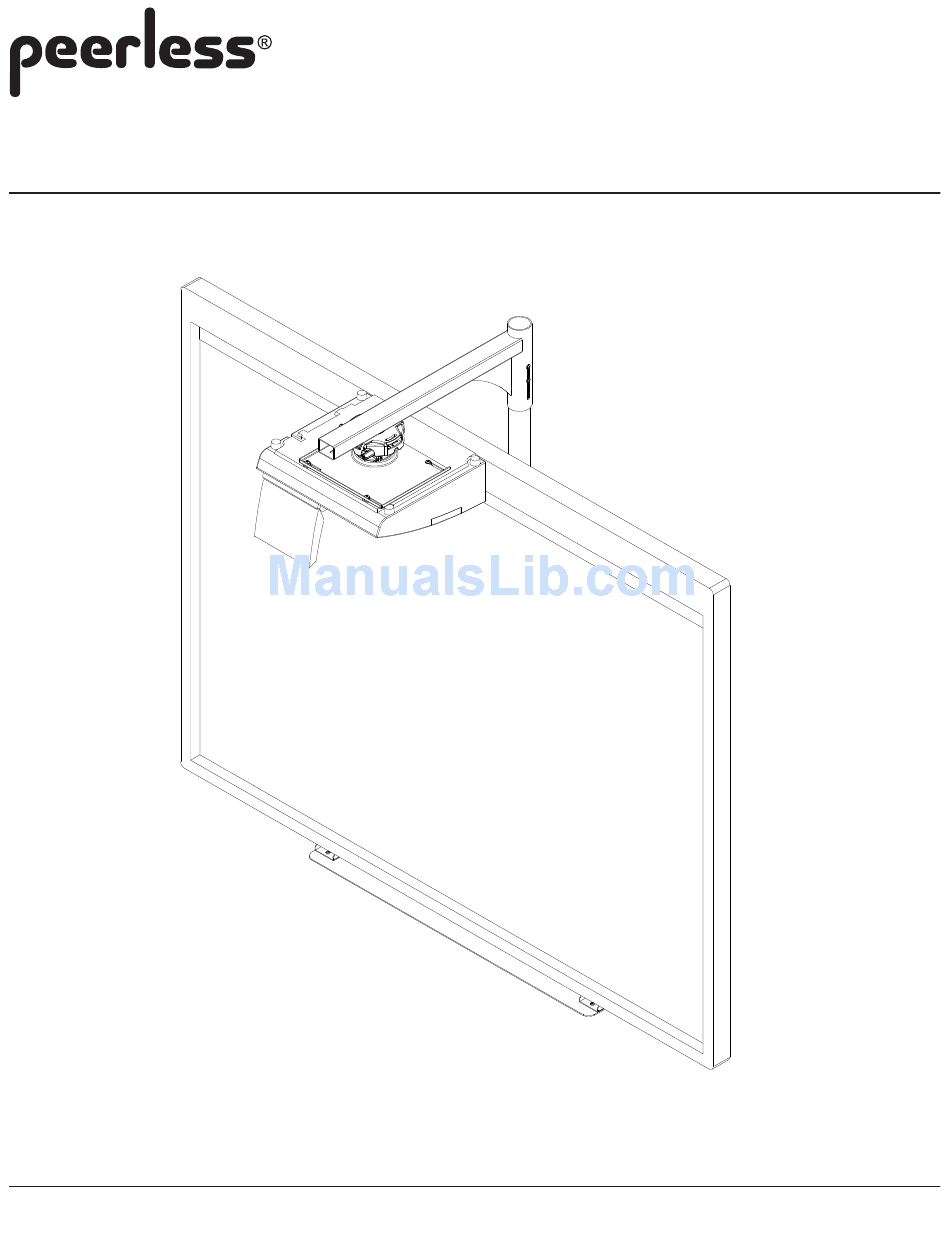

Installation and Assembly: Wallmount for CPA100 and
Whiteboard
Model: A100IWBMOUNT
Maximum Load Capacity for Screen: 53 lb (24 kg)
Maximum Load Capacity for Projector : 13.5 lb (6 kg)
1 of 16
ISSUED: 04-08-08 SHEET #: 055-9094-2 06-06-08
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
Visit the Peerless Web Site at www.peerlessmounts.com
For customer care call 1-800-865-2112 or 708-865-8870.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEERLESS A100IWBMOUNT and is the answer not in the manual?

Questions and answers

Related Manuals for PEERLESS PEERLESS A100IWBMOUNT

Summary of Contents for PEERLESS PEERLESS A100IWBMOUNT

  • Page 1 Installation and Assembly: Wallmount for CPA100 and Whiteboard Model: A100IWBMOUNT Maximum Load Capacity for Screen: 53 lb (24 kg) Maximum Load Capacity for Projector : 13.5 lb (6 kg) 1 of 16 ISSUED: 04-08-08 SHEET #: 055-9094-2 06-06-08 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.

  • Page 2: Wall Construction

    NOTE: Read entire instruction sheet before you start installation and assembly. • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.

  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts List Description A wall mount assembly B projector tube C projector arm D adapter plate E hook bracket F vertical handle G horizontal handle H projector adapter plate slide plate J projector mount K #10-32 x 0.375"...
  • Page 4 Parts List Continued Make sure that wall mount assembly (A) is level, use it as a template to mark the top two mouting holes. Alternatively, the top two screws can be fastened 16" apart as detailed in step 2 while making sure that they are level.

  • Page 5: Installation To Wood Stud Wall

    Installation to Wood Stud Wall • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.

  • Page 6: Installation To Solid Concrete Or Cinder Block

    Installation to Solid Concrete or Cinder Block • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
  • Page 7 Installation to Metal Stud Wall (Metal Stud Accessory Kit ACC 615 Required) • Drywall must be 1/2" or thicker, and metal stud must be 24 gauge or thicker. • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
  • Page 8 Slide projector tube (B) into assembly (A) and secure with two #10-32 x 0.375" phillips screws (K) as shown below. NOTE: Use correct set of mounting holes for the screen size as shown below. 63" SCREEN NOTE: Twist tube into assembly (A).
  • Page 9 Fasten two #10-32 x 0.375" phillips screws (K) into detail 1. Hook each vertical handle (F) onto #10-32 x 0.375" phillips screw (K) as shown in fig 5.1. NOTE: Use top slot for 77" screen or second slot from top for 63" screen. Fasten #10-32 x 0.375" phillips screws (K) through lower slot of vertical handle (F) that lines up with the lower hole in in fig.
  • Page 10 Insert hook brackets into screen as shown in detail 2 and fig. 7.1. Secure each hook bracket (E) with serrated washer head socket pin screw (L) as shown in fig. 7.2 and detail 3. SCREEN BRACKET 63" SCREEN 77" SCREEN DETAIL 2 DETAIL 3 Visit the Peerless Web Site at www.peerlessmounts.com...

  • Page 11: Side View

    Hook brackets (E) into adapter plate (D) as shown in fig. 8.1 and detail 4. The hooks will go over the flange on the top and the bottom of hook bracket (E) into the slots as shown in detail 4 and detail 6. Fasten #10-32 x 1-3/8"...

  • Page 12: Front View

    Arrow on projector mount assembly (J) indicates front of mount. The arrow of projector mount assembly (J) should face towards the round tube on projector arm (C). Fasten projector mount assembly (J) to projector arm (C) using two 1/4-20 x 1.0" hex head screws (N), four 0.25" ID nylon washers (P) and slide plate (I) as shown in fig.
  • Page 13 Place projector arm (C) onto projector tube (B) as shown in fig. 11.1. Align projector arm (C) so that the holes in projector tube (B) are in the middle of projector arm (C) slot. NOTE: This can be adjusted during final projector alignment if needed.

  • Page 14: Attaching Adapter Plate To Projector

    Attaching Adapter Plate to Projector Align shoulder on connection block opposite notch in adapter plate (H). Attach adapter plate (H) to connection block from projector mount assembly (J) using two #10-32 x 3/8" serrated washer head socket pin screws (O). Attach adapter plate (H) to projector using four M6 x 12 mm serrated washer head socket pin screws (L) and 0.25"...

  • Page 15: Attaching Adapter Plate To Projector Mount

    Attaching Adapter Plate to Projector Mount • Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely handle placement of the projector. Slide connection block with projector into projector mount assembly (J) as shown. Tighten captive screw to secure projector to projector mount assembly (J).

  • Page 16: Projector Alignment

    For customer care call 1-800-865-2112 or 708-865-8870. All other brand and product names are trademarks or registered trademarks of their respective owners. KNOB FOR PITCH ADJUSTMENT BACK OF MOUNT TO LOCK PITCH TIGHTEN TAMPER RESISTANT SECURITY SCREW © 2008, Peerless Industries, Inc. All rights reserved.
