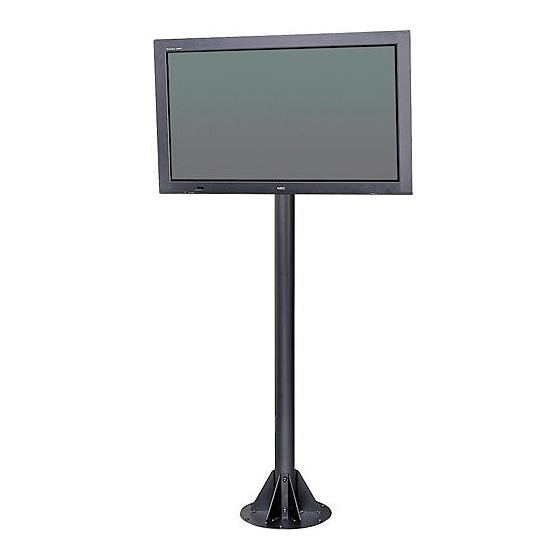

PEERLESS COL 510P Installation And Assembly Manual

Installation and Assembly - Support Column's
for Flat Panel Pedestal Mounts
IMPORTANT! Read entire instruction sheet before you start installation and assembly.

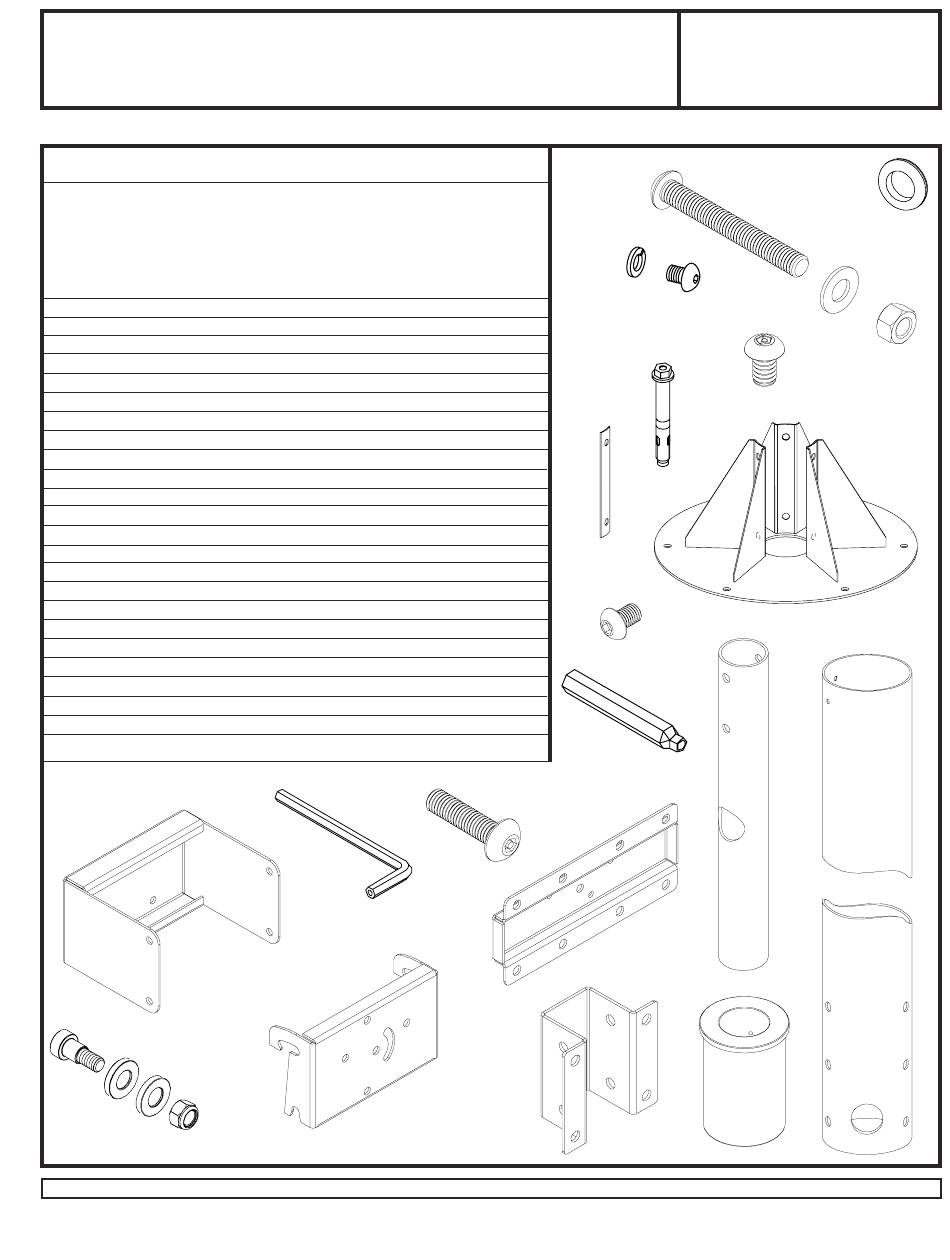

Parts List
PARTS LIST
PART # QTY.
A 200-1106
200-1107
200-1108
200-1109
B 120-0041
C 1390-472
D 5S1-M10-A20
E 540-9424
F 540-9407
G 530-9401
H 5M9-381-H03
I 560-9646
J 200-1096
K 200-1095
L 200-1094
M 200-1093
N 200-1517
O 590-1111
P 520-9263
Q 530-9310
R 520-1015
T 520-1065
U 520-9260
V 520-9525
W 530-9306
X 500-1082
Y 540-9454
Some parts may appear slightly different than illustrated.
J
X
Y W
Before you start make sure all parts listed are included with your product.
Visit the Peerless Web Site at www.peerlessindustries.com
DESCRIPTION
1 support column (model COL 510P only)
(model COL 610P only)
(model COL 710P only)
(model COL 810P only)
1 base plate
3 fastener plate
6 M10-1.5 x 20 mm socket head screw
6 lock washer
14 flat washer
2 rubber grommet
6 concrete expansion anchor
1 4 mm security allen wrench
1 tilt bracket
1 tube support
1 adapter mount
1 swivel bracket
1 neck tube
1 column bushing
16 M10 x 1.5 x 15 mm penta pin screw
2 3/8 x 16 nylock nut
2 3/8 x 16 x 3" socket screw bolt
2 M5 x .8 x 20 mm socket pin screw
1 M10 penta pin tool
3 M8 x 1.25 x 12 mm socket head screw
1 5/16-18 nylock nut
1 5/16-18 x 3/8 shoulder bolt screw
2 3/8 x 3/4 x 1/8 flat washer
I
M
E
C
U
T
K
1 of 6
ISSUED: 11-24-99 SHEET #: 200-9192-2 07-23-04
For customer service call 1-800-729-0307 or 708-865-8870.
Models: COL 510P, COL 610P,
COL 710P, COL 810P
R
D
P
H
B
V
N
L
O
G
F
Q
A
