Installation and Assembly:
Models: HDS-S

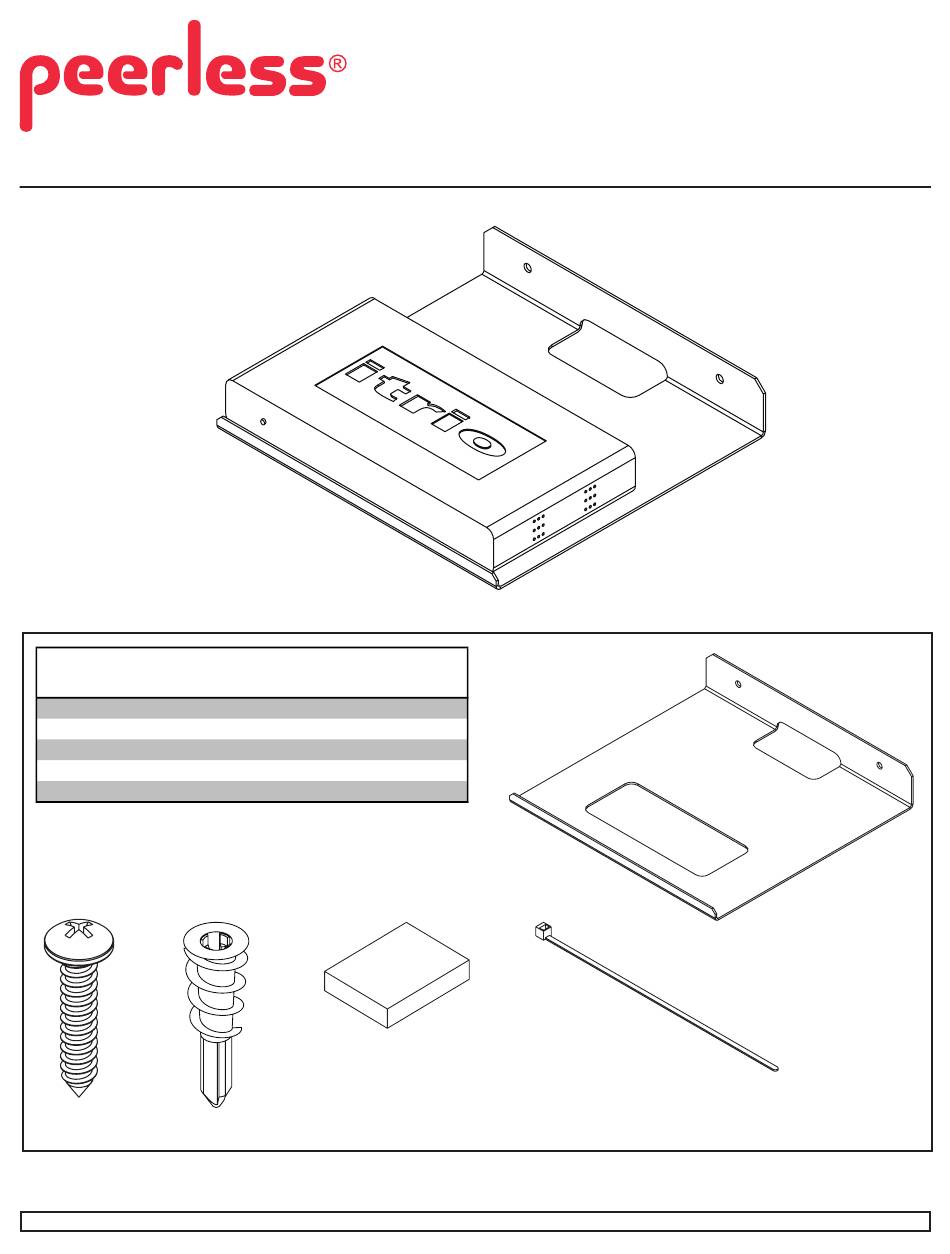

PARTS LIST
Description
A wall shelf
B #8 x 1" phillips head screw
C drywall anchor
D rubber pad
E cable tie
B
Visit the Peerless Web Site at www.peerlessmounts.com
Qty.
1
009-P1329
2
520-0671
2
590-2107
3
590-1159
2
560-9711
C
D
Part #
E
1 of 3
A
ISSUED: 03-11-11 SHEET #: 125-9196-1
For customer care call 1-800-865-2112.
Advertisement
Related Manuals for PEERLESS HDS-S
Summary of Contents for PEERLESS HDS-S
- Page 1 B #8 x 1" phillips head screw 520-0671 C drywall anchor 590-2107 D rubber pad 590-1159 E cable tie 560-9711 1 of 3 ISSUED: 03-11-11 SHEET #: 125-9196-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
- Page 2 Using wall shelf (A) as a template, mark the center of the two mounting holes. Using a phillips screwdriver, install two anchors (C) into drywall as shown below. Loosely fasten wall shelf (A) to drywall using two #8 x 1” phillips head screws (D). Level, hold, and then tighten all screws. DRYWALL NOTE: MAKE SURE THAT ANCHORS (C) ARE LEVEL 5.5" (140mm) NOTE: FLANGE FACES UPWARD 2 of 3 ISSUED: 03-11-11 SHEET #: 125-9196-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.
- Page 3 NOTE: Cable ties (E) can be used as needed. COMPUTER COMPUTER COMPUTER CABLES BACK VIEW FRONT VIEW DRYWALL NOT SHOWN DRYWALL NOT SHOWN FOR CLARITY FOR CLARITY 3 of 3 ISSUED: 03-11-11 SHEET #: 125-9196-1 Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112. © 2011, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
