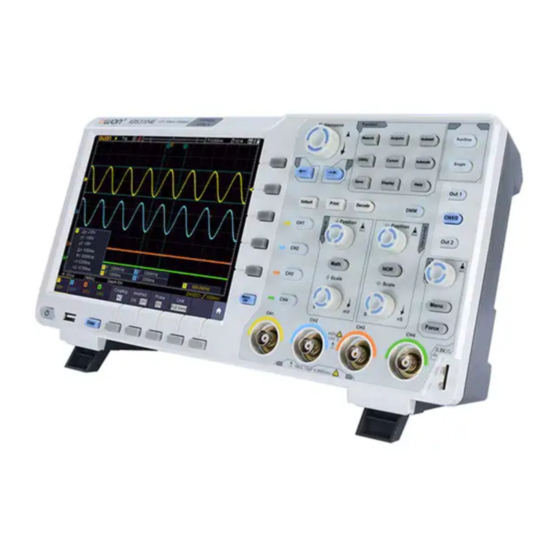

XDS3000 Dual-Channel Series
Digital Storage Oscilloscopes
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Owon XDS3104A

Summary of Contents for Owon XDS3104A

  • Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com XDS3000 Dual-Channel Series Digital Storage Oscilloscopes User Manual...
  • Page 2 LILLIPUT Company. Fujian LILLIPUT Optoelectronics Technology Co., Ltd. No. 19, Heming Road Lantian Industrial Zone, Zhangzhou 363005 P.R. China Tel: +86-596-2130430 Fax: +86-596-2109272 Web: E-mail: www.owon.com.cn info@owon.com.cn...
  • Page 3 OWON for warranty work may be new or reconditioned like new. All replaced parts, modules and products become the property of OWON. In order to obtain service under this warranty, the customer must notify OWON of the defect before the expiration of the warranty period. Customer shall be responsible for packaging and shipping the defective product to OWON's designated service centre, a copy of the customers proof of purchase is also required.

  • Page 4: Table Of Contents

    Table of Contents 1. General Safety Requirements ..................1 2. Safety Terms and Symbols ....................2 3. Junior User Guidebook ....................4 Introduction to the Structure of the Oscilloscope ..............5 Front Panel ............................... 5 Front Panel Menu Buttons ........................6 Rear Panel ..............................
  • Page 5 Logic Trigger............................50 Bus Trigger ............................. 51 Bus Decoding (Optional)........................56 How to Operate the Function Menu ..................61 How to Implement Sampling Setup ....................... 61 How to Set the Display System ......................63 How to Save and Recall a Waveform ..................... 66 How to Record/Playback Waveforms ....................
  • Page 6 DMM Information Window ....................108 Making Multimeter Measurements ..................109 Measuring AC or DC Current ......................109 Measuring AC or DC Voltage ......................109 Measuring Resistance ........................... 110 Testing Diodes............................110 Testing for Continuity .......................... 110 Measuring Capacitance ........................110 Multimeter Features ........................
  • Page 7 Multimeter (Optional) ......................146 General Technical Specifications ................... 147 12. Appendix ........................148 Appendix A: Enclosure ......................148 Appendix B: General Care and Cleaning ................148 Appendix C: Battery Using Guide ..................149...

  • Page 8: General Safety Requirements

    1. General Safety Requirements Before use, please read the following safety precautions to avoid any possible bodily injury and to prevent this product or any other connected products from damage. In order to avoid any contingent danger, ensure this product is only used within the range specified.

  • Page 9: Safety Terms And Symbols

    2. Safety Terms and Symbols Safety Terms Terms in this manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.
  • Page 10 The diagram of the oscilloscope ground wire connection: Probe Oscilloscope Electrical Outlet Signal Input Power Cord Ground Clip The diagram of the ground wire connection when the battery-powered oscilloscope is connected to the AC-powered PC through the ports: Oscilloscope Probe Electrical Outlet (Battery-power) Signal Input...

  • Page 11: Junior User Guidebook

    3. Junior User Guidebook This chapter deals with the following topics mainly:  Introduction to the structure of the oscilloscope  Introduction to the user interface  How to implement the general inspection  How to implement the function inspection ...
  • Page 16 Trig: Trigger detected and acquire waveform. Ready: Pre-triggered data captured and ready for a trigger. Scan: Capture and display the waveform continuously. Stop: Data acquisition stopped. Click to show/hide the touchable menu pane (only for touchscreen). (see "Operate the Menu through Touchscreen" on P17) 5.

  • Page 17: How To Implement The General Inspection

    Manual. You can check whether there is any loss of accessories with reference to this description. If it is found that there is any accessory lost or damaged, please get in touch with the distributor of OWON responsible for this service or the OWON's local offices.

  • Page 18: How To Implement The Function Inspection

    How to Implement the Function Inspection Make a fast function check to verify the normal operation of the instrument, according to the following steps: Connect the power cord to a power source. Long press the button on the bottom left of the instrument. The instrument carries out all self-check items and shows the Boot Logo.

  • Page 19: How To Implement The Probe Compensation

    How to Implement the Probe Compensation When connect the probe with any input channel for the first time, make this adjustment to match the probe with the input channel. The probe which is not compensated or presents a compensation deviation will result in the measuring error or mistake. For adjusting the probe compensation, please carry out the following steps: Set the attenuation coefficient of the probe in the menu as 10X and that of the switch in the probe as 10X (see "How to Set the Probe Attenuation Coefficient"...

  • Page 20: How To Use The Probe Safely

    select the proper value corresponding to the probe. This setting will be valid all the time before it is changed again. Caution: The default attenuation coefficient of the probe on the instrument is preset to 10X. Make sure that the set value of the attenuation switch in the probe is the same as the menu selection of the probe attenuation coefficient in the oscilloscope.

  • Page 21: How To Implement Self-Calibration

    Figure 3-10 Finger Guard Warning: To avoid electric shock, always keep your finger behind the safety guard ring of the probe during the operation. To protect you from suffering from the electric shock, do not touch any metal part of the probe tip when it is connected to the power supply. Before making any measurements, always connect the probe to the instrument and connect the ground terminal to the earth.

  • Page 22: Introduction To The Horizontal System

    of the earth datum point of the channel is directed to move up and down following the waveform. Measuring Skill If the channel is under the DC coupling mode, you can rapidly measure the DC component of the signal through the observation of the difference between the wave form and the signal ground.

  • Page 23: Introduction To The Trigger System

    Figure 3-12 Horizontal Control Zone 1. Turn the Horizontal Scale knob to change the horizontal time base setting and observe the consequent status information change. Turn the Horizontal Scale knob to change the horizontal time base, and it can be found that the Horizontal Time Base display in the status bar changes accordingly.
  • Page 32 Horizontal magnification factor. The size of the magnifier window is fixed. Therefor, the Horizontal greater this value, the shorter the horizontal length of the wave selection. Vertical magnification factor. The size of the magnifier window is fixed. Therefor, the Vertical greater this value, the shorter the vertical height of the wave selection.

  • Page 33: Advanced User Guidebook

    4. Advanced User Guidebook Up till now, you have already been familiar with the basic operations of the function areas, buttons and knobs in the front panel of the oscilloscope. Based the introduction of the previous Chapter, the user should have an initial knowledge of the determination of the change of the oscilloscope setting through observing the status bar.

  • Page 34: How To Set The Vertical System

    How to Set the Vertical System The VERTICAL CONTROLS includes three menu buttons such as CH1, CH2 and Math, and four knobs such as Vertical Position, Vertical Scale for each channel. Setting of CH1 and CH2 Each channel has an independent vertical menu and each item is set respectively based on the channel.
  • Page 35 the direct current bias. The operation steps are shown as below: (1) Push the CH1 button to show the CH1 SETUP menu. (2) Select Coupling in the bottom menu. (3) Select DC in the right menu. Both DC and AC components of the signal are passed. (4) Select AC in the right menu.

  • Page 36: Use Mathematical Manipulation Function

    (4) Select 20M in the right menu. The bandwidth is limited to 20 MHz. The frequencies above 20MHz will be rejected. 6. To set the input impedance (only for certain models) To reduce the circuit load caused by the interaction of the oscilloscope and the circuit to be tested, you can set the input impedance.

  • Page 37: User Defined Function

    Hamming Rectangle Blackman Window Select window for FFT. Hanning Kaiser Bartlett V RMS Decibels Format V RMS and Decibels are Radian Degrees Switch to select the horizontal position or Position value Hori (Hz) time base of the FFT waveform, turn the Time base value/ M knob to adjust it Switch to select the vertical position or...

  • Page 39: Digital Filter

    Digital Filter Digital filter provides 4 types of filters (low pass, high pass, band pass and band reject). The specified frequencies can be filtered by setting the cut-off frequency. Press the Math button to display the math menu in the bottom. 2.
  • Page 40 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com To select the FFT window ■ There are 6 FFT windows. Each one has trade-offs between frequency resolution and magnitude accuracy. What you want to measure and your source signal characteristics help you to determine which window to use.
  • Page 41 The frequency resolution when using the Kaiser window is fair; the spectral leakage and amplitude accuracy are both good. The Kaiser window is best used when frequencies Kaiser are very close to the same value but have widely differing amplitudes (the side lobe level and shape factor are closest to the traditional Gaussian RBW).
  • Page 42 Figure 4-2 Rectangle window Figure 4-3 Blackman window...
  • Page 43 Figure 4-4 Hanning window Figure 4-5 Kaiser window...

  • Page 44: Use Vertical Position And Scale Knobs

    Figure 4-6 Bartlett window Notes for using FFT  Use the default dB scale for details of multiple frequencies, even if they have very different amplitudes. Use the Vrms scale to compare frequencies.  DC component or offset can cause incorrect magnitude values of FFT waveform. To minimize the DC component, choose AC Coupling on the source signal.

  • Page 45: How To Set The Horizontal System

    2. The Vertical Scale knob is used to regulate the vertical resolution of the wave forms. The sensitivity of the vertical division steps as 1-2-5. The vertical position and vertical resolution is displayed at the left bottom corner of the screen (see Figure 4-7). Figure 4-7 Information about Vertical Position How to Set the Horizontal System The HORIZONTAL CONTROLS includes the Horizontal HOR button and such...

  • Page 47: Single Trigger

    Two ways to enter trigger mode: Key operation: Press Trigger Menu panel button, then bottom menu Trigger Type, select Single, ALT, Logic or Bus Trigger on the popup right menus, rotate M knob to choose different trigger types. Touch operation (Optional): Click Main menu icon on the left top of the screen, select Trig Menu, click bottom button Trigger Type, choose Single, ALT, Logic or Bus Trigger on the popup right menus, click to choose different trigger types。...
  • Page 48 1. Edge Trigger An edge trigger occurs on trigger level value of the specified edge of input signal. Select Edge trigger mode to trigger on rising edge or falling edge. In Edge Trigger mode, the trigger setting information is displayed on bottom right of the screen, for example, ，indicates that trigger type is edge, trigger source is CH1, coupling is DC, and trigger level is 0.00mV.
  • Page 49 2. Video Trigger Choose video trigger to trigger on fields or lines of NTSC, PAL or SECAM standard video signals. In Video Trigger mode, the trigger setting information is displayed on bottom right of the screen, for example, ，indicates that trigger type is Video, trigger source is CH1, and Sync type is Even.
  • Page 50 slope Slope selecting When Set slope condition; turn the M knob or click set slope time, press panel button or click to move cursor to choose which digit to be set. High level Adjust M knob to set the High level upper limit. Threshold Low level Adjust M knob to set Low level lower limit.
  • Page 51 Polarity Choose the polarity Select pulse width condition and adjust the M knob when or click to set time, press panel button or click to move cursor to choose which digit to be set. Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single...
  • Page 52 Single Set vertical channel trigger type as runt trigger. Runt Mode Select CH1 as the trigger source. Source Select CH2 as the trigger source. Adjust the M knob or click to set the up level Up Level threshold. Threshold Adjust the M knob or click to set the low level Low Level threshold.
  • Page 53 of the screen, for example, ，indicates that trigger type is windows, trigger source is CH1, polarity is positive, 0.00mV the differential between up level and low level threshold. Windows Trigger menu list: MENU SETTING INSTRUCTION Single Set vertical channel trigger type as Windows trigger. Windows Mode Select CH1 as the trigger source.
  • Page 54 Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop Mode 100 ns - 10 s, adjust M knob or click to set time Holdoff Holdoff interval before another trigger occur, press panel button or click to move cursor to choose which digit to be set.
  • Page 55 Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop Mode 100 ns - 10 s, adjust M knob or click to set time Holdoff Holdoff interval before another trigger occur, press panel button or click move cursor to choose which digit to be set.

  • Page 56: Alternate Trigger (Trigger Mode: Edge)

    Select CH1 as the trigger source. Source Select CH2 as the trigger source. Edge Trigger on the rising edge of the input signal when voltage level meets the specified trigger level. Edge Trigger on the falling edge of the input signal when voltage level meets the specified trigger level.

  • Page 57: Logic Trigger

    Holdoff 100 ns - 10 s, turn the M knob or click to set Holdoff time interval before another trigger occur, press panel button or click to move cursor to choose which digit to be set. Reset Set Holdoff time as default value (100 ns). Logic Trigger Trigger according to logic relation.

  • Page 58: Bus Trigger

    Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Single When trigger occurs, acquire one waveform then stop Mode 100 ns - 10 s, adjust M knob or click to set time Holdoff Holdoff interval before another trigger occur, press panel button or click move cursor to choose which digit to be set.
  • Page 59 Trigger when error frame is detected. After choosing Error this condition, press Configure to enter detailed settings. Trigger when Chk Error is detected. After choosing Chk Error this condition, press Configure to enter detailed settings. Trigger on the last bit of the preset data. After Data choosing this condition, press Configure to enter detailed settings.
  • Page 60 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com I2C Trigger menu list: MENU SETTING INSTRUCTION Bus Type Set vertical channel bus type as I2C trigger. Set CH1 as SCL or SDA. Source Set CH2 as SCL or SDA. Trigger when SDA data transitions from high to low Start while SCL is high.
  • Page 61 Trigger when Address and Data conditions are met at Addr / Data the same time . Mode Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Holdoff Single When trigger occurs, acquire one waveform then stop 3.
  • Page 62 All Bits Set all the data bits to be the specified value in Data. Mode Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Holdoff Single When trigger occurs, acquire one waveform then stop 4. CAN Trigger (Optional) CAN (Controller Area Network) is a serial communication protocol of the ISO international standardization.

  • Page 63: Bus Decoding (Optional)

    Turn the M knob (or tap on in touchscreen) to set Custom the Baud. The range is 10,000 to 1,000,000. Baud Tip: You can select the nearest value in Common Baud, and then adjust it in this menu. Start Trigger on the start frame of the data frame. Data Type Remote...
  • Page 64 (3) In trigger menu, select Bus trigger, and select bus type as RS232, set parameters based on the characteristics of the signal, trigger the signal correctly and obtain stable display. Refer to "RS232 Trigger" on page 51. (4) Push the Decode button on the front panel. Select bus type as RS232. set parameters based on the characteristics of the signal.
  • Page 65 2. I2C Decoding To decode I2C signal: (1) Connect the clock line (SCLK) and the data line (SDA) of the I2C signal to the Signal Input Channels of the oscilloscope. (2) Adjust to the proper time base and voltage division. (3) In trigger menu, select Bus trigger, and select bus type as I2C, set parameters based on the characteristics of the signal, trigger the signal correctly and obtain stable display.
  • Page 66 3. SPI Decoding To decode SPI signal: (1) Connect the clock line (SCLK) and the data line (SDA) of the SPI signal to the Signal Input Channels of the oscilloscope. (2) Adjust to the proper time base and voltage division. (3) In trigger menu, select Bus trigger, and select bus type as SPI, set parameters based on the characteristics of the signal, trigger the signal correctly and obtain stable display.
  • Page 67 If a USB storage device is currently connected to the instrument, save the event table data in a .csv Save (spreadsheet) formatted file on the external USB storage EventTable device. 4. CAN Decoding To decode CAN signal: (1) Connect the CAN signal to the Signal Input Channel of the oscilloscope. (2) Adjust to the proper time base and voltage division.

  • Page 68: How To Operate The Function Menu

    Binary Decimal Set the display format of the bus. Format ASCII Display Select "ON" to display the event table. EventTable If a USB storage device is currently connected to the instrument, save the event table data in a .csv Save (spreadsheet) formatted file on the external USB storage EventTable device.
  • Page 69 40M (Single CH) The description of PERF Mode menu (only for XDS3000-A series) is shown as follows: Function Menu Setting Description 8-bit 12-bit PERF Mode Set the vertical resolution (A/D) 14-bit (only for XDS3102AP/XDS3202A) This menu is only for XDS3000-A series. When the sample rate <=250MS/s, ADC resolution is set to 12-bit by default;...

  • Page 70: How To Set The Display System

    Sine(x)/x interpolation Linear interpolation How to Set the Display System Push the Display button and the Display menu is shown as follows:...
  • Page 71 Function Menu Setting Description Dots Only the sampling points are displayed. Vect The space between the adjacent sampling Type points in the display is filled with the vector form. 1 Second Persist Persist 2 Seconds Set the persistence time &Color 5 Seconds (Color is only for Infinity...
  • Page 72 Cold (1) Push the Display button. (2) Select Persist&Color in the bottom menu. (3) Select Color in the right menu, choose between ON/OFF. Figure 4-8 The color temperature function is on XY Format This format is only applicable to Channel 1 and Channel 2. After the XY display format is selected, Channel 1 is displayed in the horizontal axis and Channel 2 in the vertical axis;...

  • Page 73: How To Save And Recall A Waveform

     Reference or digital wave form  Cursor  Trigger control  FFT Operation steps: 1. Push the Display button. 2. Select XY Mode in the bottom menu. Select Enable as ON in the right menu. 3. To make the XY view full screen, select Full Screen as ON in the right menu. Counter It is a 6-digit single-channel counter.
  • Page 74 " on P61); Record Length menu Storage External the file name is editable. The BIN waveform file could be open by OWON waveform analysis software (on the supplied CD). When the type is Configure, the menu shows as following: Setting0 …..
  • Page 75 Save the current display screen. The file can be only stored in a USB storage, so a Save USB storage must be connected first. The file name is editable. The file is stored in BMP format. Save and Recall the Waveform The oscilloscope can store 100 waveforms, which can be displayed with the current waveform at the same time.
  • Page 76 8. Recalling: The BIN waveform file could be open by OWON waveform analysis software (on the supplied CD). Tip: Whatever the Type of save menu is set, you can save the waveform by just pressing the Copy panel button in any user interface. If the Storage of the save menu is set as "External", you should install the USB disk.
  • Page 77 Figure 4-9: Disk Management of computer 4. Right click 1 or 2 red mark area, choose Format. And system will pop up a warning message, click Yes. Figure 4-10: Format the USB disk warning 5. Set File System as FAT32, Allocation unit size 4096. Check "Perform a quick format"...
  • Page 78 Figure 4-11: Formatting the USB disk setting 6. Formatting process. Figure 4-12: Formatting the USB disk Check whether the USB disk is FAT32 with allocation unit size 4096 after formatting. Use Minitool Partition Wizard to format Download URL: http://www.partitionwizard.com/free-partition-manager.html Tip: There are many tools for the USB disk formatting on the market, just take Minitool Partition Wizard for example here.
  • Page 79 3. Click Reload Disk on the pull-down menu at the top left or push keyboard F5, and information about the USB disk will display on the right side with red mark 1 and 2. Figure 4-13: Reload Disk 4. Right click 1 or 2 red mark area, choose Format. Figure 4-14: Choose format 5.

  • Page 80: How To Record/Playback Waveforms

    6. Click Apply at the top left of the menu. Then click Yes on the pop-up warning to begin formatting. Figure 4-16: Apply setting 7. Formatting process Figure 4-17: Format process Format the USB disk successfully Figure 4-18: Format successfully How to Record/Playback Waveforms Wave Record function can record the input current wave.
  • Page 81 Record, Playback and Storage. When storage medium is External, Wave Record contains two modes: OFF, Record. Record: To record wave according to the interval until it reaches the end frame set. Record menu (Internal Storage) shows as follows: Menu Setting Instruction Close wave record function Record...
  • Page 82 Mode to store (1 - 1000) Frame Set Turn the M knob to select the number of end frame to End frame store (1 - 1000) Save Save the waveform record file to the internal memory Load Load the waveform record file from the memory To use wave record function, do as follows: (1) Push Save button.
  • Page 83 Both of the waveforms of Channel 1 and Channel 2 will be recorded. If a Channel is turned off while recording, the waveform of the channel is invalid in the playback mode. To use wave record to external, do as follows: 1.

  • Page 84: How To Clone And Recall A Waveform

    USB memory device; and the waveform between two cursors can be output directly without save operation. You can also use OWON AG1022F or AG2052F signal generator to read *.ota files and recall the cloned waveforms. Clone Wave menu shows as follows:...
  • Page 86 (4) Turn the M knob to select an object in the left menu. If the source of the selected waveform is CH1 or CH2, select AG Output in the right menu and set the output channel of the generator. If the source is CH1&CH2, the output channel is not selectable.
  • Page 87 Each parameter name is a case-sensitive string of 4 bytes. The parameter value is at least 4 bytes. 1.Format description of the file header: HEAD Parameter name Meaning Value Comment HEAD Header size 4 bytes int TYPE Parameter name Meaning Value Comment TYPE...

  • Page 88: How To Implement The Auxiliary System Function Setting

    The data type is signed integer. You can determine the data type (char, short int or int) based on the BYTE parameter. The valid range is determined by the ADCB parameter, e.g. the valid range for 8-bit ADC is -127 to +127. How to Implement the Auxiliary System Function Setting ●Config Push the Utility button, select Function in the bottom menu, select Configure in...
  • Page 89 Push the Utility button, select Function in the bottom menu, select Adjust in the left menu. The description of Adjust Menu is shown as the follows: Function Menu Description Self Cal Carry out the self-calibration procedure. Default Call out the factory settings. ProbeCh.
  • Page 90 The description of Pass/fail Menu is shown as the follows: Function Menu Setting Description Enable Control enable switch operate Operate Control operate switch Pass Signal tested corresponds with the rule Fail Signal tested not correspond with the rule Output Beep Beep when it satisfies the rule Stop Stop once satisfying the rule...
  • Page 91 4. Under the status of stop, data comparing will stop, and when it goes on running, the number of Pass/Fail will increase from the former number, not from zero. 5. When the waveform playback mode is on, Pass/Fail is used to test the played-back waveform specially.

  • Page 92: How To Update Your Instrument Firmware

    About in the bottom menu. View the model and the currently installed firmware version. 2. From a PC, visit www.owon.com.cn and check if the website offers a newer firmware version. Download the firmware file. The file name must be *.update.

  • Page 93: How To Measure Automatically

    In the bottom menu, select Start again, the interfaces below will be displayed in sequence. The update process will take up to three minutes. After completion, the instrument will be shut down automatically. Long press the button to power on the instrument. How to Measure Automatically Push the Measure button to display the menu for the settings of the Automatic Measurements.
  • Page 94 Meas Type Select the types need to be deleted. (left menu) Remove Remove Remove the chosen measure type Remove All Remove all the measures Show Show all the measures of CH1 on the screen Hide the window of CH1 measures Show Show all the measures of CH2 on the screen Hide the window of CH2 measures...
  • Page 95 Figure 4-20 Automatic measurement The automatic measurement of voltage parameters The oscilloscopes provide automatic voltage measurements including Mean, PK-PK, RMS, Max, Min, Vtop, Vbase, Vamp, OverShoot, PreShoot, Cycle RMS, and Cursor RMS. Figure 4-21 below shows a pulse with some of the voltage measurement points.
  • Page 96 A→B , Delay A→B , and Duty cycle. Figure 4-22 shows a pulse with some of the time measurement points. Figure 4-22 Rise Time: Time that the leading edge of the first pulse in the waveform takes to rise from 10% to 90% of its amplitude. Fall Time: Time that the falling edge of the first pulse in the waveform takes to fall from 90% to 10% of its amplitude.

  • Page 97: How To Measure With Cursors

    value to the high reference value in the waveform. FallEdgeCnt : The number of negative transitions from the high reference value to the low reference value in the waveform. Area : The area of the whole waveform within the screen and the unit is voltage-second.
  • Page 98 of the channel CH1: Push Cursor to display the cursor menu. In the bottom menu, select Source as CH1. 3. Select the first menu item in the bottom menu, the Type menu will display at the right of the screen. In the right menu, select Time&Voltage for Type, two blue dotted lines displayed along the horizontal direction of the screen, two blue dotted lines displayed along the vertical direction of the screen.

  • Page 100: How To Use Autoscale

    Display the channel to which the cursor Source Math FFT measurement will be applied. Perform the following operation steps for the amplitude and frequency cursor measurement of math FFT: 1. Press the Math button to display the math menu in the bottom. Select FFT. In the right menu, select Format.
  • Page 101 Show Multi-period waveforms. Wave Only show one or two periods. If you want to measure the two-channel signal, you can do as the follows: 1. Push the Autoscale button, the function menu will appear. 2. In the bottom menu, select ON in the Autoscale menu item. 3.

  • Page 102: How To Use Built-In Help

    7. When video triggering, the horizontal time scale is 50us. If one channel is showing edge signal, the other channel is showing video one, the time scale refers to 50us as video one as standard. 8. While the Autoscale is working, the settings below will be made forcibly: The DSO will switch from the wave zoom mode to the normal mode.
  • Page 103 Five kinds of types: Sine, Square, video signal, DC level, Unknown signal. Menu as follow: Sine: ( Multi-period, Single-period, FFT, Cancel Autoset Square: ( Multi-period, Single-period, Rising Edge, Falling Edge, Cancel Autoset Video signal: DC level, Unknown signal: Description for some icons: Multi-period：...

  • Page 104: How To Print The Screen Image

    Copy: You can save the waveform by just pushing the Copy panel button in any user interface. The source wave and the storage location are according to the settings of the Save function menu when the Type is Wave. For more Function details, please see "...

  • Page 106: To Set Signals

     To Turn On/Off Output of Channels Push to turn on/off output of the corresponding channel. The indicator will be lighted when the corresponding channel is tuned on.  Channel Copy menu Push button to switch to Channel Copy menu. Copy Channel Select CH2 To CH1 in the bottom menu to copy parameters of CH2 to CH1.

  • Page 108: To Set The Offset

    To Set the Offset Select Offset in the right menu (if Offset is not displayed, select Low Level and select it again to switch to Offset). Set the parameter in the right menu. To Set the High Level Select High Level in the right menu (if High Level is not displayed, select Amplitude and select it again to switch to High Level).
  • Page 111 (4) Turn the M knob to select the desired waveform (or touch if the LCD is touchscreen). E.g. select Noise. Select Select to output the noise waveform. Note: For single-channel, you can push on the front panel to output DC. Built-in Waveform Table Name Explanation...

  • Page 112: Frequency Response Analysis

    Natural logarithm function Cubic Cubic function Cauchy Cauchy distribution Besselj BesselI function Bessely BesselII function Error function Airy Airy function Windows Rectangle Rectangle window Gauss Gauss distribution Hamming Hamming window Hann Hanning window Bartlett Bartlett window Blackman Blackman window Laylight Laylight window Triang Triangle window (Fejer window)
  • Page 113 Check to enable FRA function and show FRA scale FRA line and chart. When unchecked, FRA information is shown on the FRA window. Transparent When checked, FRA information is shown on the FRA waveform display area. Turn Multipurpose knob to move the marker, view Marker measured gain and phase values.

  • Page 116: Making Multimeter Measurements

    5. Data hold mode is enabled. 6. Multimeter recorder (See Multimeter Recorder " " on page 111 7. The reference value of the relative measurement. 8. Range of measuring current: mA or 10A. 9. AC or DC when measuring current or voltage. Making Multimeter Measurements Measuring AC or DC Current To measure a AC or DC current which is less than 400 mA, do the following:...

  • Page 117: Measuring Resistance

    the red test lead to the V/Ω/C terminal. (3) Probe the test points and read the display. Measuring Resistance (1) Push DMM button on the front panel. Select in the bottom menu, select R. (2) Connect the black test lead to the COM terminal on the back of the oscilloscope and the red test lead to the V/Ω/C terminal.

  • Page 118: Multimeter Features

    Multimeter Features Data Hold Mode You can freeze the display for any function. (1) Select Hold in the bottom menu as ON. will be shown on the display. HOLD (2) Select OFF to exit this mode. Making Relative Measurements When making relative measurements, reading is the difference between a stored reference value and the input signal.

  • Page 121: Communication With Pc

    Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com 7. Communication with PC The oscilloscope supports communications with a PC through USB, LAN port or Wi-Fi. You can use the Oscilloscope communication software to store, analyze, display the data and remote control.

  • Page 122: Using Lan Port

    Here we set the IP address to 192.168.1.71. Figure 7-2 Set the network parameters of the computer (3) Set the network parameters of the OWON Oscilloscope Software. Run the software on the computer; choose the "Ports-settings" of the "Communications" menu item.

  • Page 123: Connect Through A Router

    Figure 7-3 Set the network parameters of the OWON Oscilloscope Software (4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set.
  • Page 124 192.168.1.1. Figure 7-5 Set the network parameters of the computer (3) Set the network parameters of the OWON Oscilloscope Software. Run the software on the computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect using" to LAN. About the IP, the first three bytes is same as the IP in the step (2), the last byte should be different.

  • Page 125: Using Wi-Fi To Connect With Pc (Optional)

    (4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility button. Select Function in the bottom menu. Select LAN Set in the left menu. In the bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and Port to the same value as the "Ports-settings"...

  • Page 126: Connect With Pc As Wi-Fi Station

    (7) Set Wi-Fi connection on PC. Enter the Wi-Fi settings on PC, select the oscilloscope access point to connect, enter the set password. (8) Set the network parameters of the OWON Oscilloscope Software. Run the software on the computer; choose the "Ports-settings" of the "Communications" menu item.
  • Page 127 Select LAN Set in the left menu. In the bottom menu, set the Type item as WIFI-STA, and select Set in the bottom menu. (2) In the right menu, select SSID, a keyboard will pop up. Input the name of the Wi-Fi hotspot.
  • Page 128 Figure 7-9 Set the network parameters of the computer (8) Set the network parameters of the OWON Oscilloscope Software. Run the software on the computer; choose the "Ports-settings" of the "Communications" menu item. Set "Connect using" to LAN. Set IP and Port to the same value in the oscilloscope.

  • Page 129: Communication With Android Device Via Wi-Fi (Optional)

     Install the application software Install the free OWON application software, it can be downloaded from here: Scan the QR Code below with your Android based smart device. Follow the prompts on the download page to download and install the APP.
  • Page 130 password. WEP or WPA type need to set the password. You can select WPA. In the right menu, select Password, use the keyboard to set the Wi-Fi password (8 to 32 characters). (4) In the right menu, select IP:PORT, IP is fixed by the oscilloscope, and can not be edited.

  • Page 137: Demonstration

    9. Demonstration Example 1: Measurement a Simple Signal The purpose of this example is to display an unknown signal in the circuit, and measure the frequency and peak-to-peak voltage of the signal. Carry out the following operation steps for the rapid display of this signal: (1) Set the probe menu attenuation coefficient as 10X and that of the switch in the probe switch as 10X (see "How to Set the Probe Attenuation Coefficient"...

  • Page 138: Example 2: Gain Of A Amplifier In A Metering Circuit

    Figure 9-1 Measure period and frequency value for a given signal Example 2: Gain of a Amplifier in a Metering Circuit The purpose of this example is to work out the Gain of an Amplifier in a Metering Circuit. First we use Oscilloscope to measure the amplitude of input signal and output signal from the circuit, then to work out the Gain by using given formulas.

  • Page 139: Example 3: Capturing A Single Signal

    Gain = Output Signal / Input signal Gain (db) = 20×log (gain) Figure 9-2 Waveform of Gain Measurement Example 3: Capturing a Single Signal It's quite easy to use Digital Oscilloscope to capture non-periodic signal, such as a pulse and burr etc. But the common problem is how to set up a trigger if you have no knowledge of the signal? For example, if the pulse is the logic signal of a TTL level, the trigger level should be set to 2 volts and the trigger edge be set as the rising edge trigger.

  • Page 140: Example 4: Analyze The Details Of A Signal

    (9) Select Coupling in the bottom menu. Select DC in the right menu. (10) In the bottom menu, select Slope as (rising). (11) Turn the Trigger Level knob and adjust the trigger level to the roughly 50% of the signal to be measured. (12) Check the Trigger State Indicator on the top of the screen, if it is not Ready, push down the Run/Stop button and start acquiring, wait for trigger to happen.
  • Page 141 (1) Push the Acquire button to display the Acquire menu. (2) Select Acqu Mode in the bottom menu. (3) Select Peak Detect in the right menu. The signal displayed on the screen containing some noise, by turning on Peak Detect function and changing time base to slow down the incoming signal, any peaks or burr would be detected by the function (see Figure 9-4).

  • Page 142: Example 5: Application Of X-Y Function

    Figure 9-5 Reduce Noise level by using Average function Example 5: Application of X-Y Function Examine the Phase Difference between Signals of two Channels Example: Test the phase change of the signal after it passes through a circuit network. X-Y mode is a very useful when examining the Phase shift of two related signals. This example takes you step by step to check out the phase change of the signal after it passes a specified circuit.
  • Page 144 (3) In the left menu, select Video as the mode. (4) Select Source in the bottom menu. Select CH1 in the right menu. (5) Select Modu in the bottom menu. Select NTSC in the right menu. (6) Select Sync in the bottom menu. Select Field in the right menu. (7) Turn the Vertical Scale, Vertical Position and Horizontal Scale knobs to obtain a proper waveform display (see Figure 9-7).

  • Page 145: 10. Troubleshooting

     Restart the instrument after completing the checks above.  If the problem persists, please contact OWON and we will be under your service. 2. After acquiring the signal, the waveform of the signal is not displayed in the screen.

  • Page 146: 11. Technical Specifications

    11. Technical Specifications Unless otherwise specified, the technical specifications applied are for XDS3000 dual-channel series only, and Probes attenuation set as 10X. Only if the oscilloscope fulfills the following two conditions at first, these specification standards can be reached.  This instrument should run for at least 30 minutes continuously under the specified operating temperature.
  • Page 147 Performance Characteristics Instruction XDS3102AP (Use gray scale to indicate frequency of XDS3102 occurrence, where frequently occurring XDS3202E waveform are bright.) Support XDS3202A XDS3202 XDS3302 XDS3062A XDS3102A XDS3102 Not support Magnifier Function XDS3202E (The magnifier window can display the XDS3202 magnified wave of the wave selection.) XDS3302 XDS3102AP Support (the touchscreen...
  • Page 148 Performance Characteristics Instruction 0.001X - 1000X, step by 1 – 2 - 5 Input coupling 1MΩ：≤300 Vrms; Max input voltage 50Ω：≤5 Vrms (For certain models) Bandwidth limit 20 MHz, full bandwidth Channel to channel 50Hz: 100 : 1 isolation 10MHz: 40 : 1 Time delay between 150ps channel (typical)
  • Page 149 Performance Characteristics Instruction XDS3062A 2ns/div - 1000s/div, XDS3102(A) step by 1 – 2 - 5 XDS3102AP Scanning speed (S/div) XDS3202E 1ns/div - 1000s/div, XDS3202(A) step by 1 – 2 - 5 XDS3302 Sampling rate / relay ±1 ppm (Typical, Ta = +25℃) time accuracy Single：...

  • Page 150: Trigger

    Performance Characteristics Instruction XDS3202E XDS3202 ≥ 2 mV XDS3302 Delta Volts between any two averages of ≥16 waveforms acquired with the same DC accuracy (average) scope setup and ambient conditions (△V): ±(3% rdg + 0.05 div) Waveform inverted ON/OFF △V, △T, △T&△V between cursors, Cursor auto cursor Period, Frequency, Mean, PK-PK, RMS,...
  • Page 151 Trigger According to Record length and time base displacement Trigger Holdoff 100 ns – 10 s range 50% level setting Input signal frequency ≥ 50 Hz (typical) Edge trigger slope Rising, Falling Support standard NTSC, PAL and SECAM Modulation broadcast systems Video Trigger Line number range 1-525 (NTSC) and 1-625 (PAL/SECAM)

  • Page 152: Waveform Generator (Optional)

    Edge Type Rising, Falling Nth Edge Trigger Idle Time 30 ns to 10 s Edge Number 1 to 128 Logic Mode AND, OR, XNOR, XOR Input Mode H, L, X, Rising, Falling Logic Trigger Goes True, Goes False, Is True >, Output Mode Is True <, Is True = Polarity...

  • Page 153: Multimeter (Optional)

    Multimeter (Optional) Performance Instruction Characteristics Full scale 3¾ digits (Max 4000 – count) reading Diode 0 V - 1 V Input 10 MΩ impedance On/Off <50(±30)Ω beeping measurement Capacitance 51.2nF - 100uF: ±(3%±3 digit) DCV: 400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit) Max.

  • Page 154: General Technical Specifications

    General Technical Specifications Display Display Type 8" Colored LCD (Liquid Crystal Display) Display Resolution 800 (Horizontal) × 600 (Vertical) Pixels Display Colors 65536 colors, TFT screen Output of the Probe Compensator Output Voltage About 5 V, with the Peak-to-Peak voltage ≥1 MΩ. (Typical ) Frequency (Typical ) Square wave of 1 KHz...

  • Page 155: 12. Appendix

    12. Appendix Appendix A: Enclosure (The accessories subject to final delivery.) Standard Accessories: Power Cord CD Rom Quick Guide USB Cable Probe Probe Adjust Options: Multimeter Lead Capacitance Battery Soft Bag Ext Module Appendix B: General Care and Cleaning General Care Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.

  • Page 156: Appendix C: Battery Using Guide

    Disconnect power before cleaning your Oscilloscope. Clean the instrument with a wet soft cloth not dripping water. It is recommended to scrub with soft detergent or fresh water. To avoid damage to the instrument or probe, do not use any corrosive chemical cleaning agent.

This manual is also suitable for:

Xds3062aXds3102Xds3102aXds3102apXds3202eXds3202 ... Show all

Table of Contents
