Installation MANUAL
Cast Iron Front 602CFB
Approved for use with Valor heater models 534 ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.

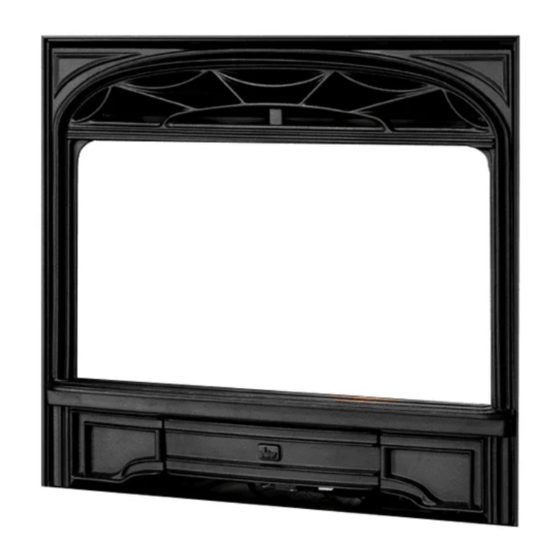

The 602CFB Cast Iron Front is designed to be used on its own or along with an outer surround trim (supplied
separately) on the 534 Valor Horizon heaters. The Cast Iron Front clips onto the mounting brackets inside the
appliance's black frame. The Cast Iron Front is compatible with the 603FSK and 605FSK Trims.
Casting Tolerances
Due to the nature of cast iron, dimensional consistency may vary from one unit to the next and some variation in
surface finish and flatness is to be expected. We have done our best to control and make allowance for this; however
some variation is inevitable.
Outer Trim
34-7/8" (887 mm)
supplied
separately
4001169-05
© Copyright 2020 Miles Industries Ltd.
Horizon
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
main installation instructions
for the above listed heater
model.
Barrier Screen
Overview
(Heater and trim sold separately)
534
3 or 4-sided Trim
602 Cast Front
1
