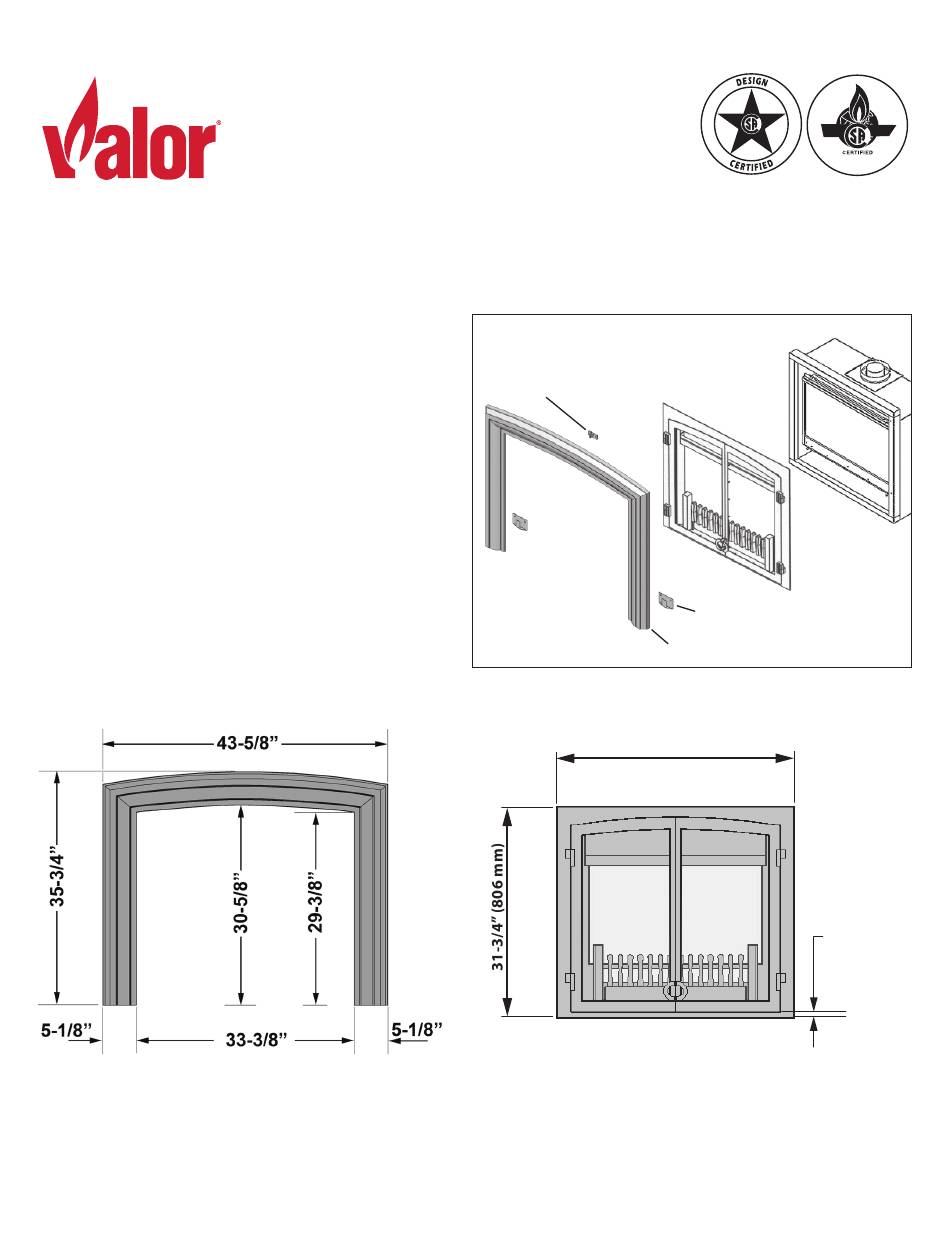

INSTALLATION MANUAL

Arched Cast Surround 614CVI

Approved for use with Valor models 534 with 610FVI ONLY

The 614CVI Arched Cast Surround is intended to be

used on Valor 534 heaters fitted with FenderFire Double

Doors 610FVI.

Installation of the 614CVI does not affect clearances,

framing dimensions, or other specifications listed in the

heater installation manual.

Note: Backing or wall anchors may be required behind

wall finish at fixing points to secure cast surround to

wall.

614CVI Arched Cast Surround

4000717-07

Horizon

Top mounting

hook

Overview

35-3/4" (908 mm)

*NOTE: Bottom of plate is flush with

bottom of heater. Install bottom of

heater flush with finished hearth.

Door (sold separately)

534 heater

FenderFire Doo

(sold separately

Wall mounting cleats (2)

Arched Cast Surround

3/4" (19 mm)

Max. Clearance

bot. of door to

bot. of plate

Need help?

Do you have a question about the Horizon 614CVI and is the answer not in the manual?

Questions and answers

Summary of Contents for Valor Horizon 614CVI

Page 1 INSTALLATION MANUAL Horizon Arched Cast Surround 614CVI Approved for use with Valor models 534 with 610FVI ONLY The 614CVI Arched Cast Surround is intended to be 534 heater used on Valor 534 heaters fitted with FenderFire Double Doors 610FVI. Top mounting...
Page 2 Top Mounting Hook Wall 34-1/8” Mounting Locate Cleats against plate Location of hardware Installation 1. Install heater as per installation instructions. Allow for height of finished hearth. 2. Install the Door kit following instructions packed with kit. 3. Fix 2 mounting cleats (supplied) to the wall, flush with top of finished hearth and adjacent to the backing plate as indicated above.
Page 3 GUIDE D’INSTALLATION Horizon Arche de fonte 614CVI Certiﬁ é pour foyers Valor 534 avec Porte FenderFire 610FVI L’arche de fonte 614CVI est conçue pour être installée Foyer 534 avec les foyer Valor 534 munis de la Porte double FenderFire 610FVI.
Page 4 Crochet de montage Fixez 34-1/8” contre la Attaches plaque de murales la porte Position du crochet et des attaches Installation 1. Installez le foyer selon son guide Fixez le crochet de montage au mur (voir schéma pour la position). Des chevilles d’installation.
