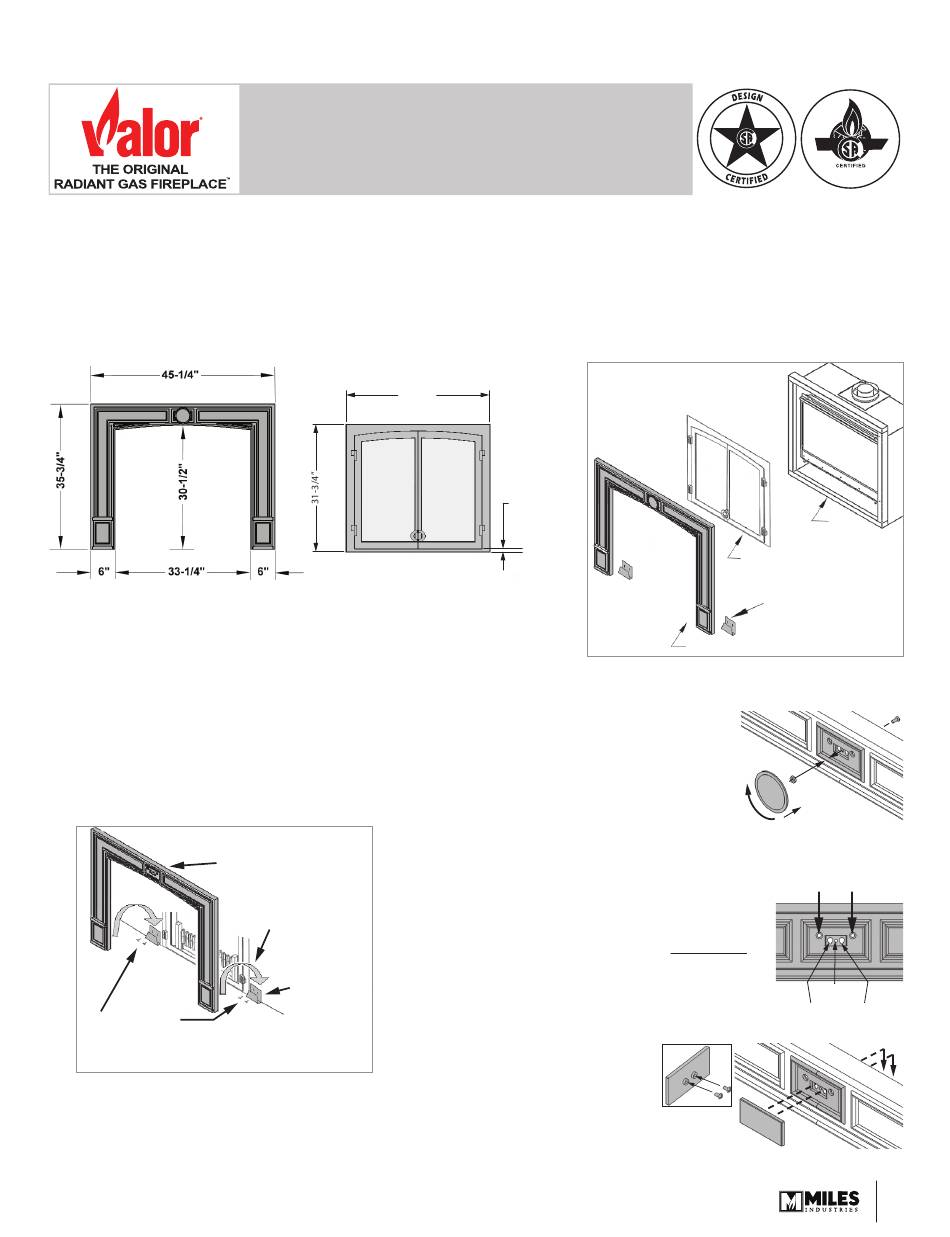

INSTALLATION MANUAL
615CVI Cast Surround
for 534 Heaters fi tted with 610FVI or 611FVI FenderFire Doors
The 615CVI Cast Surround is intended to be used on Valor heaters models 534 fi tted with FenderFire Double Doors
or FenderFire Single Door. Installation of the 615CVI does not aff ect clearances, framing dimensions, or other
specifi cations listed in the heater installation manual. Note: Backing or wall anchors may be required behind wall
fi nish at fi xing points to secure cast surround to wall.

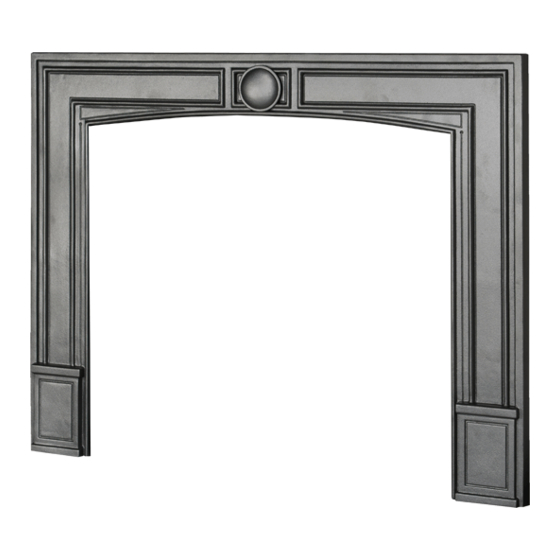

615CVI Cast Surround
Installation
1.
Install heater as per installation instructions. Allow for
height of fi nished hearth.
2.
Install the door kit or backing plate following instructions
packed with each kit.
3.
Fix 2 mounting cleats (supplied) to the wall, fl ush with top of
fi nished hearth and adjacent to the backing plate.
Fasten top of surround
to wall (see step 6)
Backing or wall anchors
(not supplied)
may be required
Screw cleats to wall
directly adjacent to backing plate
and flush with top of hearth
Cast Surround Installation
4.
The surround comes with a choice of 2 decorative caps
to be fi tted at the center of its top section. Decide which
decorative cap will be fi tted at this point in the
installation.
4000464-07
©2018, Miles Industries Ltd.
Horizon
35-3/4"
*NOTE: Bottom of plate is flush with
bottom of heater. Install bottom of
heater flush with finished hearth.
Door Kits (sold separately)
Drop cast
surround legs
over cleats
Backing or wall
anchors may be
required
(not supplied)
3/4" Max.
Clearance
bot. of door to
bot. of plate
Overview
If the round cap is chosen by
the customer for this installation,
insert the threaded stud provided
from the back of the surround
through the center hole. Fit the
nut provided on the stud. Do
not screw the cap just yet. If the
rectangular cap is chosen for
this installation, see step 8 below.
5.
Align and slide surround legs onto
cleats and push the surround fl at
against the wall—see Cast Surround
Installation diagram.
6.
Fasten top of surround to wall with
fi xing screws using the 2 outermost
holes from the center fi xing plate.
7.
If using the round cap, fi t it to the
surround by screwing it to the stud
previously assembled.
8.
If using the
rectangular cap,
fasten the 2 screws
provided to the back
of the cap. Hook the
cap to the key holes
Adjust screws
length to tighten
in the surround's
or loosen cap
fi tting
center fi xing plate.
Heater
Door Kit
Wall Mounting Cleats (2)
615CVI Cast Iron Surround
Wall Fixing Points
Round Cap
Fixing Point
Rectangular Cap Fixing Points
