614CVI Arched Cast Surround

for 534/535 Heaters fitted with 610FVI, 611FVI or 612DKA Doors

The 614 Arched Cast Surround is intended to be used on any Valor model 534/535 heaters fitted with a 610FVI

FenderFire Double Doors, 611FVI FenderFire Single Door or 612DKA Alhambra Doors but may also be used on

it's own with alternate finish material between the heater and surround. Installation of the 614CVI does not affect

clearances, framing dimensions, or other specifications listed in the heater installation manual—see installation

manual supplied with the heater. Note: Backing or wall anchors may be required behind wall finish at fixing

points to secure cast surround to wall.

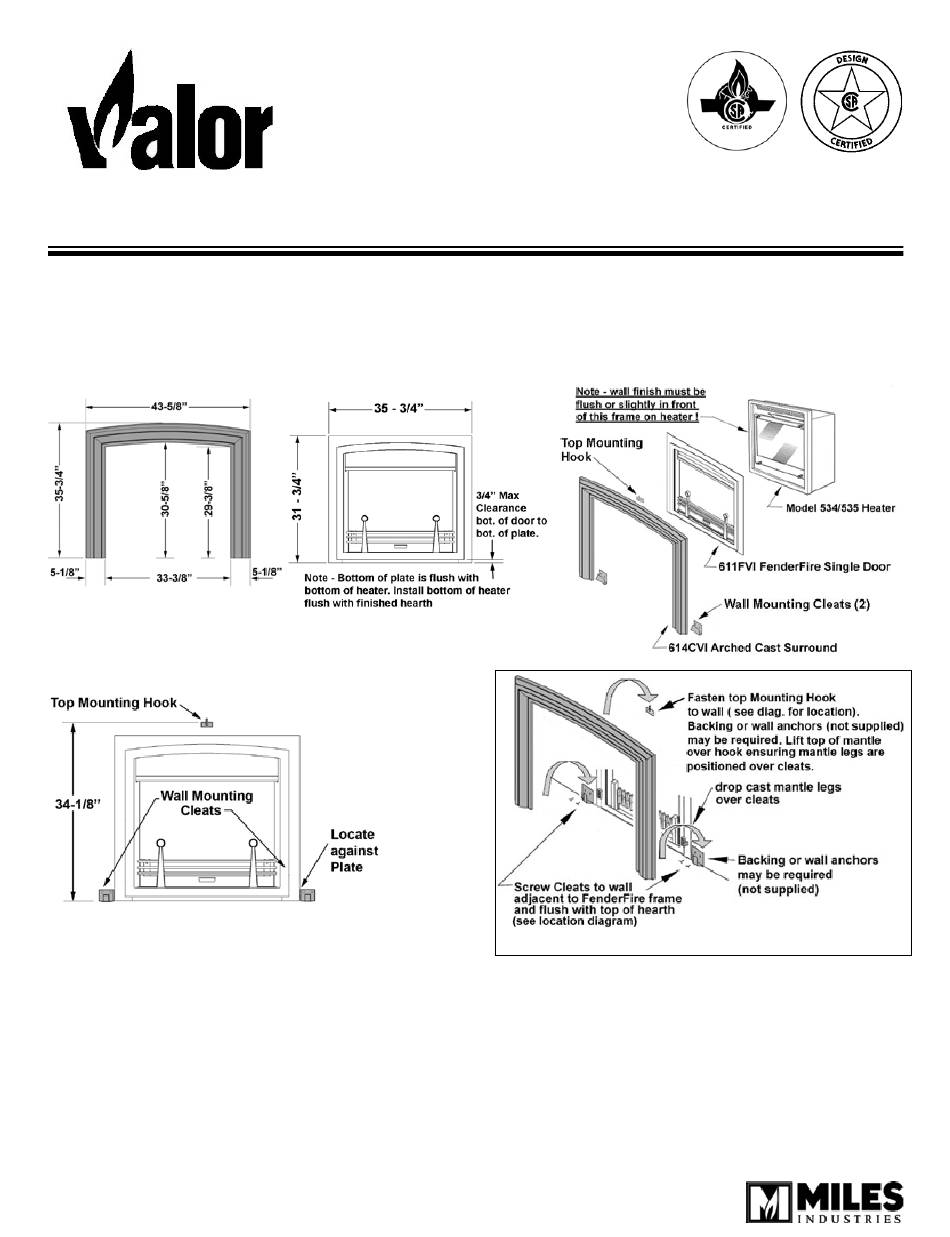

614CVI Arched Cast Surround

Install heater as per installation instructions. Allow for height of finished hearth.

Install 610FVI, 611FVI or 612DKA Door front (if used) following instructions packed with each kit.

Install 2 mounting cleats (supplied) to the wall, flush with top of finished hearth and adjacent to the

backing plate as indicated above.

Drop slots at back of mantle legs over the wall cleats while pushing mantle back against wall and

dropping over hook at top as indicated above.

4000717-04

611FVI FenderFire Single Door

(sold separately)

Designed and Manufactured by Miles Industries Ltd.

190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1

Tel. (604) 984-3496 Fax (604) 984-0246

www.milesfireplaces.com
