- Page 1 HDSpider HDMI 1.3 over Single Cat.5 Distribution Series ™ HVE-9000 HVE-9001 HVE-9002 HVE-9003 HVE-9004 HVE-9008 HVE-9900 User Manual Ver.:2.0-1003...
- Page 2 TABLE OF CONTENTS p.2 Package Contents p.3 Overview p.4 Panel Description p.14 Installation p.20 Systematic Application Diagrams p.21 Frequently Asked Questions p.22 Specifications p.25 Notice p.26 Pin Definition...
- Page 3 PACKAGE CONTENTS HVE-9000 HDSpider Long Range Cat.5 HDMI Receiver ™ ™ 1. HDSpider Long Range Cat.5 HDMI Receiver (HVE-9000) 2. 5V 2A DC Power Supply Unit 3. User Manual HVE-9001 HDSpider Cat.5 HDMI Sender ™ ™ 1. HDSpider Cat.5 HDMI Sender (HVE-9001) 2.
- Page 4 OVERVIEW Introduction The HDSpider HDMI 1.3 over Single Cat.5 Distribution Series provides the most ™ flexible solution by which the uncompressed, unmodified, and pure digital HDMI signals with 7.1-channel audio can be transmitted to different locations over a long distance. The cascadability of HDSpider™ series is virtually unlimited, allowing you to extend HDMI/DVI displays almost anywhere.

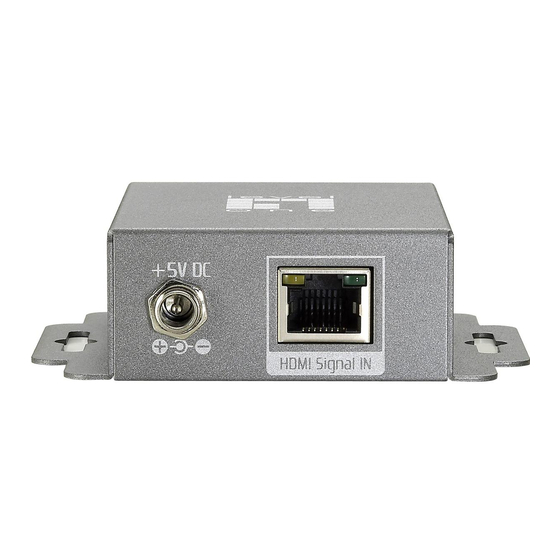

- Page 5 PANEL DESCRIPTION HVE-9000 HDSpider Long Range Cat.5 HDMI Receiver ™ Input Panel HDMI Signal IN: Connect to the HDMI Signal OUT port on the HVE-9001, HVE-9002, HVE-9004, or HVE-9008 with a Cat.5e/6 cable. +5V DC: Connect to 5V 2A DC power supply. Output Panel Signal Level: Adjust the 8-level signal equalization control to the received HDMI signals.
- Page 6 HVE-9001 HDSpider Cat.5 HDMI Sender ™ Output Panel HDMI IN: Connect to a HDMI source with a HDMI male-male cable Mode: 0 = HDMI mode with surround sound (up to 7.1ch) audio output 1 = HDMI mode with stereo (2ch) audio output 2 = DVI mode 3 ~ 5 = Not in use 6 = Use default EDID profile...
- Page 7 HVE-9002 HDSpider Cat.5 HDMI Sender with Local HDMI Output ™ 1. Input video format indicator [lights up for HDMI signal, lights off for DVI signal] 2. DIP switch [see table below] 3. HDMI IN: Connect a HDMI source with a HDMI male-male cable here 4.
- Page 8 Note for EDID (Extended Display Identification Data) learning 1. Don’t plug in HDMI cable to [HDMI In] when you want to restore default EDID or learn the display’s EDID. 2. Please connect the display which you want to read EDID to HDMI OUT so the HVE-9002 can learn the EDID information from the connected HDTV.
- Page 9 HVE-9003 HDSpider Cat.5 Cascadable HDMI Sender ™ 1. Input video format indicator [lights up for HDMI signal, lights off for DVI signal] 2. Signal Level: Adjust the 16-level equalization control corresponding to the transmission distance of receiving HDMI signals. For surround sound audio output, please adjust from 0-to-7 (longest-to-shortest transmission length).
- Page 10 HVE-9004 HDSpider 4-Port Cat.5 HDMI Sender ™ DIP Switch: Please see more detail in the table below HDMI INPUT: Connect to a HDMI source HDMI Signal OUTPUT 1 – 4: Link to each HDMI display via a Cat.5e/6 cable with HVE-9000, HVE-9003, or HVE-9900.
