- Page 1 HDSpider™ HDMI over Single Cat.5 Distribution Series HVE-9000 HVE-9001 HVE-9002 HVE-9003 HVE-9900 User Manual Ver.:1.0-0808...
-
Page 2: Table Of Contents
TABLE OF CONTENT p.2 Package Content p.3 Product Introduction p.4 Panel Description p.7 Installation p.12 Systematic Application Diagrams p.13 Frequently Asked Questions p.14 Specifications p.15 Notice... -
Page 3: Package Content
Package Content HVE-9000 HDSpider™ HDMI Cat.5 Receiver (Long) 1. HDSpider™ HDMI Cat.5 Receiver (Long) (HVE-9000) 2. 5V 2A DC Adapter 3. User Manual Introduction HVE-9001 HDSpider™ HDMI Cat.5 Sender 1. HDSpider™ HDMI Cat.5 Sender (HVE-9001) 2. 5V 2A DC Adapter 3. -
Page 4: Product Introduction
Note: The length depends on the characteristics and quality of the cables. Higher resolutions and longer transmission distances require low skew cables (<25ns/100m) for best performance. *single link of HVE-9000. For connection with HVE-9900, 1080p distance at minimum 15m. **single link at 480p resolution, with high quality, minimal delay skew Cat-6 cable... -
Page 5: Panel Description
Panel Description HVE-9000 HDSpider™ HDMI Cat.5 Receiver (Long) Front View HDMI-OUT HDMI OUT: Connect to a HDMI display with a HDMI M-M cable here. EQ: Adjust the 8-level equalization control knob to the received HDMI signals. 0 - 7 = strongest – weakest. It is recommended to adjust from 7 to 0 to find the optimal visual experience. -

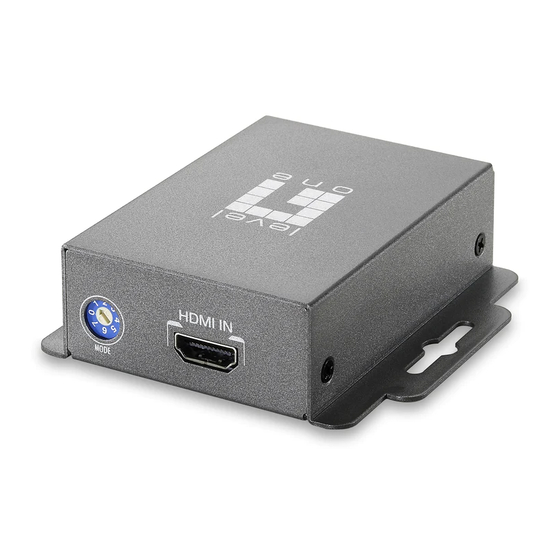

Page 6: Hve-9001 Sender Front & Rear View
2. The LED next to the rotary control knob turns off when the writing process is completed. 3. The HVE-9001 reads the EDID information from the HDMI socket of the connected HDTV, so please connect the display from which you want to read EDID to HDMI-OUT of the HVE-9000. Rear View... - Page 7 4. Audio out: Plug in a local speaker here 5. HDMI Out: Connect to a HDMI display with a HDMI M-M cable here 6. RJ-45 Out: Link to HVE-9003 for cascading; or link to HVE-9000 or HVE-9900 to another HDMI display with a Cat.5e/6 cable 7.
- Page 8 4. Audio out: Plug in a local speaker here 5. HDMI Out: Connect to a HDMI display with a HDMI M-M cable here 6. RJ-45 Out: Link to another HVE-9003 for cascading; or link to HVE-9000 or HVE-9900 to another HDMI display with a Cat.5e/6 cable 7.
-
Page 9: Installation
1. Connect HVE-9001 to your HDMI source (such as a Blu-ray Disc player) through a HDMI cable. 2. Connect HVE-9000 to your HDMI display (such as a LCD TV) through a HDMI cable. 3. Connect your CAT-5/5e/6 cable between HVE-9000 and HVE-9001. - Page 10 Extends HDMI signals to one display at shorter distance HVE-9900 & HVE-9001 1. Connect HVE-9001 to your HDMI source (such as a Blu-ray Disc player) through a HDMI cable. 2. Connect HVE-9900 directly to your HDMI display (such as a LCD TV). 3.
- Page 11 3. Connect to a HDMI source (such as a Blu-Ray Disc player) 4. Connect HVE-9002 to HVE-9003 (for cascading), to HVE-9000 (to HDTV at long range), or HVE-9900 (to HDTV at mid range) via RJ-45 Out by a Cat.5e cable.
- Page 12 3.5mm audio socket. 3. Connect to HVE-9003 via RJ-45 in by a Cat.5e cable. 4. Connect to next HVE-9003 (for cascading), to HVE-9000 (to HDTV at long range), or HVE-9900 (to HDTV at mid range) via RJ-45 out by a Cat.5e cable.
-
Page 13: Systematic Application Diagrams
Systematic Application Diagrams HVE-9002 & HVE-9003 with HVE-9000 & HVE-9900 HDMI source HDMI cable HDTV Speaker HVE-9002 Audio cable HDMI cable Cat.5e cable HDTV Speaker HVE-9003 Audio cable HDMI cable Cat.5e cable HDTV HVE-9003 Speaker Audio cable HDMI cable HDTV Cat.5e cable... -
Page 14: Frequently Asked Questions
15m under 1080p or 25m under 720p/1080i on monitor. resolution. If your application exceeds this transmission limit, please use HDSpider™ HDMI Cat.5 Receiver (Long) (HVE-9000) instead. There is no image on First please check all cable is properly installed. display, what could Secondly check display source is functioning correctly. -
Page 15: Specifications
Specifications Model Name HVE-9000 HVE-9001 HVE-9900 1x HVE-9000 1x HVE-9001 1x HVE-9900 1x 5V transformer 1x 5V transformer Package Contents 1x User Manual 1x User Manual 1x User Manual Video Bandwidth 1.65Gbps Resolution 480i – 1080p Transmission Length 60m under HD (720p/1080i) or 40m under Full HD (1080p) Audio channel 7.1-channel or stereo... -
Page 16: Notice
Notice Please read user manual carefully before operating the device. Please use the power adaptor accompanied with this product. Warranty does not cover for damages caused by pairing other power adaptor. Please check all connecting devices are properly grounded to avoid electric failure.
