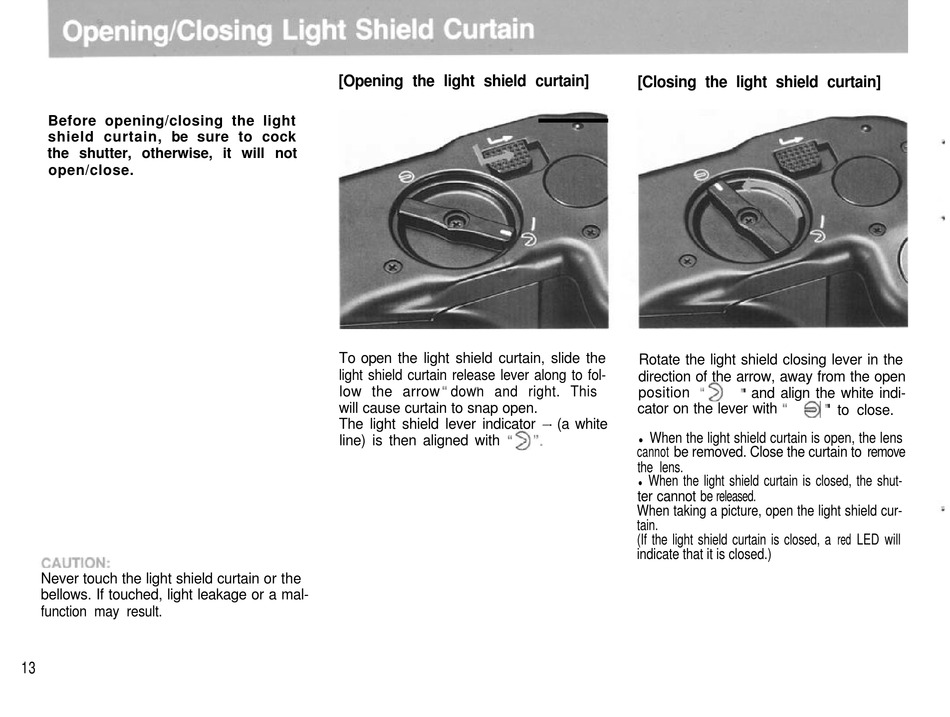

Opening/Closing Light Shield Curtain - Mamiya 6 User Manual

Before opening/closing the light
shield curtain, be sure to cock
the shutter, otherwise, it will not
open/close.
Never touch the light shield curtain or the
bellows. If touched, light leakage or a mal-
function may result.
13
[Opening the light shield curtain]
To open the light shield curtain, slide the
light shield curtain release lever along to fol-
low the arrow down and right. This
will cause curtain to snap open.
The light shield lever indicator - (a white
line) is then aligned with " 3 ".
[Closing the light shield curtain]
Rotate the light shield closing lever in the
direction of the arrow, away from the open
position " 2
cator on the lever with "
When the light shield curtain is open, the lens
l
cannot be removed. Close the curtain to remove
the lens.
When the light shield curtain is closed, the shut-
l
ter cannot be released.
When taking a picture, open the light shield cur-
tain.
(If the light shield curtain is closed, a red LED will
indicate that it is closed.)
