Summary of Contents for Mamiya 645 AFD

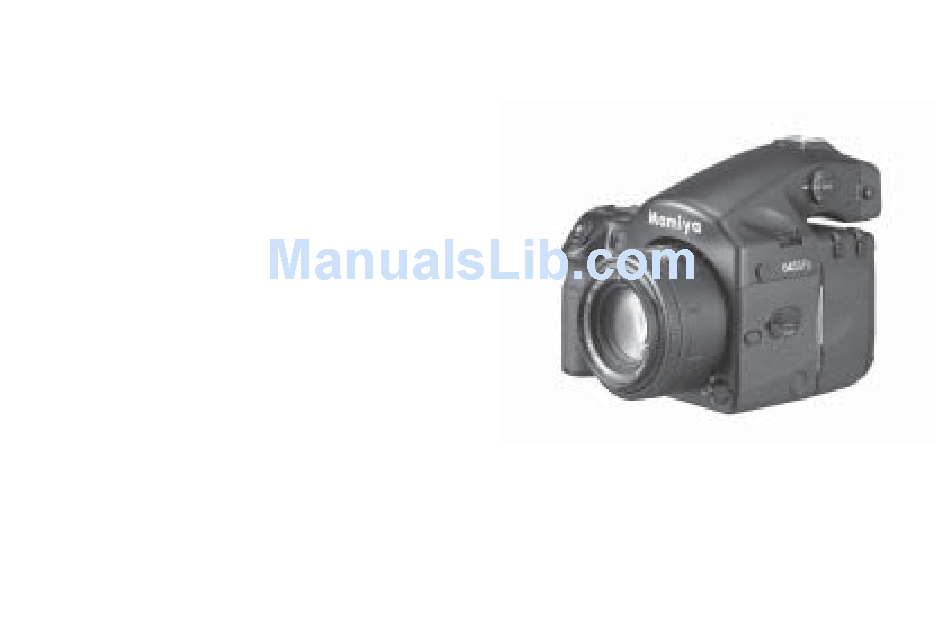

- Page 1 Mamiya 645 AFD Instruction Manual Companion for D i g i t a l P h o t o g r a p h y...
- Page 2 The second mode is after the shutter release button has been pressed. This is the Capture mode. At this time the Mamiya 645 AFD will start to act very differently when a digital back is attached. There is a whole new set of indicators that will be displayed on the LCD displays of the camera.
- Page 3 External LCD This display will appear before the shutter has been released (Normal mode). At this point the Mamiya 645AFD will act as if there is a film magazine attached and will display shutter speed and aperture respec- tively. This indication will not appear under conditions 4b, 5 and 6.
- Page 4 Condition #4 Internal LCD External LCD After CaP db is displayed these indicators may appear (After Capture mode). It confirms the digital back is storing an image and that there are certain number of frames left in the memory of the digital back. This indicator shows the remaining frames left by displaying Stor 88 (where 88 is a number between 99 and 1).
- Page 5 7) will be displayed and blink for 3 seconds. Condition #7 If the digital back is connected to the Mamiya 645AFD and the connec- tion to the host computer is not installed, this will be displayed when the shutter release is pressed. This will also appear under the previous...
- Page 6 M A M I YA A M E R I C A C O R P O R AT I O N 8 Westchester Plaza, Elmsford, NY 10523 Phone: (914) 347-3300 · Fax: (914) 347-3309 E-mail: info@mamiya.com...
