Mamiya 645 Instructions

Mamiya 645 Instructions

Power drive grip

Advertisement

Quick Links

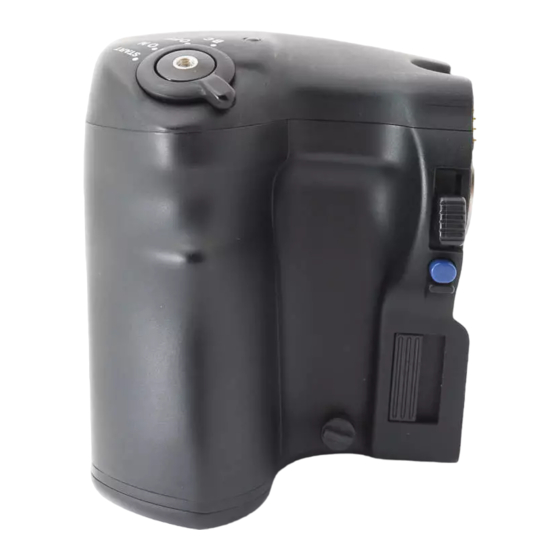

Power Drive Grip WG401
English Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the 645 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mamiya 645

  • Page 1 Power Drive Grip WG401 English Instructions...
  • Page 2 Lens Power Connector. Specifications Power Source 6 AA batteries External Power Source Mamiya 9v AC Adapter Film Transport Ratio Approx. 2/frames per sec. in focal-plane mode Shutter Release Button Equipped with a cable release socket By pressing the Shutter Release Button, or by pushing the Operating Indicator to ‘START’, the...
  • Page 3 Installing the Batteries Using a coin or suitable flat-blade screwdriver, loosen the Battery Cartridge Attaching Screw (12), and then take the cartridge out of the Power Drive Grip, Fig. 1. Install fresh AA batteries making sure to match the polarity of the batteries with the polarity symbols on the Battery Cartridge (11).
  • Page 4 For continuous-frame shooting, push and hold down the Power Grip’s Shutter Release Button (3). To continuous shooting, release the Power Drive Grip’s Shutter Release Button (3). The camera’s Shutter Release Button is interlocked with the Power Drive Grip, so you can use it to fire the shutter in the same way you use the Shutter Release Button (3) on the Power Drive.

This manual is also suitable for:

Wg401
