Page 1: User Manual

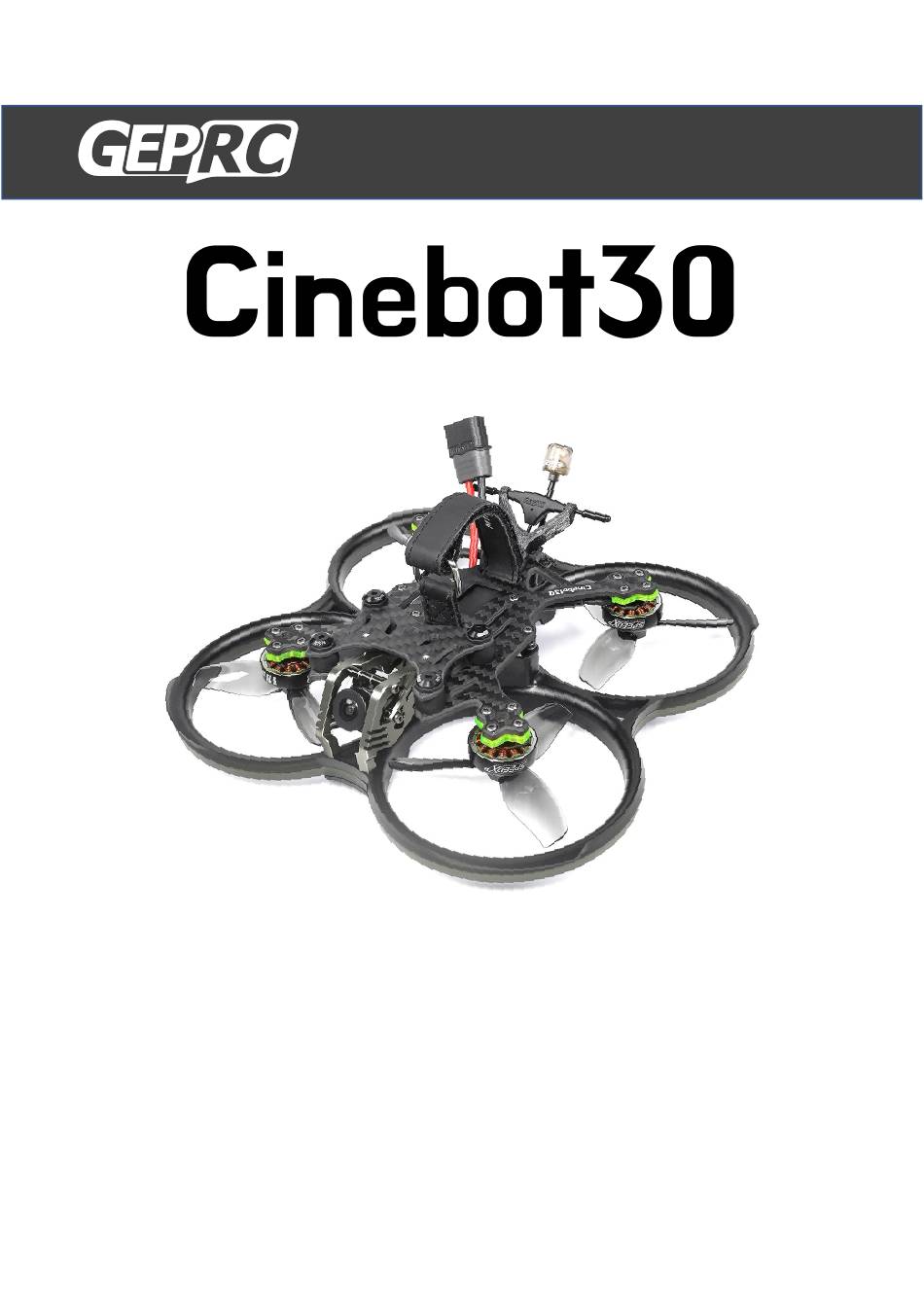

User Manual 1 / 21... -
Page 2: Table Of Contents
Catalog User Manual ..............................1 Overview ............................... 3 Specifications： ............................4 Features: ..............................5 Warranty Policy: ............................6 PS:................................6 DJI Digital FPV System: ..........................7 Bind FrSky R-XSR: ............................8 Bind TBS NanoRX: ............................9 Bind ELRS: ..............................10 Install Betaflight: ............................11 ARM(DJI Transmitter): ..........................12 OpenTX Transmitter ..........................13 IRC Tramp: ..............................15 Install Silicone Pad,Landing pad:...................... -
Page 3: Overview

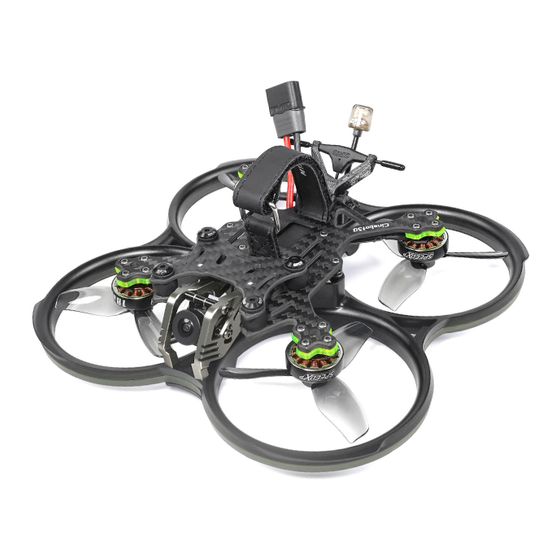

Overview Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage. Cinebot30 is a new generation of Cinematic FPV drone developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. -
Page 4: Specifications
Base plate thickness: 1.5mm FC : GEP-F722-45A AIO V2 MCU: STM32F722 IMU: ICM-42688-P VTX:Vista Nebula Pro/Runcam Link/Walksnail Avatar/GEPRC RAD 1W /DJI O3 air unit Propeller: Hq prop T76mm Antenna: 5.8G Battery Interface: XT60H-M Motor: SPEEDX2 1804-2450KV（6S Version）/ SPEEDX2 1804-3450KV（4SVersion） Weight: 222g (vista HD pnp)/Nebula Pro version 222.5g/Avatar version 221g/ Analog version 209.2g/ Link Wasp version 222.5g (excluding the battery, the above are TBS... -
Page 5: Features
8. With the new GEP-F722-45A AIO V2, stable performance, more secure flight 9. Four kinds of FPV system with the program, choose to belong to your first-person view 10. Tuned by GEPRC professionals, delicate and silky flying feel 5 / 21... -
Page 6: Warranty Policy
Warranty Policy: 1.If Quadcopter is damaged or unknow issue,please contact GEPRC and send it back . We'll do our best to get this taken care of quickly for you. 2.Any impact damage, product liquid damage, high temperature burn or other artificial damage is not covered by warranty. -
Page 7: Dji Digital Fpv System
DJI Digital FPV System: Turn the power of the FPV Goggles, DJI FPV Transmitter,and Quadcopter. Press the FPV Goggles bind button twice, and it will beep to indicate the binding state. Bind Press VISTA bind button,the indicator light turn red ,indicating that it is binding.Then the indicator light turns yellow, means the binding is successful,and the FPV Goggles will display the received picture. -
Page 8: Bind Frsky R-Xsr
Bind FrSky R-XSR: 1.For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the MENU – MODEL SETUP – PAGE 2, choose Internal RF, and select BIND. 2.Turn on the receiver while holding the bind button on the receiver, release the button and the bule,red,yellow LED on . -
Page 9: Bind Tbs Nanorx
Bind TBS NanoRX: 1.For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the TOOLS – CROSSFIRE SETUP – XF Micro TX ,and select Bind. 2.Turn on the receiver while holding the bind button on the receiver, release the button and the green LED on flash .and then holding the button for 8 second ,and release. -
Page 10: Bind Elrs
Bind ELRS: GEPRC’s ELRS 868MHz, ELRS 915MHz and ELRS 2.4G receivers have the same operation method for frequency alignment. 1.When the receiver is powered on and off three times continuously (1 second interval), the blue light of the receiver indicator will double flash continuously, indicating that the receiver has entered the frequency pairing status. -
Page 11: Install Betaflight
Install Betaflight: Although your Quadcopter comes from the factory nearly completely ready to fly, you still need to install betaflight to facilitate your subsequent use of betaflight for debugging. Installation package download address: https://github.com/betaflight/betaflight-configurator/releases Enter the web page, pull to the bottom, and select the appropriate installation package to download. -
Page 12: Arm(Dji Transmitter)
ARM(DJI Transmitter): With DJI FPV Transmitter, the toggle switch is set at the factory. The corresponding functions of each switch are as follows: AUX1（ARM） AUX2（MODES） AUX3（BEEPER） AUX4（Vacancy） DJI toggle switches are all three sections. If you move the Yellow cursor of the corresponding aux channel of the switch, the corresponding function will be turned on when you move to the set range. -
Page 13: Opentx Transmitter
OpenTX Transmitter The transmitter of openTX system needs to check the AUX channel. For Taranis X9D/X9D Plus/X9E and Taranis Q X7, turn on the transmitter, go to the MENU –MIXS and view the current AUX channel settings. CH1-CH4 corresponds to four channels of rocker CH5（SF）AUX1（ARM） CH6（SG）AUX2（MODES）... - Page 14 You can name the aux channel, or set the toggle switches you want, and exit and save it. 14 / 15...
-
Page 15: Irc Tramp
IRC Tramp: Turn on the transmitter, THR middle, YAW left, PITCH up, enter the OSD menu. The PITCH moves the cursor up and down, and the ELE right to enter the next item. Now, save and exit. 15 / 15... - Page 16 Frequency table： 16 / 15...
-
Page 17: Install Silicone Pad,Landing Pad
Install Silicone Pad,Landing pad: 17 / 15... -
Page 18: Install Propellers
Although the propeller of cinebot30 are installed in the factory, the direction of the propeller should be checked before taking off. Although the blades of the CINEBOT30 have been installed in the factory, it is necessary to check the direction, positive and negative of the blades before takeoff. -
Page 19: Quick Disassembly Scheme
Quick disassembly scheme It is only necessary to remove 6 screws of the arm plate to open the internal space for easy maintenance and replacement. 19 / 15... -
Page 20: Pre-Flight Check
Pre-flight Check: In many cases, the cause of a Quadcopter crash is not checked before takeoff. For the sake of safety, we suggest that you check before every flight.The steps are as follows： 1.Turn on the transmitter and select the correct mode. Please confirm that the arming switch on the transmitter is in the “disarmed”position and throttle is all the way down;... -
Page 21: Includes
Includes: 1 x Cinebot30 Quadcopter 2 x HQProp T76MM（pair） 1 x Battery strap M15*200mm 1 x Battery strap M15*220mm 2 x Battery Silicone Pads 1 x Set of screws 1 x L-shaped screwdriver 1.5mm 1 x L-shaped screwdriver 2mm 1 x Antenna fixed tube（pair）...
