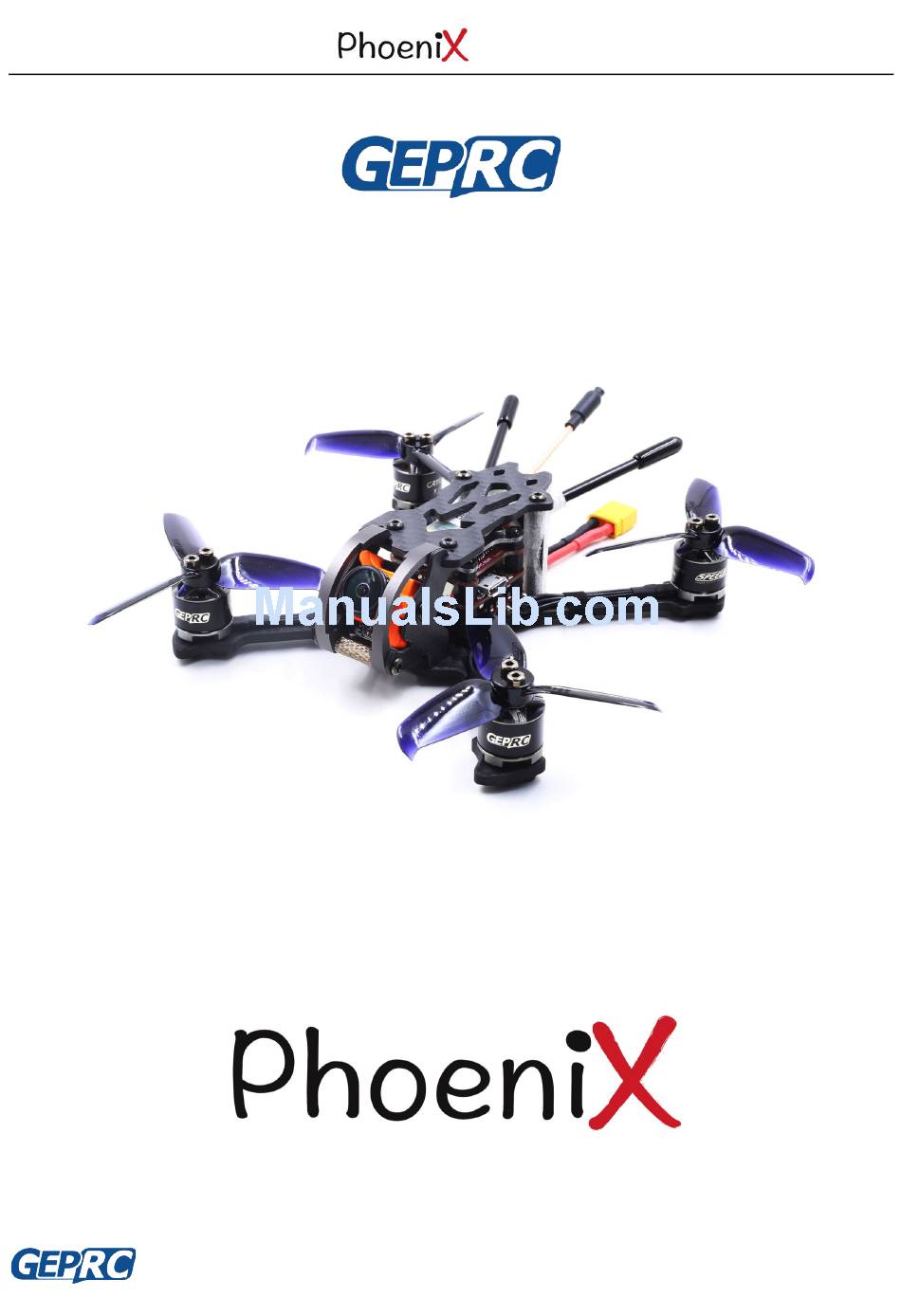

- Page 1 Manuals Quickstart Manual V1.0 2018/07/1 - 1 - Phoenix...
- Page 2 The operator of the RC Quadcopter assumes all responsibility and liability that result from the correct or incorrect operation of the RC Quadcopter. - 2 - Phoenix...
-
Page 3: Table Of Contents

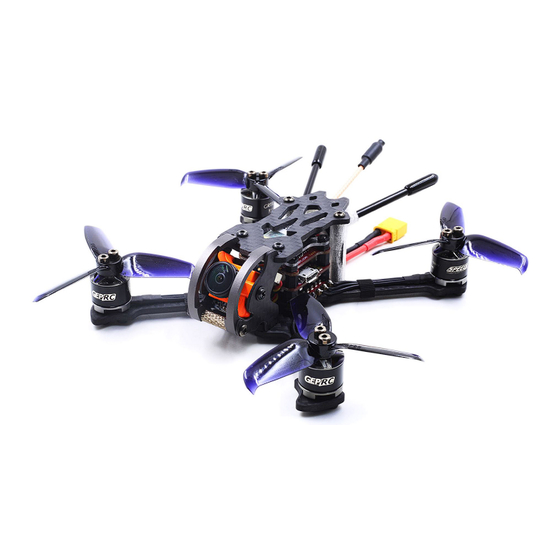

- 10 - 5、 SET THE RADIO - 11 - 6、 HOW TO UNLOCK - 13 - 7、 SET UP THE VTX - 13 - 8、 INSTALL PROPELLER - 15 - 9、 CONTACT US - 15 - - 3 - Phoenix... - Page 4 Manuals Summary: We are so proud of launching our newly designed GEP-PX2.5 Phoenix which is a mini size drone for free style maneuver or indoor/outdoor racing. Three different size can satisfy your flying style. They are 2 inches, 2.5inches and 3 inches. All are capable of using from 450mAh to 650mAh Li-Po battery.
- Page 5 Manuals Motor:GR1106 4500kv Propeller:Gemfan 2540 (8 pairs) Weight: 93.4 grams without battery or props Receiver: Frsky XM Plus (ONLY BNF INCLUDE) Frame: GEPRC GEP-Phoenix Carbon:Full 3K carbon fiber Twill CNC:High precision CNC 7075 Wheelbase: 125mm Thickness of bottom plate: 3mm...
- Page 6 3. Using STABLE F4 Tower (GEP-F4-BL_S12a-VTX58200-m) V1.4 small flying Tower, simple installation and STABLE function 4. The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew 5. High efficiency GR1106 4500kv motor, with Gemfan 2540 propeller 6.
-
Page 7: 1、 Basic Knowledge
- The GEP-PX2.5 is using the Betaflight firmware flight control, and the introduction of Betaflight can be referred to the second part. - The way to type the rudder, as shown below： - The order and direction of the motor: - 7 - Phoenix... -
Page 8: 2、 Install Betaflight
Open the screws of the Elegant, open the top vtx board, and you can see the flight control board on the second floor. n The flight control board will have three welding locations: 5V,GND,S.Bus, Welding in the corresponding position n Finally, fix the receiver and lock the corresponding screw n As shown in the picture below: - 8 - Phoenix... - Page 9 Manuals - 9 - Phoenix...
-
Page 10: 4、 Bind The Recevier
D8： D8R, D4R and other D series receiver, V series ii receiver and X8R, X6R D8 mode LR12： L9R receiver n 3：Move the cursor to the "Bind" option, and click ENTER. "Bind" is in a scintillating state and is entering the bind the receiver state - 10 - Phoenix... -
Page 11: 5、 Set The Radio
Channel 5(2 switch) Unlock 0 unlock , 1 lock Channel 6(3 switch) Control Drone posture 0 Rate , 1 Angle , 2 Horizon Channel 7(2 switch) Control Buzzer 0 Buzzer on，1 Buzzer off Set up as picture below: - 11 - Phoenix... - Page 12 Manuals - 12 - Phoenix...
-
Page 13: 6、 How To Unlock
5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band H 5362 5400 5436 5473 5510 5547 5584 5620 Band R 5658 5695 5732 5769 5806 5843 5880 5917 - 13 - Phoenix... - Page 14 How to turn VTX on or off: In the working state, quickly double-click the set button, RED / GREEN / BLUE sync flash, VTX can be turned off, and also quickly double-click of the key to turn on the VTX output. - 14 - Phoenix...
-
Page 15: 8、 Install Propeller
8、 Install Propeller The propeller is divided into two types: Left and Right. Install as shown. Notice the positive and negative directions 9、 Contact us Site :http://www.geprc.com Email:info@geprc.com Facebook page: https://www.facebook.com/geprc/ Facebook Group: https://www.facebook.com/groups/566794893526546/ Instagram: https://www.instagram.com/geprc/ - 15 - Phoenix...
