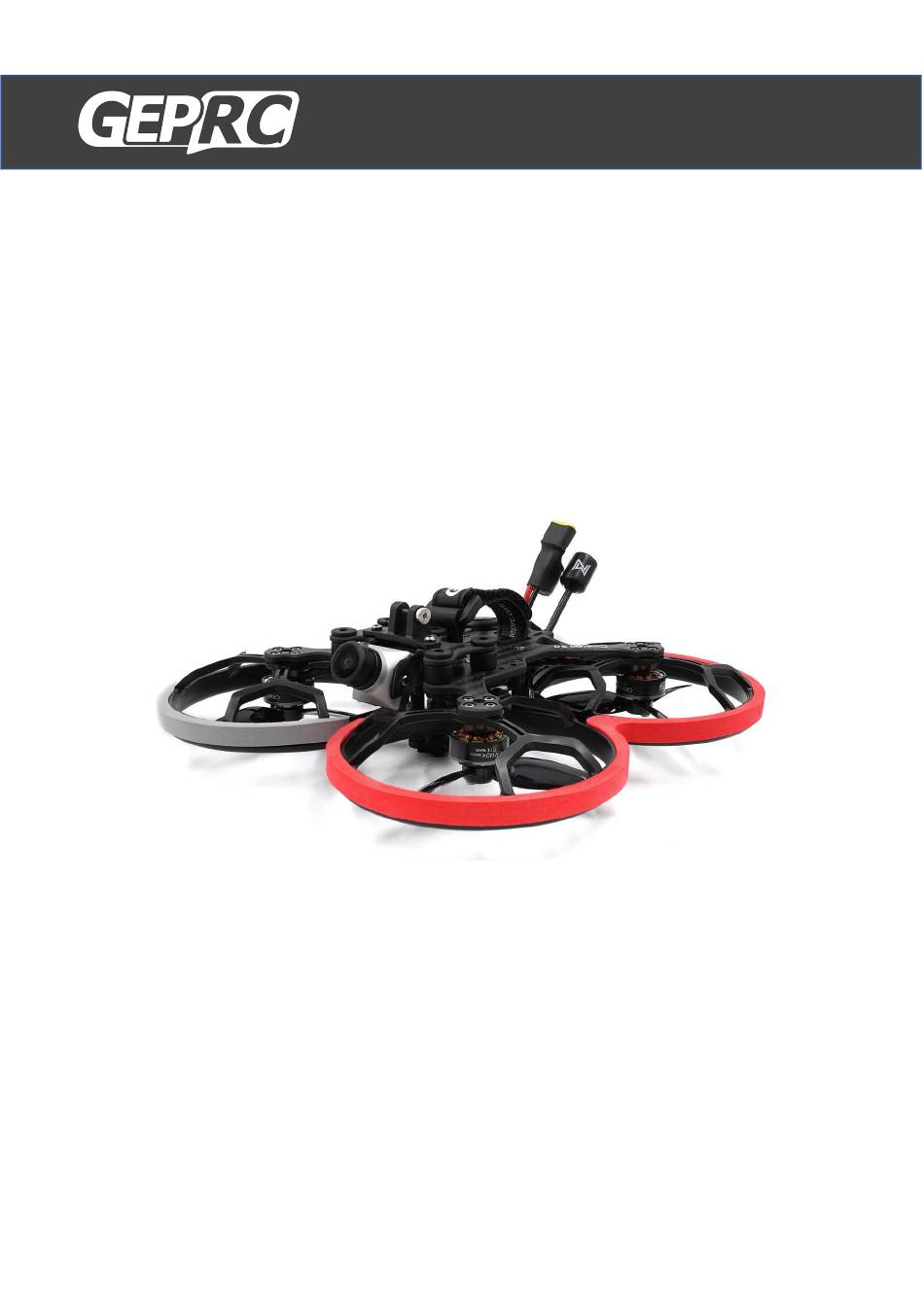

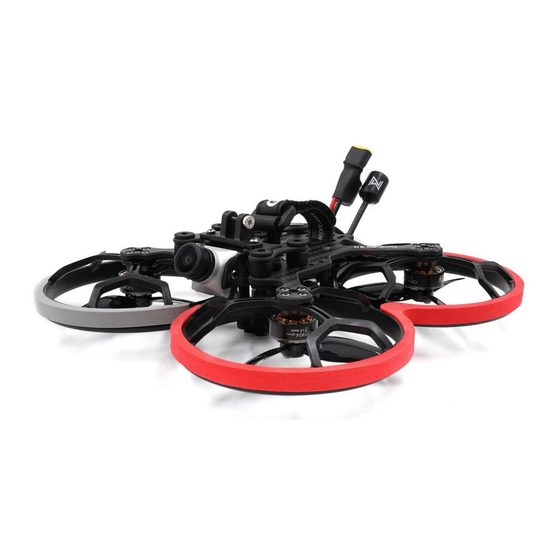

  • Page 1 CineLog30 User Manual & Setup Guide V1.0...
  • Page 2: Table Of Contents

    Contents Overview: ........................... 3 Specification: ........................3 Features: ..........................3 Warranty Policy: ......................... 4 PS: ............................4 DJI Digital FPV System: ......................5 Bind TBS NanoRX: ........................6 Bind FrSky R-XSR: ........................7 Install Betaflight: ........................8 Install Drivers: ........................8 ARM(DJI Transmitter): .......................
  • Page 3: Overview

    CineLog30 VISTA Polar and CineLog30 Analog. CineLog30 is developed on the basis of CingLog25. It has a stronger power output with 1404-3850kv motor and T3 x 3 x 3 propellers.Ultra light fuselage weight, and CineLog VISTA Nebula Nano equipped with Naked GoPro Hero 8 Camera and 4S660mAh battery take-off weight is only 249g.The duration of the flight is 7 minutes.The INSTA 360 GO2 camera also...
  • Page 4: Warranty Policy

    Warranty Policy: 1. If Quadcopter is damaged or unknow issue,please contact GEPRC and send it back . We'll do our best to get this taken care of quickly for you. 2. Any impact damage, product liquid damage, high temperature burn or other artificial damage is not covered by warranty.
  • Page 5: Dji Digital Fpv System

    DJI Digital FPV System: 1. Turn the power of the FPV Goggles, DJI FPV Transmitter,and Quadcopter. Press the FPV Goggles bind button twice, and it will beep to indicate the binding state. Bind Button 2. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then the indicator light turns yellow, means the binding is successful,and the FPV Goggles will display the received picture.
  • Page 6: Bind Tbs Nanorx

    Bind TBS NanoRX: 1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the TOOLS – CROSSFIRE SETUP – XF Micro TX ,and select Bind. 2. Turn on the receiver while holding the bind button on the receiver, release the button and the green LED on flash .and then holding the button for 8 second ,and release.
  • Page 7: Bind Frsky R-Xsr

    Bind FrSky R-XSR: 1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the MENU – MODEL SETUP – PAGE 2, choose Internal RF, and select BIND. 2. Turn on the receiver while holding the bind button on the receiver, release the button and the bule,red,yellow LED on .
  • Page 8: Install Betaflight

    Install Betaflight: Although your Quadcopter comes from the factory nearly completely ready to fly, you still need to install betaflight to facilitate your subsequent use of betaflight for debugging. Installation package download address: https://github.com/betaflight/betaflight-configurator/releases Enter the web page, pull to the bottom, and select the appropriate installation package to download.
  • Page 9: Arm(Dji Transmitter)

    ARM(DJI Transmitter): With DJI FPV Transmitter, the toggle switch is set at the factory. The corresponding functions of each switch are as follows: SAAUX1(ARM) SBAUX2(MODES) SCAUX3(BEEPER) SDAUX4(Vacancy) DJI toggle switches are all three sections. If you move the Yellow cursor of the corresponding aux channel of the switch, the corresponding function will be turned on when you move to the set range.
  • Page 10: Opentx Transmitter

    OpenTX Transmitter: The transmitter of openTX system needs to check the AUX channel. For Taranis X9D/X9D Plus/X9E and Taranis Q X7, turn on the transmitter, go to the MENU –MIXS and view the current AUX channel settings. CH1-CH4 corresponds to four channels of rocker CH5(SF)AUX1(ARM)...
  • Page 11 You can name the aux channel, or set the toggle switches you want, and exit and save it. 11 / 15...
  • Page 12: Install Silicone Pad,Landing Pad

    Install Silicone Pad,Landing pad: 12 / 15...
  • Page 13: Install Propellers

    Install Propellers: Although the propeller of cinelog30 are installed in the factory, the direction of the propeller should be checked before taking off. 13 / 15...
  • Page 14: Pre-Flight Check

    Pre-flight Check: In many cases, the cause of a Quadcopter crash is not checked before takeoff. For the sake of safety, we suggest that you check before every flight.The steps are as follows: 1. Turn on the transmitter and select the correct mode. Please confirm that the arming switch on the transmitter is in the “disarmed”position and throttle is all the way down;...
  • Page 15: Include

    Include: 1 x CineLog30 HD VISTA Polar Quadcopter 1 x Battery strap 20x200mm 2 x T3x3x3 propellers (pairs) 2 x Propeller guards 2 x EVA damping rings of guards 2 x EVA landing pads 2 x Battery Silicone Pads 1 x Antenna fixed tube 1 x Screw package 1 x TBS receiver mount(PNP)...
