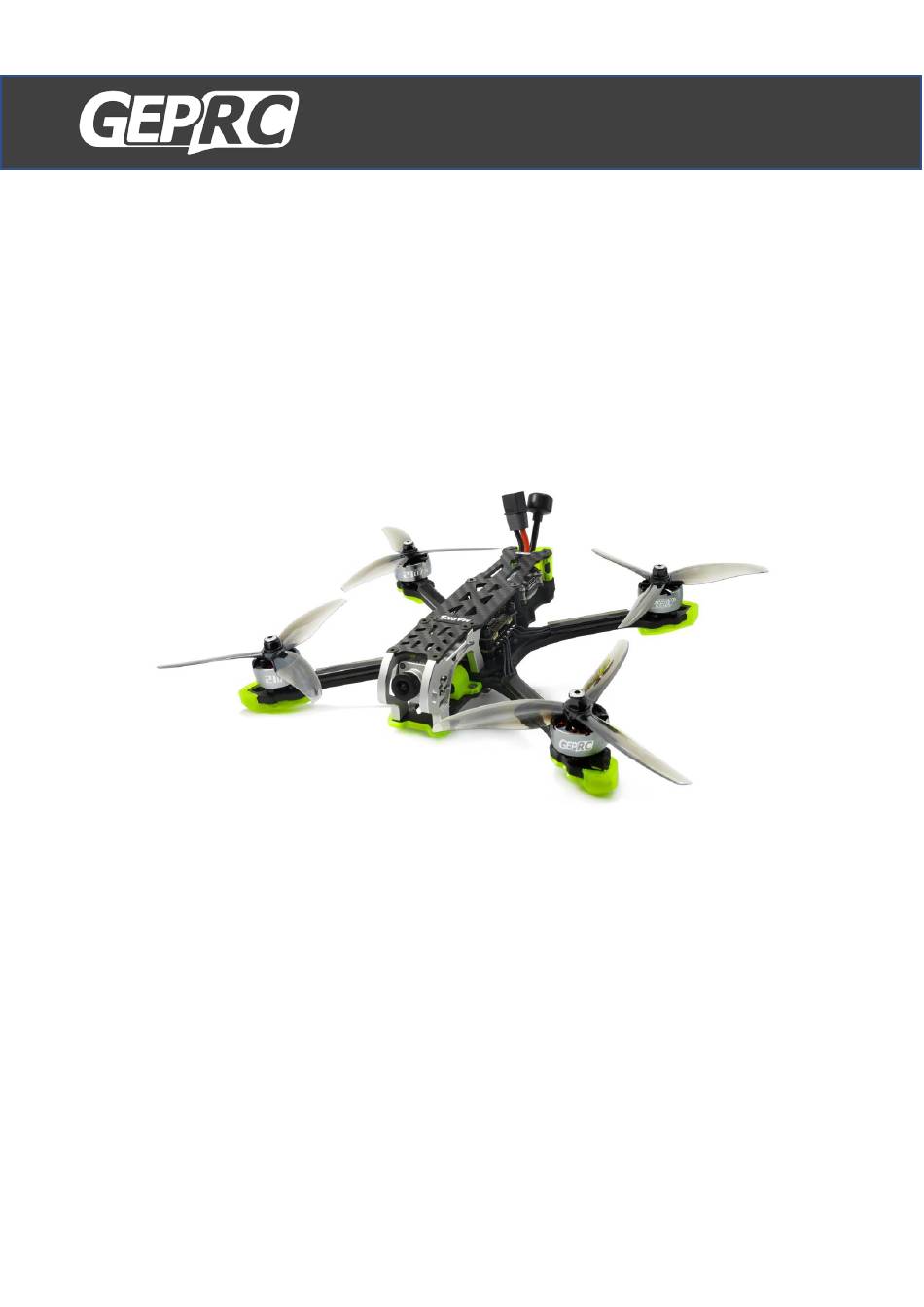

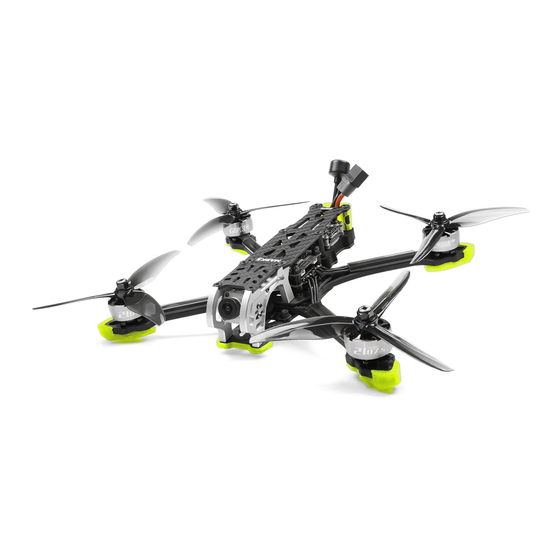

- Page 1 MARK5 User Manual &Setup Guide V1.0 1 / 19...
-
Page 2: Table Of Contents
PS: ................................5 DJI Digital FPV System: ..........................6 Bind FrSky R-XSR: ............................7 Bind TBS NanoRX: ............................. 8 Bind GEPRC ELRS Receiver ........................9 Install Betaflight： ........................... 10 Install Betaflight： .......................... 10 Install Drivers: ........................... 10 ARM(DJI Transmitter): ..........................11 OpenTX Transmitter: .......................... -
Page 3: Summary
GoPro8/9/10, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun! We’ve been pursuing for lighter weight, better flying experience, and more functionality for... -
Page 4: Features
The HD version comes with the DJI HD System & the original Air Unit cam. A variety of receiver choices including our brand new ExpressLRS Rx. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed. -
Page 5: Warranty Policy
Warranty Policy: If Quadcopter is damaged or unknown issue,please contact GEPRC. We'll do our best to get this taken care of quickly for you. Any impact damage, product liquid damage, high temperature burn or other artificial damage is not covered by warranty. -
Page 6: Dji Digital Fpv System
DJI Digital FPV System: 1. Turn the power of the DJI FPV Goggles, DJI FPV Transmitter,and Quadcopter. Press the DJI FPV Goggles bind button twice, and it will beep to indicate the binding state. Bind Button 2. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then the indicator light turns yellow, means the binding is successful,and the FPV Goggles will display the received picture. -
Page 7: Bind Frsky R-Xsr
Bind FrSky R-XSR: For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the MENU – MODEL SETUP – PAGE 2, choose Internal RF, and select BIND to enter the binding state.. Turn on the receiver while holding the bind button on the receiver, release the button and the bule,red,yellow LED on . -
Page 8: Bind Tbs Nanorx
Bind TBS NanoRX: 1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the TOOLS – CROSSFIRE SETUP – XF Micro TX ,and select Bind to enter the binding state.. 2. Turn on the receiver while holding the bind button on the receiver, release the button and the green light on flash .and then holding the button for 8 second ,and release. -
Page 9: Bind Geprc Elrs Receiver
Bind GEPRC ELRS Receiver GEPRC's ELRS 868MHz, ELRS 915MHz, and ELRS 2.4G receivers have the same binding methods 1. Power on and off the receiver three times in a row (with an interval of 1 second), the blue light of the receiver flashes continuously twice, indicating that the receiver has entered the binding state. -
Page 10: Install Betaflight
Install Betaflight： Install Betaflight： Although your Quadcopter comes from the factory nearly completely ready to fly, you still need to install betaflight to facilitate your subsequent use of betaflight for debugging. Installation package download address: https://github.com/betaflight/betaflight-configurator/releases Enter the web page, pull to the bottom, and select the appropriate installation package to download. -
Page 11: Arm(Dji Transmitter)
ARM(DJI Transmitter): With DJI FPV Transmitter, the toggle switch is set at the factory. The corresponding functions of each switch are as follows: SAAUX1（ARM） SBAUX2（MODES） SCAUX3（BEEPER） SDAUX4（Vacancy） DJI toggle switches are all three sections. If you move the Yellow cursor of the corresponding aux channel of the switch, the corresponding function will be turned on when you move to the set range. -
Page 12: Opentx Transmitter
OpenTX Transmitter: The transmitter of openTX system needs to check the AUX channel. For Taranis X9D/X9D Plus/X9E and Taranis Q X7, turn on the transmitter, go to the MENU –MIXS and view the current AUX channel settings. CH1~CH4 corresponds to four channels of rocker CH5（SF）AUX1（ARM）... - Page 13 4. You can name the aux channel, or set the toggle switches you want, exit and save it. 13 / 19...
-
Page 14: Irc Tramp (Analog)
IRC Tramp (Analog): Turn on the transmitter,THR middle,YAW left,PITCH up,enter the OSD menu. The PITCH moves the cursor up and down, and the ELE right to enter the next item. Finally,save and exit. 14 / 19... - Page 15 VTX Frequency Table: 15 / 19...
-
Page 16: Install Silicone Pad
Install Silicone Pad: 16 / 19... -
Page 17: Install Propellers
Install Propellers: Although the propeller of MARK5 are installed in the factory, the direction of the propeller should be checked before taking off. 17 / 19... -
Page 18: Pre-Flight Check
Pre-flight Check: In many cases, the cause of a Quadcopter crash is not checked before takeoff. For the sake of safety, we suggest that you check before every flight.The steps are as follows： 1. Turn on the transmitter and select the correct mode. Please confirm that the arming switch on the transmitter is in the “disarmed”position and throttle is all the way down;... -
Page 19: Include
Include: 1 x MARK5 Quadcopter 4 x Freestyle 4S propellers (pairs) 1 x Battery strap M15x250mm 2 x Battery strap M20x220mm 1 x Battery strap M20x250mm 2 x Battery Silicone Pads 1 x Camera cage carbon top plate 1 x 3D print mountings combination...
