Summary of Contents for GEPRC Mark2

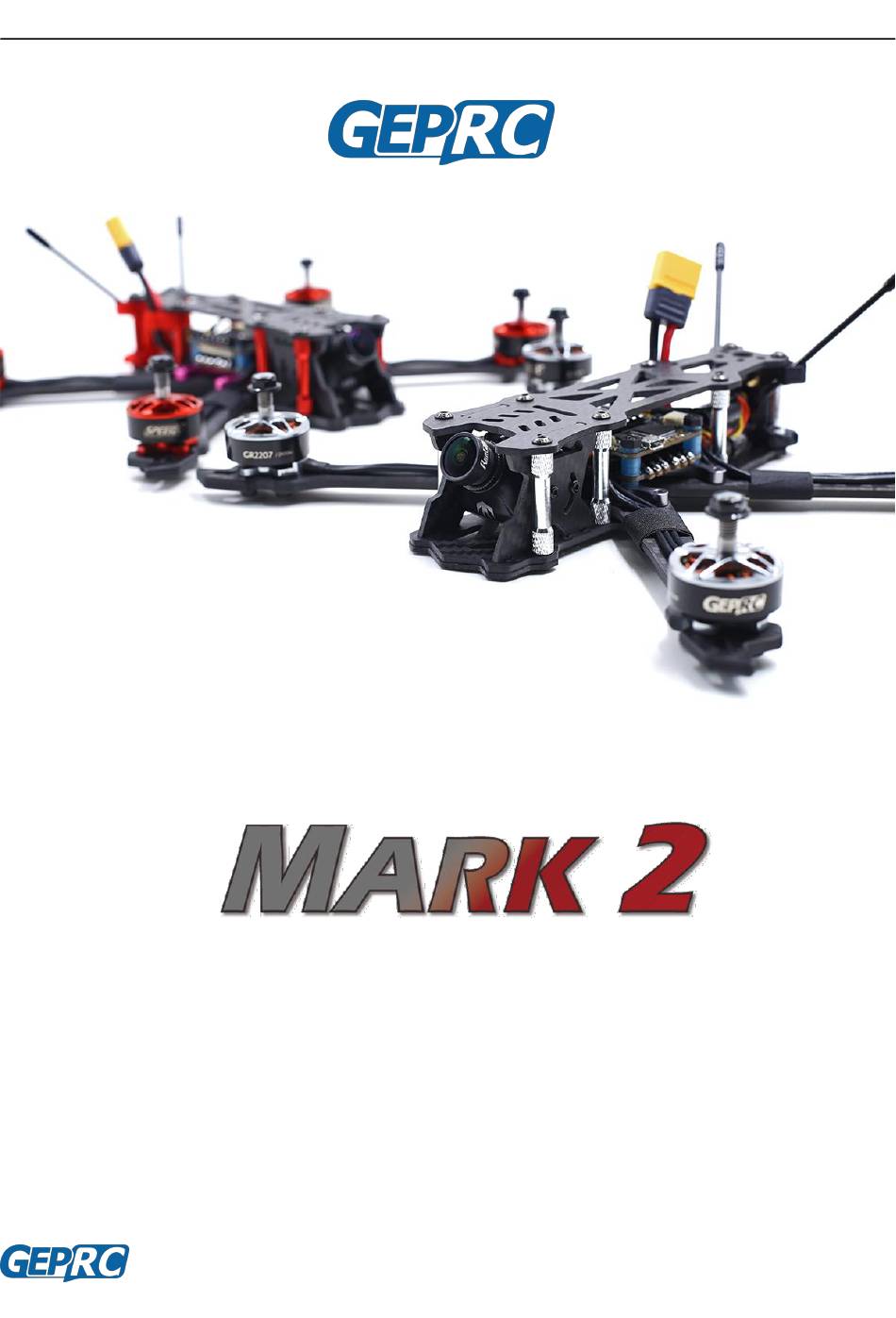

- Page 1 Mark2 Manuals Quickstart Manual V1.0 2018/08/1 - 1 - Mark2...
- Page 2 Mark2 Manuals Warning, disclaimer: CAUTION:This radio controlled RC Quadcopter is not a toy This product is for a radio controlled (RC) quadcopter. Improper operation,maintenance or assembly can potentially cause a RC quadcopter to pose a danger to persons or objects including...
-
Page 3: Table Of Contents
Mark2 Manuals Contents - 6 - 1、 BASIC KNOWLEDGE - 7 - 2、 INSTALL BETAFLIGHT - 7 - 3、 INSTALL THE RECEIVER - 9 - 4、 BIND THE RECEVIER - 10 - 5、 SET THE RADIO - 12 - 6、... -
Page 4: Specifications
2.4G and 5.8G and fitting of rear LED assembly. Colourful LED give you a cool feeling at night flying. Mark2 （BNF/PNP） Include Mark 2 Frame,SPAN F4 40ATower(F405 flight controller, ESC BLHeli_s 40A, VTX 5.8Ghz 0/25/200/600mW),Pagoda2 RHCP antenna, RunCam Swift2 2.1mm camera,Equipped with multiple 3D printing accessories.The overall performance is assembled and debugged by the... - Page 5 Mainstream Freestyle frame, mechanical appearance design Use SPAN F4 Tower AIO fly Tower latest version, function is more optimized The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew High efficiency GR-2207 2400kv motor, with GEP-5040 propeller, achieve perfect output...
-
Page 6: Basic
1、 Basic knowledge - The Mark2 is a 5 inch propeller drone. This is not a toy. If done incorrectly, it can harm the human body. - The Mark2 is using the Betaflight firmware flight control, and the introduction of Betaflight can be referred to the second part. -
Page 7: Install
Mark2 Manuals 2、 Install Betaflight Betaflight is an open source flight control procedures, specific introduction can refer to website: https://github.com/betaflight for the firmware required by Elegant, please click the following link to download the firmware betaflight_3.2.5_OMNIBUSF4SD.hex name: Latest version of firmware download website:https://github.com/betaflight/betaflight/releases... - Page 8 Mark2 Manuals - 8 - Mark2...
-
Page 9: Bind The
Mark2 Manuals 4、 Bind the Recevier Each manufacturer's receiver is not identical to the frequency, now take the r-xsr receiver of Frsky as an example. Other manufacturers' receivers please refer to the corresponding manufacturer's frequency information. 1：Power on X9D —— Short press MENU —— Press PAGE turn to second page(such as below picture) ... -
Page 10: Set The
Mark2 Manuals Bind order： Press F/S button(The Receiver) —— Put through power supply —— The light of the receiver green, red light flash——Press ENTER at Frsky X9D “Bind”—— Unplug the power and rewire (he light of the receiver green, red light flash, That’s ok)。... - Page 11 Mark2 Manuals - 11 - Mark2...
- Page 12 Mark2 Manuals 6、 How to unlock Note: when the test motor turns, the propeller must be unloaded Unlock type The throttle to the minimum Knock down 5 channels to unlock 7、 Set up the VTX Set the Channel. In standby mode, press and hold the key for 3 seconds, the blue LED flashes, short press, change the channel value.Every time 1 press will change the CH, followed by 1CH to 8CH cycles.
- Page 13 Mark2 Manuals VTX LED display 5.1. BLUE: Frequency channel display, the time of flash represents 1 to 8 channels, 1 = CH1,2 = CH2, ... 8 = CH8. 5.2. GREE: Frequency Band display, the number of flashes represents the frequency group from A to R, 1=A, 2=B……6=H...
-
Page 14: Contact
Mark2 Manuals 8、 Install Propeller The propeller is divided into two types: Left and Right. Install as shown. Notice the positive and negative directions 9、 Contact us Site :http://www.geprc.com Email:info@geprc.com Facebook page: https://www.facebook.com/geprc/ Facebook Group: https://www.facebook.com/groups/566794893526546/ Instagram: https://www.instagram.com/geprc/ - 14 -...
