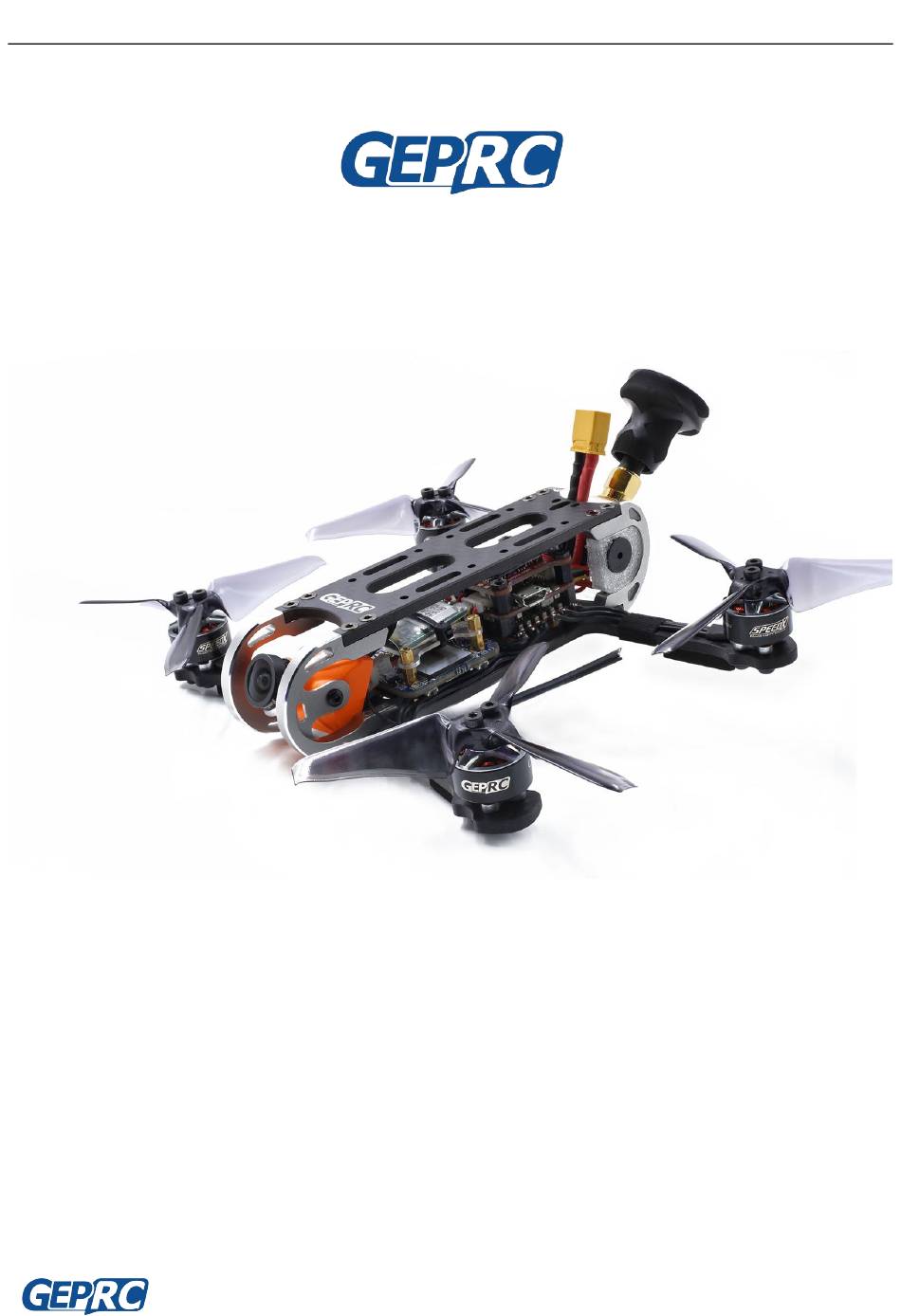

- Page 1 Cygnet Manual Cygnet Quickstart Manual V1.0 2018/11/3 - 1 - Cygnet...
- Page 2 Cygnet Manual Warning and disclaimer: CAUTION:This radio controlled RC Quadcopter is not a toy This product is for a radio controlled (RC) quadcopter. Improper operation,maintenance or assembly can potentially cause a RC quadcopter to pose a danger to persons or objects including but not limited to the possibility of causing serious physical injury an even death Moving components can present a hazard to opertors,and anyone or anything that could be in the flying area of the RC Quadcopter.
-
Page 3: Table Of Contents
Cygnet Manual Contents 1、 BASIC KNOWLEDGE ..............................- 6 - 2、 INSTALL BETAFLIGHT ..............................- 7 - 3、 INSTALL THE RECEIVER ............................... - 8 - 4、 BIND THE RECEVIER ..............................- 11 - 5、 SET THE RADIO................................. - 13 - 6、... - Page 4 Cygnet integrated the Runcam Split Mini 2 with a great video 1080P/60fps . For better view effect, there is no propeller shadow in the view. The Cygnet 3 also can freestyle flying, GEP-GR1206 4500kv provides powerful power, combined with 3024 propeller, providing high efficiency output. F4 flight controller and 20A ESC ensure stable operation. If you want to long range, you can also choose the R9mm receiver version, and the R9mm you need to buy the Frsky R9Mlite .
- Page 5 3S battery 7. Long range(R9mm receiver version) 8. Perfect combination of LED lights and TPU, the night effect is very nice 9. Tuned by the GEPRC team at the time of delivery, you can fly with confidence. - 5 - Cygnet...
-
Page 6: 1、 Basic Knowledge
Cygnet Manual Important tip: before commissioning, please remove the propeller 1、 Basic knowledge - The Cygnet is a 3 inch propeller drone. This is not a toy. If done incorrectly, it can harm the human body. - Cygnet is using the Betaflight firmware flight control, and the introduction of Betaflight can be referred to the second part. -
Page 7: 2、 Install Betaflight
Latest version of firmware download website:https://github.com/betaflight/betaflight/releases n Be sure to download the version. betaflight_3.2.1_OMNIBUSF4SD.hex Install driver and ground station Betaflight n https://github.com/betaflight/betaflight/wiki/Installing-Betaflight https://github.com/betaflight/betaflight/releases n Betaflight - Configurator download address: For more information, see the Stable F4 MiniTower manual. http://geprc.com/download/en/GEPRC-STABLE-MANUALS-EN-V1_0.pdf - 7 - Cygnet... -
Page 8: 3、 Install The Receiver
Cygnet Manual 3、 Install the Receiver If you choose the BNF version, you can Bind use the frequency and do not need to install the receiver again. if you choose the PNP version, you will need to install the receiver on your own, Please click the following steps to connect (such as the Frsky r-xsr receiver) : n note:must dismantle propeller for debugging. - Page 9 Cygnet Manual - 9 - Cygnet...
- Page 10 Cygnet Manual - 10 - Cygnet...
-
Page 11: 4、 Bind The Recevier
Cygnet Manual 4、 Bind the Recevier Each manufacturer's receiver is not identical to the frequency, now take the r-xsr receiver of Frsky as an example. Other manufacturers' receivers please refer to the corresponding manufacturer's frequency information. n 1：Power on X9D —— Short press MENU —— Press PAGE turn to second page(such as below picture) n 2：Move the cursor to the "Mode"... - Page 12 Cygnet Manual Bind order： Press F/S button(The Receiver) —— Put through power supply —— The light of the receiver green, red light flash——Press ENTER at Frsky X9D “Bind”—— Unplug the power and rewire (he light of the receiver green, red light flash, That’s ok)。...
-
Page 13: 5、 Set The Radio
Cygnet Manual 5、 Set the Radio You need to set the radio so that you can control the Drone. This is use MODE2 n Create a new MODE2 model n Then open the necessary channels to the remote control (please see picture below) Channel Function operation... - Page 14 Cygnet Manual - 14 - Cygnet...
-
Page 15: 6、 How To Unlock
Cygnet Manual 6、 How to unlock Note: when the test motor turns, the propeller must be unloaded Unlock type n The throttle to the minimum n Unlock channel 5 through segment 0 - 15 - Cygnet... -
Page 16: 7、 Set Up The Vtx
Cygnet Manual 7、 Set up the VTX Set the Channel. In standby mode, press and hold the key for 3 seconds, the blue LED flashes, short press, change the channel value.Every time 1 press will change the CH, followed by 1CH to 8CH cycles. - Page 17 Cygnet Manual flash, VTX can be turned off, and also quickly double-click of the key to turn on the VTX output. - 17 - Cygnet...
-
Page 18: 8、 Install Propeller
The propeller is divided into two types: Left and Right. Install as shown. Notice the positive and negative directions 9、 How to use Runcam Split mini 2 You can download PDF Manual: http://runcam.com/download/SplitMini2/RunCam-Split-Mini-2-Manual-EN.pdf 10、 Contact us Site :http://www.geprc.com Email:info@geprc.com Facebook page: https://www.facebook.com/geprc/ Facebook Group: https://www.facebook.com/groups/566794893526546/ Instagram: https://www.instagram.com/geprc/...
