version 1.0

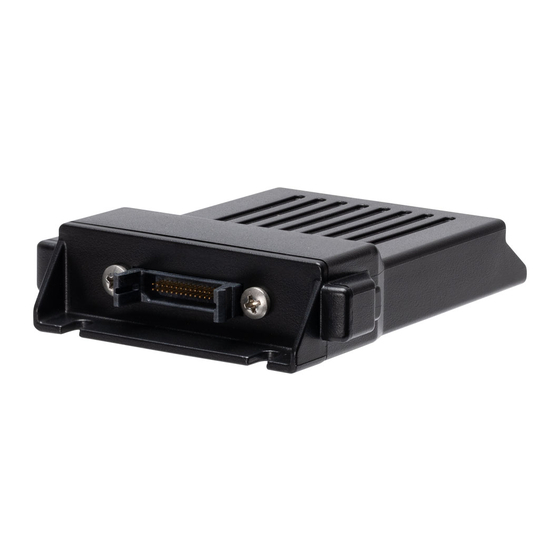

AT242
Quick Start Guide
1. Install an ASCII Terminal Application (on your PC)
An ASCII terminal is useful for initial testing and configuration. If you already have
one, skip to step 2.
a. We recommend TeraTerm, which can be downloaded from our server, here:
https://astratelematics-
my.sharepoint.com/:f:/p/phil/EiffxOSnjX1DiimDbvB5EHkBdk_nkauL34TKMLzLp4v4Sg?
e=d3Iilo
b. Once downloaded, install TeraTerm and open the application
c. Select RS232 session type

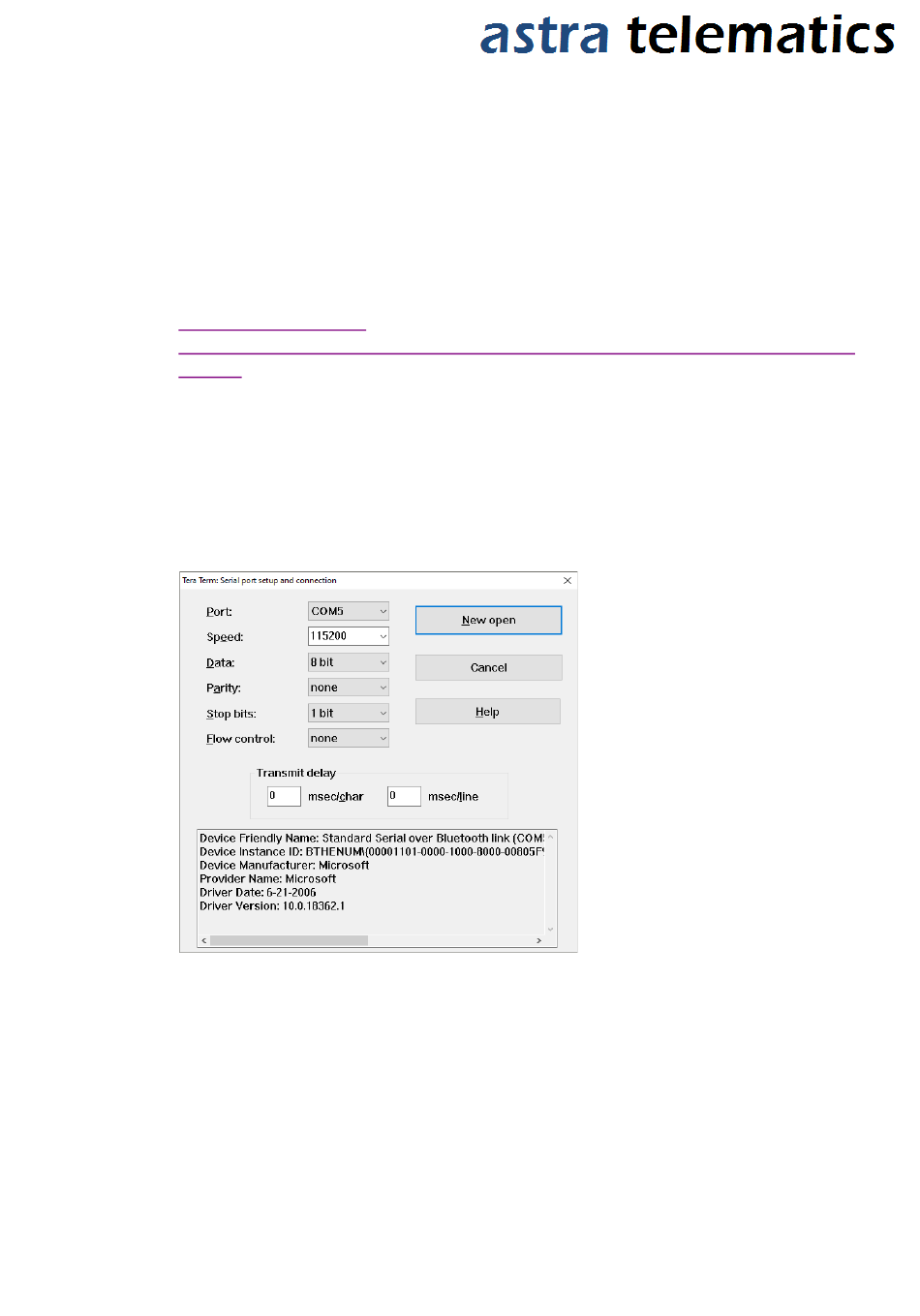

d. Select Setup and then choose Serial Port from the drop-down options
e. Configure your serial connection as follows:
Choose the Port to suit your available COM ports on your PC. This will usually be
f.
COM1 if you have a built in RS232 port. If using a USB-RS232 adapter, go to the
Windows® Device Manager and check which COM port has been assigned to your USB
adapter (note: the assigned COM port will change if you plug into a different USB
socket on your PC).
Select Setup and then Save Setup from the drop-down menu list to save this
g.
configuration
Leave the TeraTerm window open whilst you now set up and connect the AT242
h.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT242 and is the answer not in the manual?

Questions and answers

Summary of Contents for astra telematics AT242

  • Page 1 (note: the assigned COM port will change if you plug into a different USB socket on your PC). Select Setup and then Save Setup from the drop-down menu list to save this configuration Leave the TeraTerm window open whilst you now set up and connect the AT242...
  • Page 2 1.0 2. Check that the battery is fitted and connected: a. Each AT242 is supplied with a 510mAh back-up battery, which should be fixed to the PCB and connected as shown below: b. Do not attempt to remove the battery from the cover, once it has been stuck down, as prising or bending the battery can result in fire and smoke.
  • Page 3 GSM registered on network Constant OFF GSM Modem OFF 5. Fit the enclosure cover a. Align the AT242 PCB with the slots in the main part of the enclosure and slide in the PCB and end panel assembly until the clips are mated...
  • Page 4: Configure Settings

    CB001 3-way power & ignition cable (fused) - connect this to a DC power supply CB004 DB9 RS232 adapter - connect this to your USB-RS232 adapter b. You should now see text scrolling continuously from the AT242 to Tera Term c. Connect the power as outlined below: +VE Power...
