astra telematics AT200 Installation Manual

Hide thumbs Also See for AT200:

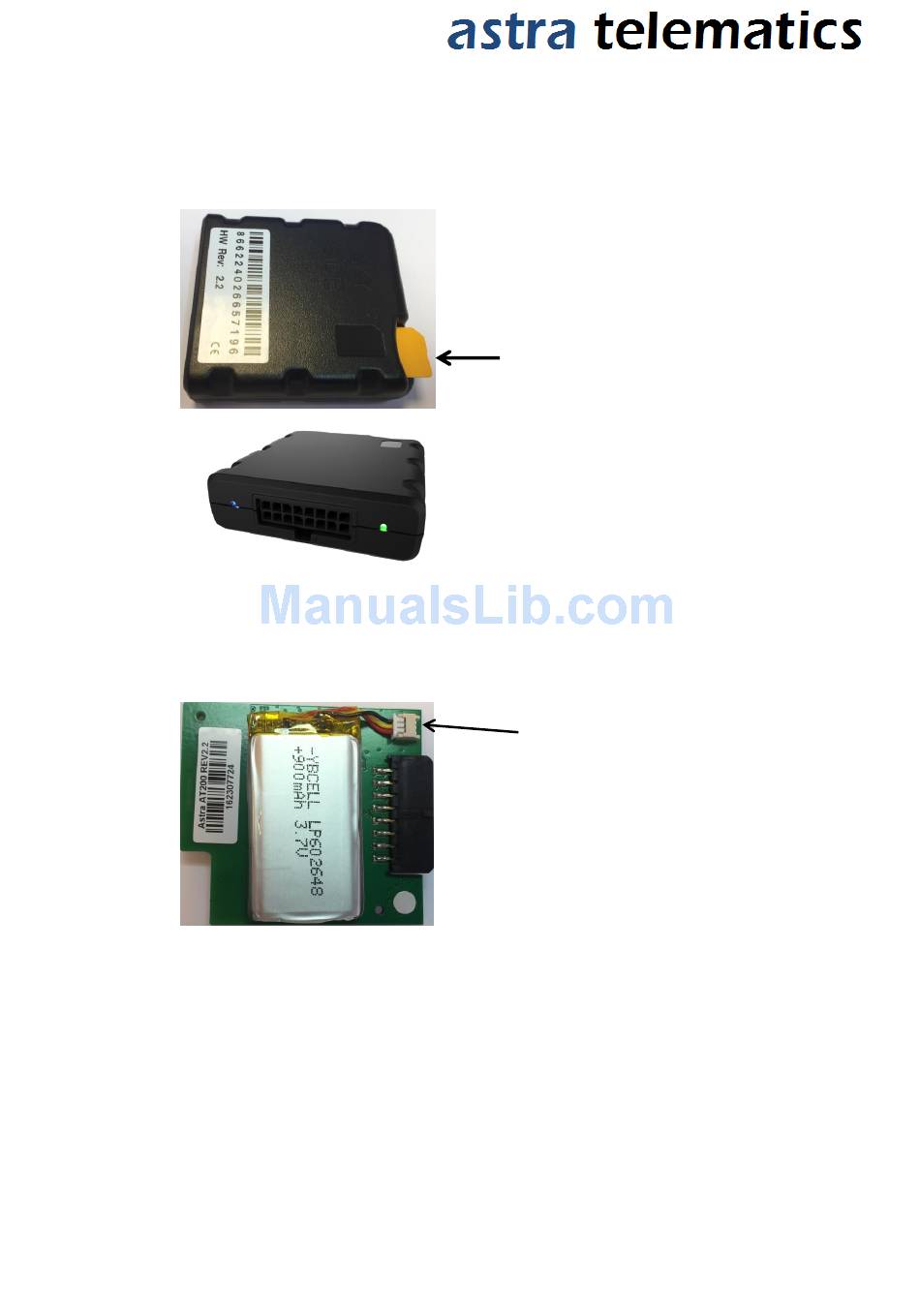

1. Check that the back-up battery is fitted and plugged-in

a. insert a SIM, the device should power-up, as indicated by the LEDs on each side of the

connector:

...and check that LEDs light

2. If LEDs do not light-up, unclip the AT200 enclosure, remove the PCB assembly

and check that the battery is plugged into the PCB connector:

a. Do not attempt to remove the battery from the cover, once it has been stuck down,

as prising or bending could cause fire and smoke.

push SIM all the way in

noting the position of the cut-out corner

check that battery is plugged in here

Table of Contents

Do you have a question about the AT200 and is the answer not in the manual?

Page 1 …and check that LEDs light 2. If LEDs do not light-up, unclip the AT200 enclosure, remove the PCB assembly and check that the battery is plugged into the PCB connector: check that battery is plugged in here a.
Page 2 3. Fit the Cable a. The AT200 is supplied with a 3-way power / ignition cable (basic kit) or a 9-way cable (standard kit). Connect the supplied cable to the device 16-way connector. 3-way basic cable 9-way standard cable 4. Hook up the electrical connections a.
Page 3 6. Check status LEDs a. By now, the AT200 should have obtained a GNSS fix and registered with GPRS service. Check the status LEDs to confirm. During normal operation the LEDs should: i.
Page 4 8. Check Status and Commission Device a. Before replacing panels and leaving the vehicle, we STRONGLY recommend that you confirm normal operation and good communication, using either method below: i. Calling the service provider to check that the device is online, confirming external power, GNSS, GPRS and driver ID status.
