AT202 Quick Start Guide

1. Install an ASCII Terminal Application (on your PC)

An ASCII terminal is useful for initial testing and configuration. If you already have one,
skip to step 2.
a. We recommend TeraTerm, which can be downloaded from our server, here:
https://astratelematics-
my.sharepoint.com/:f:/p/phil/EiffxOSnjX1DiimDbvB5EHkBdk_nkauL34TKMLzLp4v4Sg?e=d
3Iilo
b. Once downloaded, install TeraTerm and open the application
c. Select RS232 session type
d. Select Setup and then choose Serial Port from the drop-down options

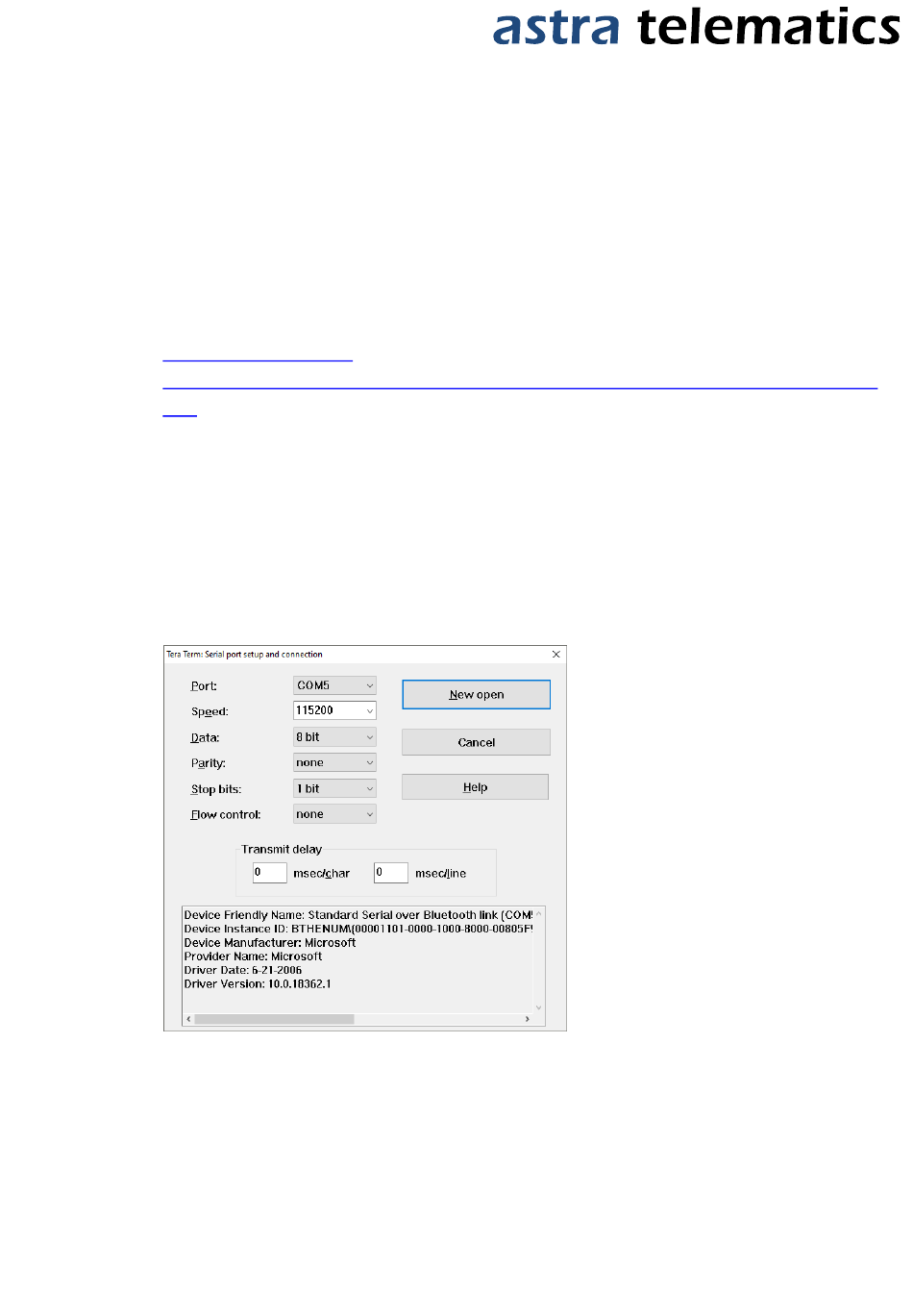

e. Configure your serial connection as follows:
Choose the Port to suit your available COM ports on your PC. This will usually be COM1 if
f.
you have a built in RS232 port. If using a USB-RS232 adapter, go to the Windows® Device
Manager and check which COM port has been assigned to your USB adapter (note: the
assigned COM port will change if you plug into a different USB socket on your PC).
Select Setup and then Save Setup from the drop-down menu list to save this configuration
g.
Leave the TeraTerm window open whilst you now set up and connect the AT202
h.
