Summary of Contents for Snom C52-SP

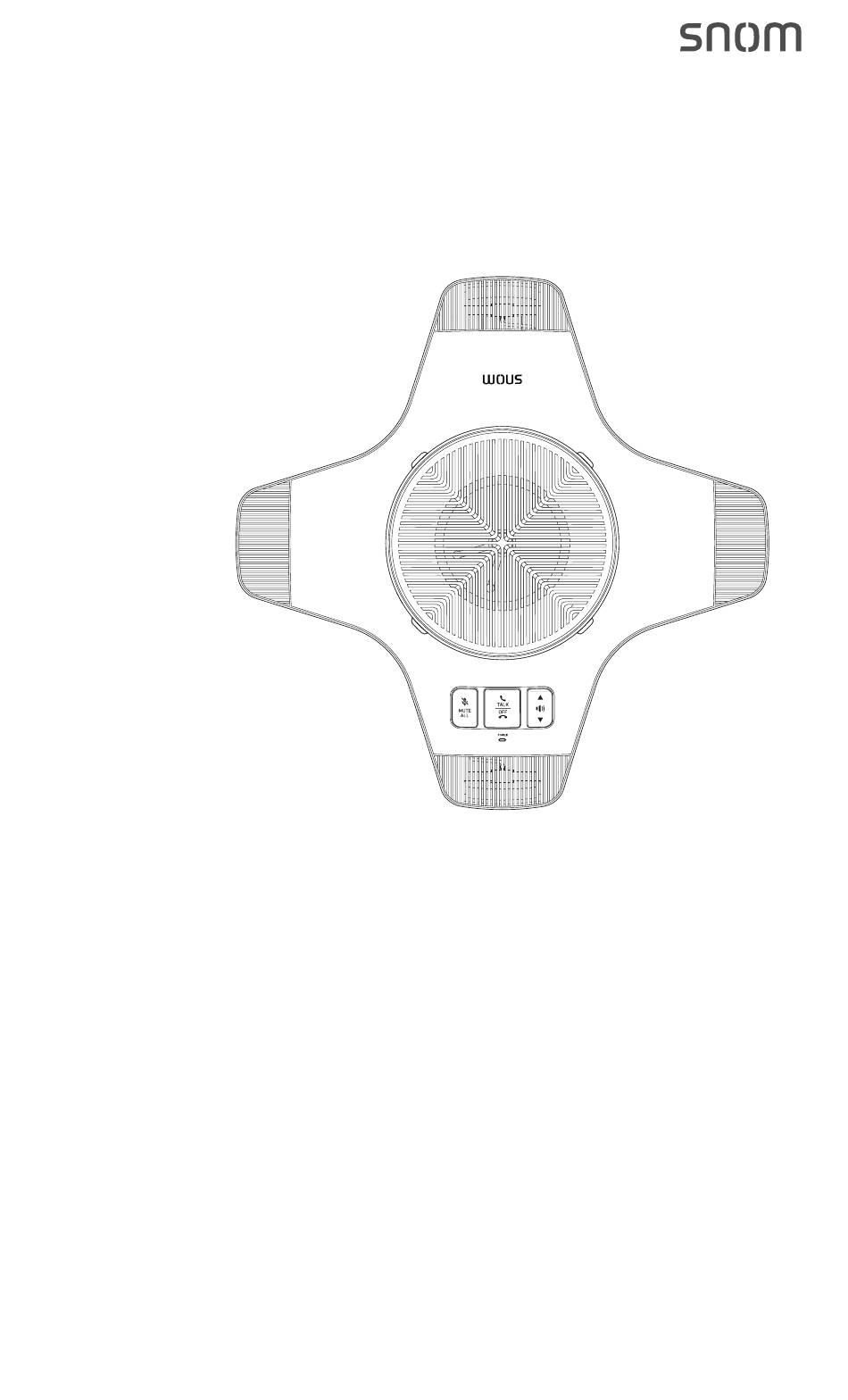

- Page 1 100% User Manual AW | C520_WIMI_US ver. Owen Ju | 17.01.2019 | Revision 1.0 AW | C520_WIMI_US ver. Owen Ju | 17.01.2019 | Revision 1.0 AW | C520_WIMI_US ver. Owen Ju | 17.01.2019 | Revision 1.0 C52-SP DECT Expansion Speakerphone...
-
Page 2: Table Of Contents
Manually register the C52-SP to a A230 About the cordless speakerphone Deregister the wireless speakerphone 8 ® Deregister the C52-SP from a C620 . 8 The RBRC seal ........ 19 Deregister the C52-SP from a C520 . 8 FCC and IC regulations ....20 Deregister the C52-SP from a A230 . -
Page 3: Getting Started
Getting Started Parts checklist Your C52-SP package contains the items shown below. Save your sales receipt and original packaging in the event warranty service is necessary. illustration scale 100% illustration scale 100% illustration scale 100% C52-SP Quick Installation Guide Quick installation... -
Page 4: Speakerphone Layout
⑦ Charge LED • On when charging • Off when charging is complete • Flashes when battery is low LED color and behavior C52-SP Status GREEN Steady • Call active, speaker on Flashing • Incoming call Flashing (with red LED) •... -
Page 5: Installing The Wireless Speaker Battery
After connecting power, the C52-SP LEDs light orange for five seconds. • The supplied power adapter is designed for use with only the C52-SP. It is not designed to power other devices. Do not connect the supplied power adapter to any other devices. -
Page 6: Register The Wireless Speakerphone
C620 SIP Wireless Conference Phone, or a A230 USB DECT Dongle. If your organization uses DECT auto registration: The C52-SP will automatically register to the DECT device. You do not need to take any further action. If your organization does NOT use DECT auto registration (or if you are not sure): You must first turn off auto registration by performing the following steps: 1. -
Page 7: Manually Register The C52-Sp To A A230
Press and hold the REGISTRATION button on the bottom of the C52-SP speakerphone for five seconds. When you release the button, the C52-SP LEDs will flash red and green alternatingly. This indicates the C52-SP is ready for registration. Press the key on the A230 for 4 seconds. -
Page 8: Deregister The Wireless Speakerphone
Getting Started Deregister the wireless speakerphone If you want to replace a C52-SP, you must deregister the speakerphones that are registered to the telephone base. To make deregistration easier, read all of the instructions on this page before you begin. -
Page 9: Deregister The C52-Sp From A A230
Getting Started Deregister the C52-SP from a A230 Press the key on the A230 for 10 seconds to enter deregistration mode. After 4 seconds, the red LED starts to double-flash. After 10 seconds, the LED starts to flash red rapidly, indicating that the A230 has entered deregistration mode. -
Page 10: Speakerphone Operation
The LEDs on all devices turn red, and you cannot be heard by the other party. Ringer When the C520 rings for incoming calls, the C52-SP rings as well. The C52-SP LEDs flash green, and the ringer will sound (if not muted). -
Page 11: Technical Specifications
My speakerphone does not work at all. • Make sure the speakerphone charger power adapter is securely plugged into an electrical outlet (see "Connecting power to the C52-SP" on page 5). The POWER light should be on. • Make sure the speakerphone is registered to the base (see "Register the wireless speakerphone"... - Page 12 Troubleshooting The red or blue light keeps flashing on the speakerphone. • Different flashing patterns of the red and/or blue lights indicate different conditions of the speakerphone. See "Speakerphone layout" on page 4. • Register the speakerphone to the base. The other party cannot hear my voice during a call.
- Page 13 Troubleshooting I want to use my cordless speakerphone with a different telephone base. • You need to deregister the speakerphone from the current telephone base (see "Register the wireless speakerphone" on page 6) and then register it to the new telephone base. Common cure for electronic equipment.
-
Page 14: Important Safety Instructions
Important safety instructions When using your C52-SP DECT Expansion Speakerphone, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. - Page 15 13. Avoid using the C52-SP DECT Expansion Speakerphone during an electrical storm. There is a remote risk of electric shock from lightning. 14. Do not use the C52-SP DECT Expansion Speakerphone to report a gas leak in the vicinity of the leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the wireless mic is replaced in its cradle.
-
Page 16: For C-Ul Compliance Only
11. Ne surchargez pas les prises de courant et les rallonges. 12. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de Snom dans les cas suivants : A. Lorsque le cordon d’alimentation est endommagé ou écorché. - Page 17 SP pendant un orage. 14. N’utilisez pas le Téléphone DECT à haut-parleur mains libres d’extension C52-SP pour rapporter une fuite de gaz à proximité de la fuite. En certaines circonstances, une flammèche pourrait être provoquée lorsque l’adaptateur est branché dans une prise de courant ou lorsque le microphone auxiliaire est déposé...
-
Page 18: Maintenance
Maintenance Taking care of your speakerphone Your wireless speakerphone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Save the original packing materials to protect your speakerphone if you ever need to ship it. Avoid water Your speakerphone can be damaged if it gets wet. -
Page 19: The Rbrc ® Seal
® The RBRC seal The RBRC® Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel-metal hydride rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center. -
Page 20: Fcc And Ic Regulations
FCC and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 21 FCC and IC regulations Industry Canada (continued) The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.
- Page 22 VTECH COMMUNICATIONS, INC. Tigard, Oregon 97223, USA. Specifications are subject to change without notice. Copyright © 2022 Snom Technology GmbH. All rights reserved. v2022005 Version 5, 04/22...
