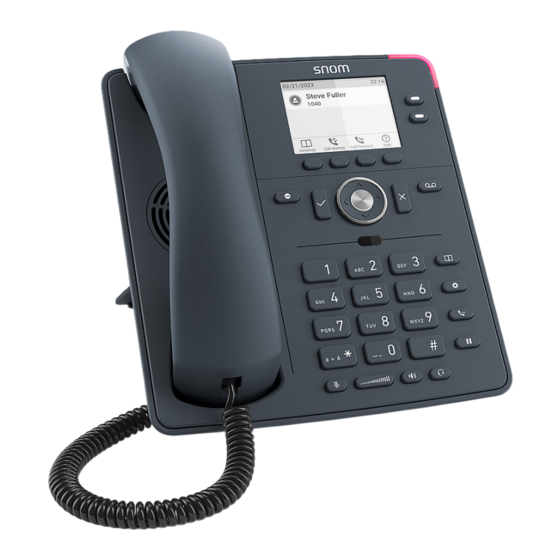

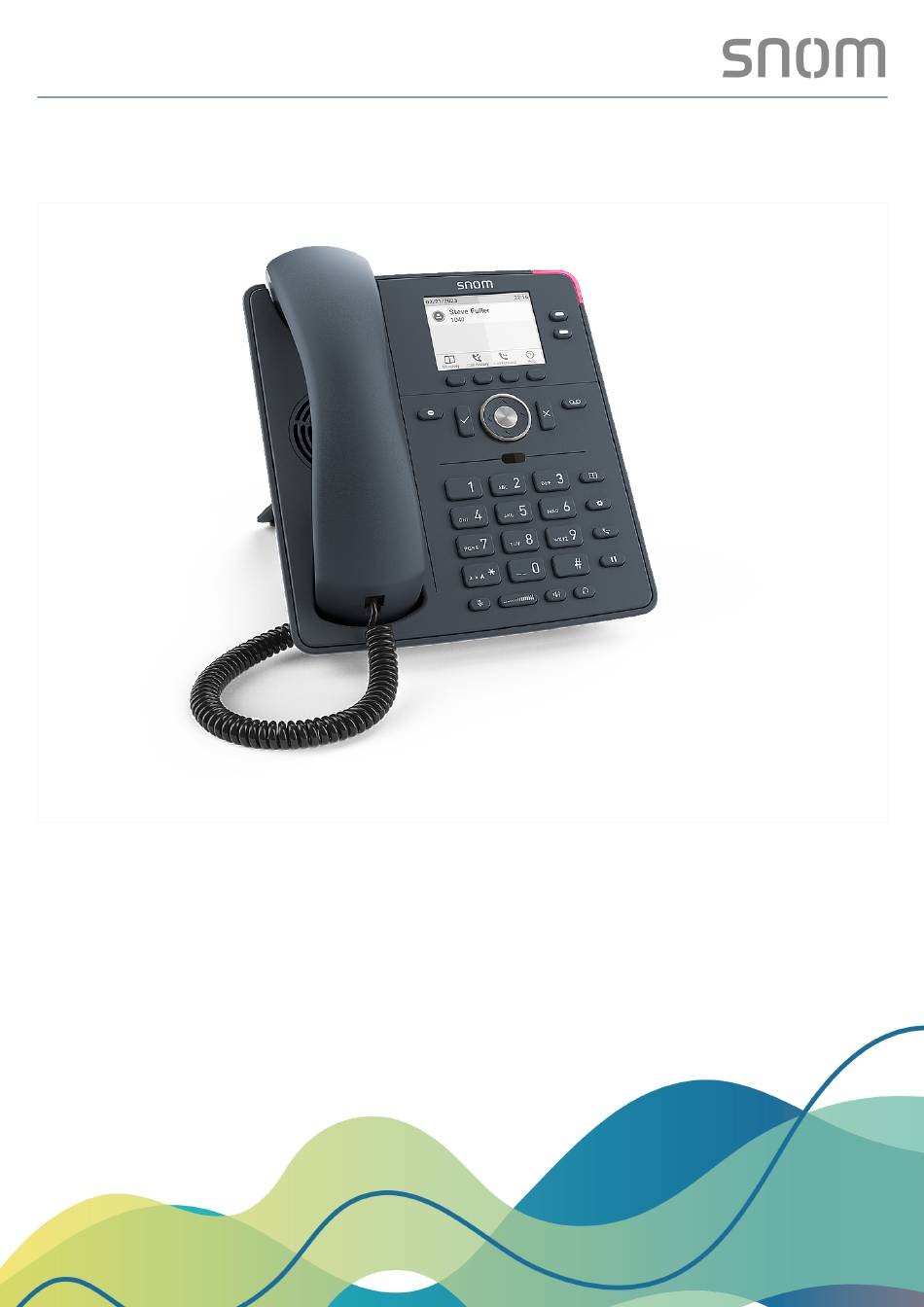

- Page 1 Connecting your business D140 / D150 Short User Manual V: 12/19/2024 - 1...
- Page 2 Footstand Ethernet cable: 1.5 m Documentation (2) Get t ing t o know t he D140 / D150 component s The hardware components of the D140 / D150 can be summarized as follows: Audio devices → 1 - 4 Display and indicators → 5 - 6 Hard keys →...
- Page 3 Power adapter: coaxial power connector (socket) Network connectivity: 2 × RJ45- 8P8C (NET/PC) sockets, Power over Ethernet (PoE), IEEE 802.3af, class 1, IEEE 802.3az D140: Ethernet 10/100 Mbit/s D150: Gigabit Ethernet (GbE) EHS adapter: RJ12-6P6C socket Corded handset: RJ9-4P4C socket Headset: RJ9-4P4C socket Wireless int erf aces −/−...
- Page 4 Ethernet connection line. Snom phones are plug-and-play. Once the phone is connected to your network, it will begin to initialize. If your local network or VoIP provider supports Snom's auto provisioning features , the phone will start up automatically without interruption.
- Page 5 Short User Manual Getting to know the display and controls Display (see → Getting started → Getting to know the D140 / D150 components → 5) This display presents the following information: In idle mode: When the phone is active: (1) Inf o bar/st at us line In idle mode: when there are active status messages →...
- Page 6 Depending on the current activity of the phone, the function key line will present various functions that can be Context-sensitive, activated by pressing the function key underneath the respective symbol. (see → programmable function symbols and function keys ) Getting started → Getting to know the D140 / D150 components Call indicat or (see → → 6) The bright-red LED situated on the top right corner of the phone indicates incoming, ongoing, held, and missed calls.
- Page 7 IP address Press the function key underneath the display symbol to activate the function, open the list etc. depicted by the symbol above the key. Getting started → Getting to know the D140 / D150 components Alphanumeric keypad (see →...
- Page 8 Short User Manual Getting started → Getting to know the D140 / D150 components Audio cont rol keys (see → → 10) 5 audio control keys are used to adjust the volume, for muting and unmuting the microphone, to activate speakerphone and headset mode.
- Page 9 Getting started → Navigat ion, conf irmat ion, and cancel keys (see → Getting to know the D140 / D150 components → 12) They can be programmed with the key events available in their drop- down menus. You can select a different key event to be available on each respective key when the phone is in idle mode.
- Page 10 Short User Manual Putting the D140 / D150 into operation (1) Init ializing and regist ering t he phone Not e: You will need the regist rat ion inf ormat ion received from your Internet service provider or your network administrator - normally the phone or ext ension number, the password, and the regist rar (SIP domain).
- Page 11 Not e: Snom phones can be operated in administrator or user mode. In administrator mode, all settings are accessible and can be modified; in user mode, a number of settings are not accessible. → Def ault set t ing: administrator mode If your phone is administered centrally, user mode may be the rule.
- Page 12 (3) Terminat ing calls When using the handset: place the handset in the cradle or Press When using speakerphone or a headset: Cancel V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 12/19...
- Page 13 Hold Retrieve following symbol If the other party hangs up while on hold, the call is terminated on your phone as well and the LED indicators are turned off. V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 13/19...
- Page 14 Hold Establish conference Terminate the conference and → Press the connections to both parties by returning to the conference Back to conference Cancel screen. V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 14/19...
- Page 15 You may briefly see screen message Ended B 101 indicating that the transfer was Navigation key: center completed. to complete the transfer. → B (101) is in a call with C (102) now. V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 15/19...
- Page 16 Dial the number (D, 103) you want to transfer the call to blindly (unannounced), or select one from one of the available phone directories. → C (102) is ringing D (103) now. Your active call (B, 101) reappears on- screen. V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 16/19...
- Page 17 On each list, the latest call is at the top of the list. Received calls Dialled calls Missed calls Scroll through the list using the navigation key (up/down). The icons indicate the type of call. V: 12/19/2024 - 1 © 2024 Snom Technology GmbH 17/19...
- Page 18 Software update Manual updat e Go to Snom's Firmware Update Center and find the latest firmware version for your D140 / D150. 2. Please read the instructions and release notes before downloading the firmware. 3. Right -click the download link in the Firmware files table and copy t he link.
- Page 19 Important information This D140 / D150 Short User Manual has been derived from the more extensive user manual to give users a more concise overview in their own language. Please refer to the D140 / D150 user manual regarding the...
