Fluke 393 FC Quick Start Manual

TECHNICAL DATA

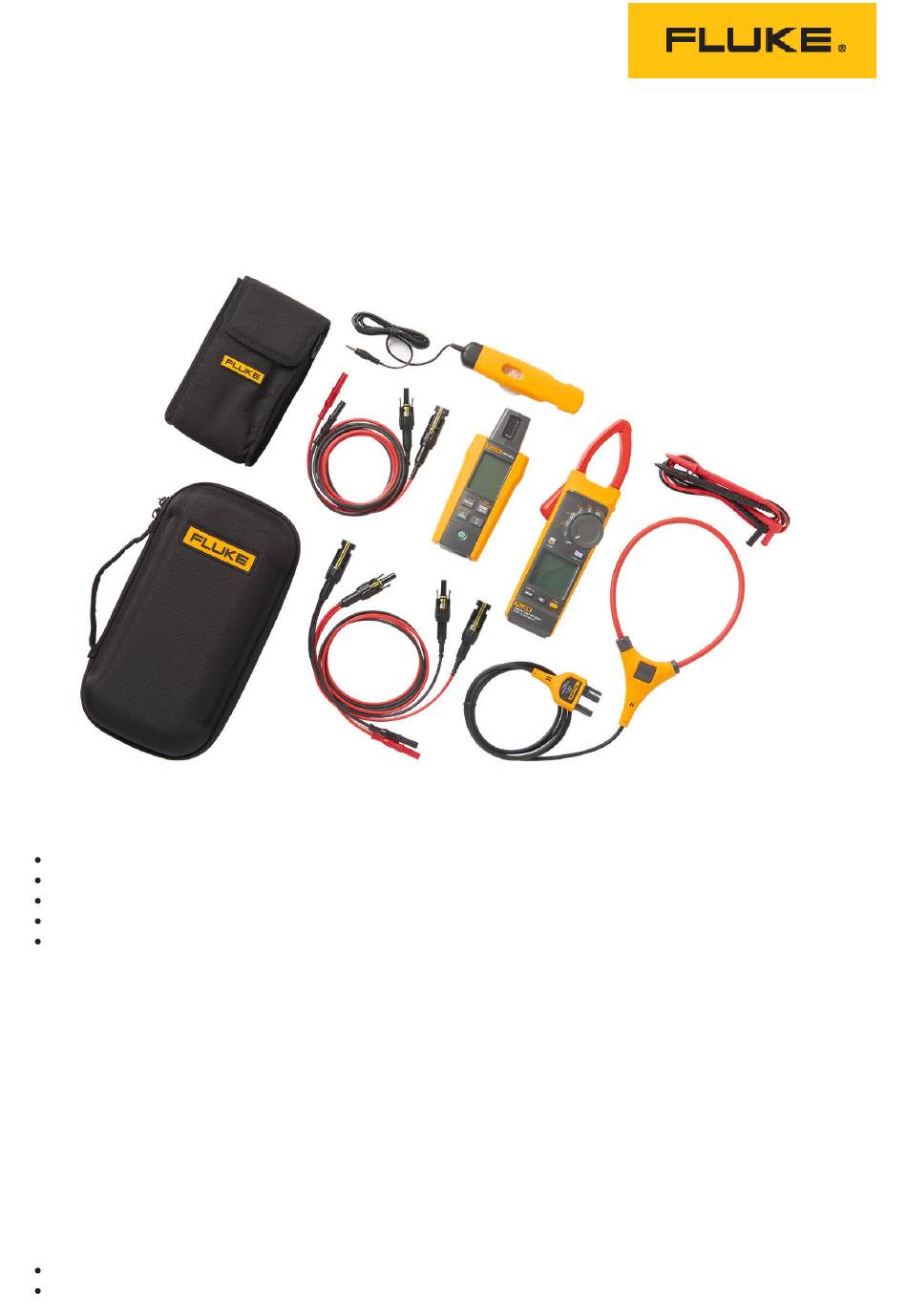

Solar Tools Kit with 393 FC Clamp Meter, Irradiance
Meter and Solar Test Leads
Key features
Measure safely with CAT III 1500 V rated clamp meter
Thin jaw for access to cables in crowded combiner boxes
Work efficiently with dc power measurement, audio polarity and visual continuity
Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
MC4 test lead sets are designed for use with solar clamp meters that accept 4mm banana plugs, rated to CAT III 1000 V /
CAT IV 600 V
Product overview: Solar Tools Kit with 393 FC Clamp Meter,
Irradiance Meter and Solar Test Leads

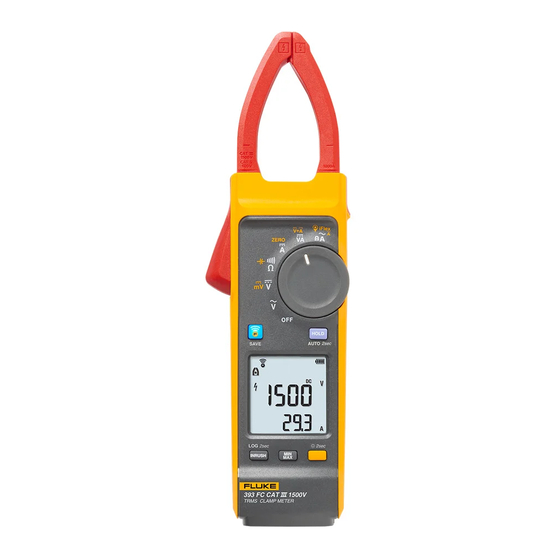

The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic
(PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely connect the
MC4 test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array.
The inline capabilities of the MC4 PVLEAD3 leads allow the system to remain online and generating power while testing
without needing to pierce the line. Use the IRR1-SOL to obtain the amount of solar irradiance necessary to calculate the IV
curve of the power output. Validate that the panel or string of panels are outputting the correct voltage.
Key functions of the solar clamp meter, irradiance meter and MC4 test leads:
View voltage and current simultaneously with the meter's dual display
IP54 rated meter, ideal for work outdoors including PV panel testing
