323/324/325
Clamp Meter
Users Manual
May 2012 Rev.1, 06/15
© 2012-2015 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 323 and is the answer not in the manual?

Questions and answers

Related Manuals for Fluke 323

Summary of Contents for Fluke 323

  • Page 1 323/324/325 Clamp Meter Users Manual May 2012 Rev.1, 06/15 © 2012-2015 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. GlobalTestSupply www. .com Find Quality Products Online at:...
  • Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ......................... 1 How to Contact Fluke ....................1 Safety Information ...................... 2 How to Clean the Product ..................9 Specifications ......................10 Electrical Specifications ..................10 Mechanical Specifications ..................12 Environmental Specifications ................. 12 The Meter ........................

  • Page 4: Introduction

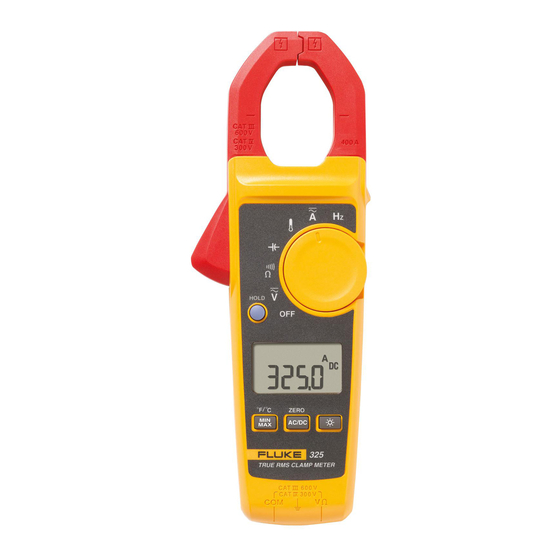

    Introduction The Fluke 323/324/325 Clamp Meter (the Product) measures ac and dc voltage, ac current, resistance, and continuity. The 324 and 325 can also measure capacitance and contact temperature. The 325 can also measure dc current and frequency. Note that the 325 is shown in all of the illustrations.

  • Page 5: Safety Information

    Clamp Meter Safety Information Warning To prevent possible electrical shock, fire, or personal injury: • Use the Product only as specified, or the protection supplied by the Product can be compromised. • Use only correct measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
  • Page 6 323/324/325 Users Manual • Do not apply more than the rated voltage, between the terminals or between each terminal and earth ground. • Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame- resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed.
  • Page 7 Clamp Meter Safety Information • Connect the common test lead before the live test lead and remove the live test lead before the common test lead. • Remove all probes, test leads, and accessories before the battery door is opened. •...
  • Page 8 323/324/325 Users Manual • Remove batteries to prevent battery leakage and damage to the Product if it is not used for an extended period. • Remove batteries to prevent battery leakage and damage to the Product if is to be stored above its operating temperature.
  • Page 9 Clamp Meter Symbols Symbols Table 1. Symbols Symbol Meaning Symbol Meaning   AC (Alternating Current) Earth   DC (Direct Current) AC and DC Current Conforms to European Union   WARNING. RISK OF DANGER. directives.   Consult user documentation. Battery WARNING.
  • Page 10 323/324/325 Users Manual Table 1. Symbols (cont.) Symbol Meaning Symbol Meaning Measurement Category II is applicable to test and MEASUREMENT CATEGORY III is measuring circuits connected applicable to test and measuring  directly to utilization points  circuits connected to the distribution (socket outlets and similar part of the building’s low-voltage...

  • Page 11: How To Clean The Product

    Clamp Meter How to Clean the Product Note The Measurement Category (CAT) and voltage rating of combinations of test probes, test probe accessories, current clamp accessories, and the Product is the LOWEST rating of individual components. How to Clean the Product Regularly wipe the case with a damp cloth and weak detergent.

  • Page 12: Specifications

    Specifications Maximum voltage between any Terminal and Earth Ground ....600 V Range 323 ............ 400.0 A 324, 325 ..........(40.00, 400.0) A Batteries ..........2 AAA, NEDA 24A, IEC LR03 Operating Temperature ......-10 °C to +50 °C Storage Temperature ......-30 °C to +60 °C Operating Humidity .........
  • Page 13 Clamp Meter Specifications Weight 323 ............. 265 g 324 ............. 208 g 325 ............. 283 g Safety ............IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CATIV 300V / CATIII 600V IEC 61010-2-033:CAT IV 300V / CAT III 600V IP Rating ..........IEC 60529: IP30, non-operating...
  • Page 14 323 ............ 0.1 A 324, 325 ..........(0.01, 0.1) A Accuracy 323, 325 ..........2.0 % ±5 digits (45 – 65 Hz) 2.5 % ±5 digits (65 – 400 Hz) 324 ............ 1.5 % ±5 digits (45 Hz to 400 Hz) Note Add 2 % for position sensitivity.
  • Page 15 Range ............ 600.0 V Resolution ..........0.1 V Accuracy ..........1 % ± 5 digits Resistance Range 323, 324 ..........(400.0, 4000) Ω 325 ............. (400.0, 4000, 40000) Ω Resolution ..........(0.1, 1, 10) Ω Accuracy ..........1 % ±5 digits GlobalTestSupply www.
  • Page 16 323/324/325 Users Manual Continuity Beeper 323 ............ ≤70 Ω 324/325 ..........≤30 Ω Capacitance (324, 325) Range............(100.0, 1000) µF Resolution ..........(0.1, 1) µF Accuracy ..........1 % ±4 digits Frequency with Jaw (325) Range............5.0 to 500.0 Hz Resolution ..........

  • Page 17: The Meter

    Clamp Meter The Meter The Meter gtq008.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 18 323/324/325 Users Manual MAXMIN 324/325 gtq001.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 19 Clamp Meter The Meter 2:00 2:00 gtq002.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 20 323/324/325 Users Manual 600 V 600 V 300 V 300 V 323, 324 TRUE RMS CLAMP METER TRUE RMS CLAMP METER 600 V 300 V 600 V 300 V gtq003.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 21 Clamp Meter The Meter 323 V dc - 323 V ac - 324, 325 V dc & V ac - >30 V 300 V gtq004.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 22 323/324/325 Users Manual 600 V 600 V 300 V 300 V TRUE RMS CLAMP METER TRUE RMS CLAMP METER 600 V 600 V 300 V 300 V <70 324/325 <30 gtq005.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 23 Clamp Meter The Meter HOLD TRUE RMS CLAMP METER 600 V 300 V > 30 V 20 V AC/DC & ZERO ZERO ZERO ZERO 2 sec AC/DC AC/DC AC/DC gtq006.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 24 323/324/325 Users Manual 324, 325 TRUE RMS CLAMP METER 600 V 300 V gtq009.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 25 Clamp Meter The Meter gtq007.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
