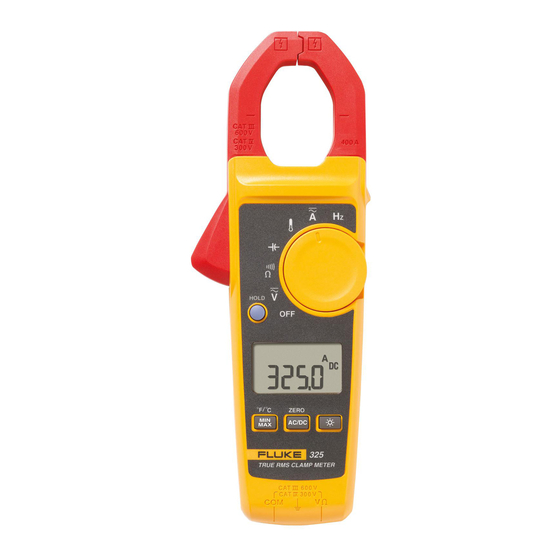

Fluke 323 User Manual

Clamp meter
Hide thumbs Also See for 323:

Advertisement

Table of Contents

See also: User Manual
323/324/325
Clamp Meter
Users Manual
PN 4045153
May 2012
© 2012 Fluke Corporation. All rights reserved. Printed in China.
Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading

Related Manuals for Fluke 323

Summary of Contents for Fluke 323

  • Page 1 323/324/325 Clamp Meter Users Manual PN 4045153 May 2012 © 2012 Fluke Corporation. All rights reserved. Printed in China. Specifications are subject to change without notice. All product names are trademarks of their respective companies. GlobalTestSupply www. .com Find Quality Products Online at:...
  • Page 2 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

  • Page 3: Table Of Contents

    Table of Contents Title Page Introduction ......................... 1 How to Contact Fluke ....................1 Safety Information ...................... 2 How to Clean the Product ..................9 Specifications ......................10 Electrical Specifications ..................10 Mechanical Specifications ..................12 Environmental Specifications ................. 12 The Meter ........................

  • Page 4: Introduction

    Introduction The Fluke 323/324/325 Clamp Meters (the Product) measure ac and dc voltage, ac current, resistance, and continuity. The 324 and 325 can also measure capacitance and contact temperature. The 325 can also measure dc current and frequency. Note that the 325 is shown in all of the illustrations.

  • Page 5: Safety Information

    323/324/325 Users Manual Safety Information Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test. Table 1 tells you about symbols used on the Product and in this manual.
  • Page 6 Clamp Meter Safety Information To prevent possible electrical shock, fire, or personal injury: • Use only correct measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement. • Do not touch voltages > 30 V ac rms, 42 V ac peak, or 60 V dc. •...
  • Page 7 323/324/325 Users Manual • Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame- resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed. • Replace the batteries when the low battery indicator shows to prevent incorrect measurements.
  • Page 8 Clamp Meter Safety Information • Connect the common test lead before the live test lead and remove the live test lead before the common test lead. • Remove all probes, test leads, and accessories before the battery door is opened. •...
  • Page 9 323/324/325 Users Manual • Remove batteries to prevent battery leakage and damage to the Product if it is not used for an extended period. • Remove batteries to prevent battery leakage and damage to the Product if is to be stored above its operating temperature.
  • Page 10 AC (Alternating Current) Earth ground Do not dispose of this product as unsorted municipal waste. Go to  DC (Direct Current) Fluke’s website for recycling information. Conforms to European Union  AC and DC Current directives. Risk of Danger. Important Double insulated information.
  • Page 11 323/324/325 Users Manual Table 1. Symbols (cont.) Symbol Meaning Symbol Meaning Application around and removal Battery from HAZARDOUS LIVE conductors is permitted. CAT III equipment is designed to CAT IV equipment is designed protect against transients in to protect against transients...

  • Page 12: How To Clean The Product

    Clamp Meter How to Clean the Product How to Clean the Product Regularly wipe the case with a damp cloth and weak detergent. Caution To prevent damage to the Product, do not use abrasives or solvents to clean the Product case. To clean the Product Jaw: Examine the jaw mating surface to make sure it is clean.

  • Page 13: Specifications

    Users Manual Specifications Electrical Specifications AC Current (Jaw) Range 323 ............. 400.0 A 324, 325 ..........(40.00, 400.0) A Resolution 323 ............. 0.1 A 324, 325 ..........(0.01, 0.1) A Accuracy ..........2.0 % ±5 digits (45 – 65 Hz) 2.5 % ±5 digits (65 –...
  • Page 14 Range ............ 600.0 V Resolution ..........0.1 V Accuracy ..........1 % ± 5 digits Resistance Range 323, 324 ..........(400.0, 4000) Ω 325 ............. (400.0, 4000, 40000) Ω Resolution ..........(0.1, 1, 10) Ω Accuracy ..........1 % ±5 digits Continuity Beeper 323 ............

  • Page 15: Mechanical Specifications

    Note: Temperature uncertainty (accuracy) does not include error of the thermocouple probe. Mechanical Specifications Size (L x W x H) ........(207 x 75 x 34) mm Weight 323 ............. 265 g 324 ............. 208 g 325 ............. 283 g Environmental Specifications Operating Temperature ......
  • Page 16 Clamp Meter Specifications Operating Humidity ......... Non Condensing (≤10 °C) ≤90 % RH (at 10 °C to 30 °C) ≤75 % RH (at 30 °C to 40 °C) ≤45 % RH (at 40 °C to 50 °C) (Without Condensation) Operating Altitude ........2000 meters Storage Altitude ........

  • Page 17: The Meter

    323/324/325 Users Manual The Meter gtq008.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 18 Clamp Meter The Meter MAXMIN 324/325 gtq001.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 19 323/324/325 Users Manual 2:00 2:00 gtq002.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 20 Clamp Meter The Meter 600 V 600 V 300 V 300 V 323, 324 TRUE RMS CLAMP METER TRUE RMS CLAMP METER 600 V 300 V 600 V 300 V gtq003.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 21 323/324/325 Users Manual 323 V dc - 323 V ac - 324, 325 V dc & V ac - >30 V 300 V gtq004.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 22 Clamp Meter The Meter 600 V 600 V 300 V 300 V TRUE RMS CLAMP METER TRUE RMS CLAMP METER 600 V 600 V 300 V 300 V <70 324/325 <30 gtq005.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 23 323/324/325 Users Manual HOLD TRUE RMS CLAMP METER 600 V 300 V > 30 V 20 V AC/DC & ZERO ZERO ZERO ZERO 2 sec AC/DC AC/DC AC/DC gtq006.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 24 Clamp Meter The Meter 324, 325 TRUE RMS CLAMP METER 600 V 300 V gtq009.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 25 323/324/325 Users Manual gtq007.eps GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
