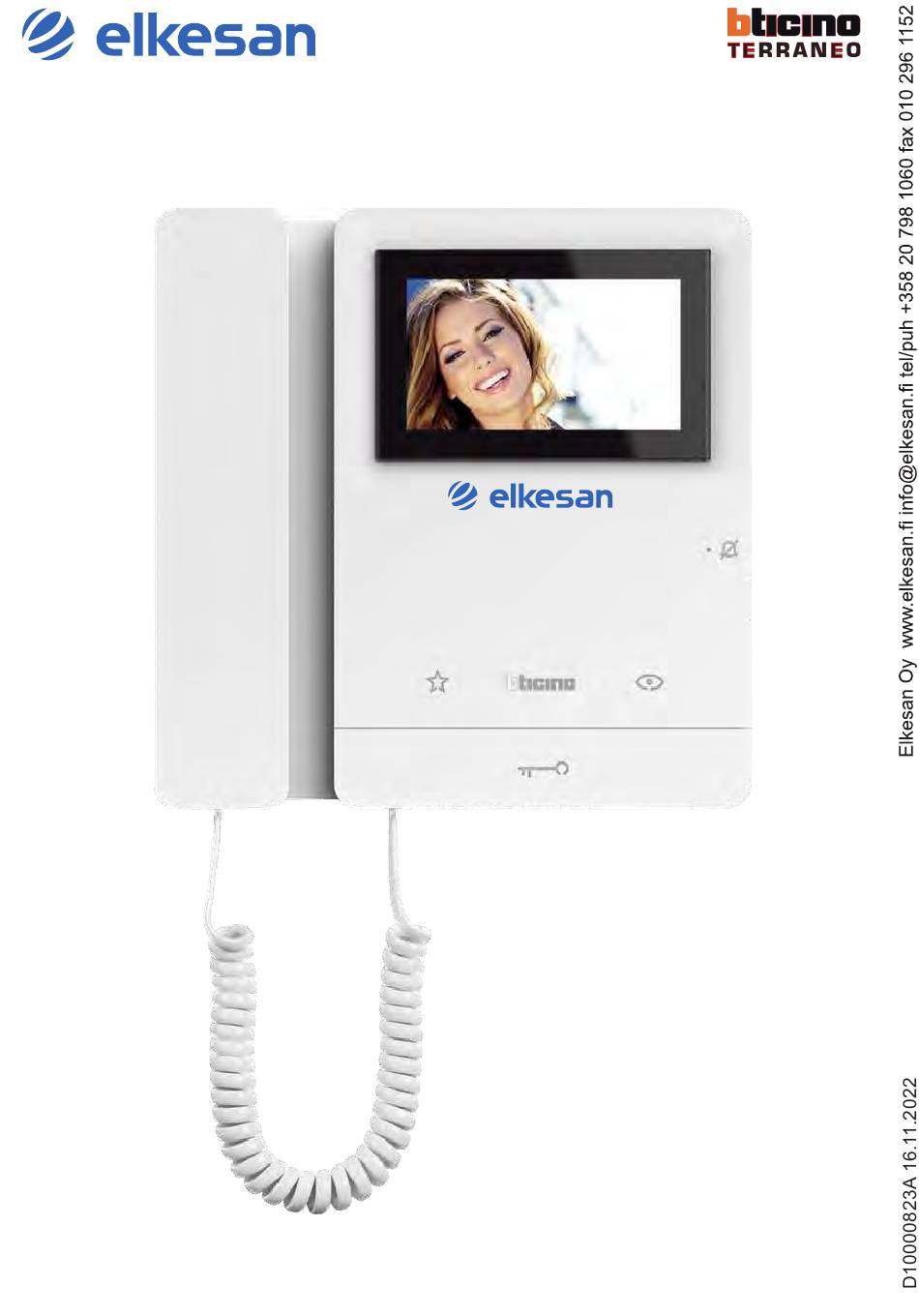

- Page 1 CLASSE 100 VIDEO DOORPHONE WITH HANDSET 344625 (V16M, 2020) USER MANUAL BTICINO DOOR ENTRY SYSTEM...
- Page 2 (only for systems with door locks or actuators intended for destinati a questa funzione). this function). Altezza raccomandata salvo diversa normativa vigente. Recommended height, unless different regulations are specified. BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com 12/18-01 PC...
- Page 3 Sede configuratori Configurator socket Permette l’apertura della serratura, solo se il posto esterno ed il posto It allows the opening of the door lock only if the entrance panel and interno sono in comunicazione. Inserire configuratore JMP** per attivare the internal unit are communicating.Connect the JMP** configurator to la funzione.
- Page 4 • Schema di collegamento video • Video wiring diagram 344625 344625 344232 3499 • Selezione suoneria di chiamata • Call bell selection • Selezione suoneria di chiamata da posto esterno principale (S=0) • Call bell selection from the main entrance panel (S=0) •...
- Page 5 Check that the wall installation has been carried out correctly Lay out the wires respecting the standards in force Connect the power supply wires as indicated Use only the items indicated in the technical specifications for any system expansions RAEE/WEEE: bticino.com/disposal...
-
Page 6: Dimensional Data

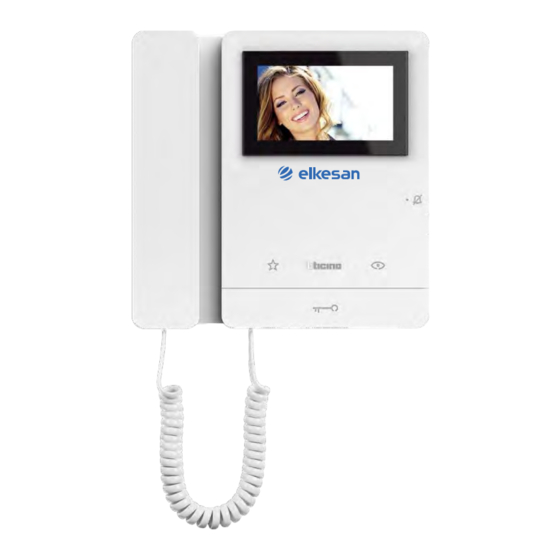

Classe100 V16M Video internal unit 344625 with handset Description Front view 2 WIRE video internal unit, with handset, for surface installation. It has a 4.3” (16:9) colour display. Available pushbuttons: auto-switching on, door lock release, staircase light control/various actuators. Depending on the configurator inserted in (M), the same pushbuttons will perform different functions (see the specific configuration section). - Page 7 Classe100 V16M Video internal unit 344625 with handset Side view Configuration The device must be only physically configured. N - Internal unit number The configurators inserted in the N socket of the internal unit assign a system identification number. The internal units must be configured in progressive order. Internal units with parallel connection (max 3 inside apartments without item 346850) must be configured using the same N configurator.
- Page 8 Classe100 V16M Video internal unit 344625 with handset Bell programming The video internal unit offers the possibility to select among 16 types of bells with programmed ringtones, which can be freely associated to the following type of calls: - Calls from the entrance panel (configured with S=0); - INTERCOM call;...
- Page 9 Käyttöohje User manual https://elkesan.fi https://elkesan.fi/d10000822 https://elkesan.fi/d1000883...
