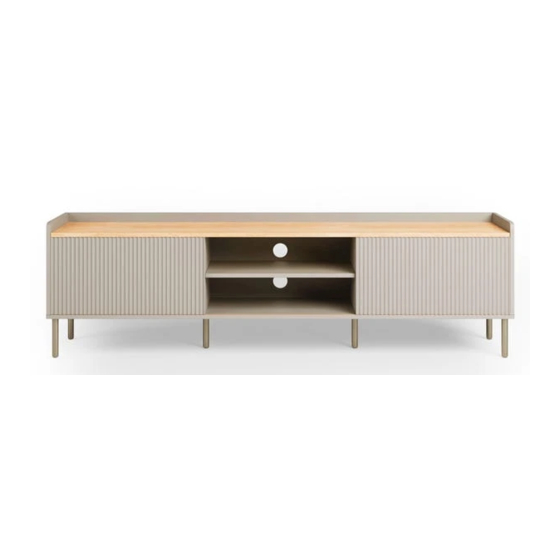

- Page 1 Georgi Extra Wide TV Unit INSTRUCTIONS www.dunelm.com...
- Page 2 Thank you Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Component parts supplied Dimensions Visual (mm) 1764x377x16 1800x396x16 354x395x16 298x349x16 584x348x16 1764x94x16 1774x269x5 292x590x18 www.dunelm.com...
- Page 4 Parts and fittings Φ 22pcs Φ 22pcs 22pcs M6x40mm 15x13.5 24pcs 4pcs 4set M6x12mm M7x50mm 4pcs 1pcs 32pcs H=172 H=169 M3x12 Φ20 22pc www.dunelm.com...
- Page 5 Exploded view www.dunelm.com...
- Page 6 Step 1: CORRECT WRONG Please note that the locking cam faces outwards. M6x40mm 10pc Φ 6pcs 15x13.5 Φ 8x30 6pcs Step 2: 4 x2 M6x40mm 4pcs Φ 4pcs 15x13.5 Φ 4pcs 8x30 www.dunelm.com...
- Page 7 Step 3: Φ 15x13.5 4pcs Φ 4pcs 8x30 Step 4: M6x40mm 4pcs Φ 4pcs 15x13.5 Φ 4pcs 8x30 www.dunelm.com...
- Page 8 Step 5: M6x12mm 24pcs H=172 4pcs H=169 2pcs Step 6: !!Notice!! Please make sure all fittings are locked before setting the TV Unit upright. www.dunelm.com...
- Page 9 Step 7: If necessary, gently adjust the top panel(1# ) sideways in either direction until XX and YY are equal. Step 8: M7x50mm 4pcs www.dunelm.com...
- Page 10 Position door so that its rollers fit into the bottom track. Pull the button down to slide the guide pin down. Tilt door into position. Release the button to let pin slide into the top track. Warning: Beware of Pinching www.dunelm.com...
- Page 11 Step 11: Do not overtighten. Step 12: Add the screw covers for those visible cams Φ20 22pcs www.dunelm.com...
- Page 12 Always follow fitting instructions carefully and retain them for future use. Always lift your furniture into place, avoid dragging it across the floor as this can cause damage to joints. Protectors are securely fitted and in place. www.dunelm.com...
