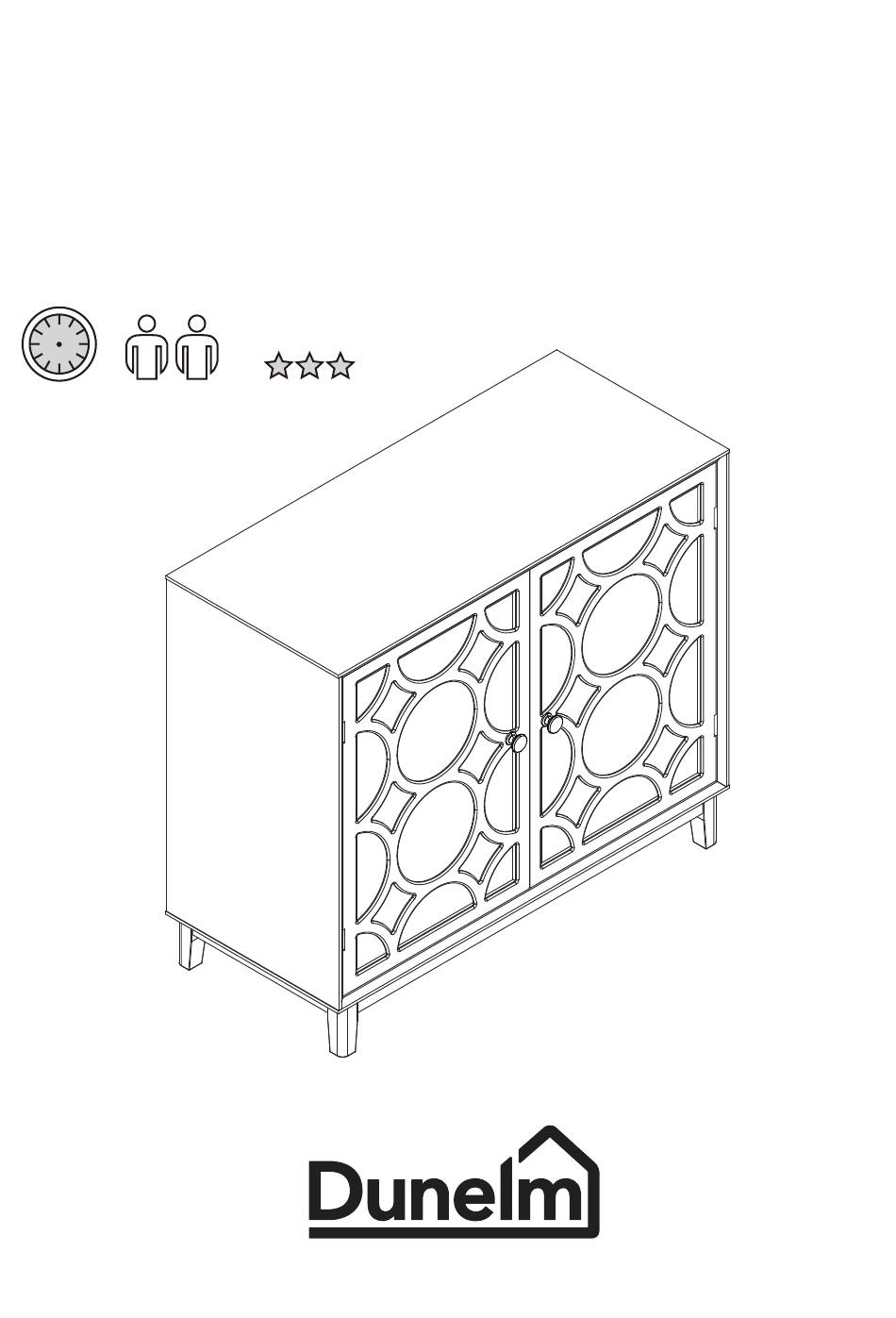

- Page 1 Delphi Small Sideboard INSTRUCTIONS 60 MINS 2 PEOPLE ASSEMBLY MEDIUM DIFFICULTY www.dunelm.com...
-
Page 3: Exploded View
Exploded view Dimensions Visual 906 x 400mm 667 x 400mm 667 x 400mm 906 x 400mm 426.5 x 363mm 422 x 363mm 891 x 666mm 318 x 20mm 103 x 35mm 639 x 431mm 643 x 364mm... - Page 4 Parts and fittings Dimensions Visual 5.8x30mm 5.8x50mm 3x14mm 4x50mm 4x24mm 4x14mm 8x50mm 4x22mm...
- Page 5 Parts and fittings Dimensions Visual 3x16mm 3x12mm 3.5x14mm...
- Page 6 Exploded view...
- Page 7 Step1: Ax24...
- Page 8 Step2:...
- Page 9 Step3: ATTENTION Pls make attention to the hole position, thanks...
- Page 10 Step4: ATTENTION Pls make attention to the hole position, thanks...
- Page 11 Step5:...
- Page 12 Step6:...
- Page 13 Step7: ATTENTION Lock the screws in the dividers first, screw the side panels is the next ATTENTION Pls make sure the side and top/bottom joint align...
- Page 14 Step8: ATTENTION Pls don't screw too tight, it is adjustable...
- Page 15 Step9: ATTENTION Pls make sure the side and top/bottom joint align...
- Page 16 Step10: Fx28 Step11:...
- Page 17 Step12: Wx12 Step13:...
- Page 18 Step14: Wall fittings are not provided as different wall types require different raw plugs and screws.
- Page 19 Tip kit instructions Your item of furniture has been provided with a wall attachment for your safety. It is highly recommended that this is used to prevent furniture over tipping which can cause serious or fatal crushing injuries. Never allow children to climb or hang on the drawers, doors or shelves. Place the heaviest items in the lower drawers or shelves.
- Page 20 Wall fixings This wall fixing is provided for your safety and Please ensure that the head of the screws used we recommend that once in position the unit is has a diameter greater than the diameter of the secured to the wall for extra stability. hole on the wall fixing and that the fixing is safe and secure before using.
- Page 21 Wall fixings Step by step Important When drilling into walls always check there are no hidden wires or pipes etc. Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure. Hints 1.
- Page 22 Assembly instructions...
- Page 23 To clean your item, please use a soft cloth slightly dampened with water and wipe clean. Then bu with a dry clean cloth. Use washing up liquid if necessary. If the glass is chipped or broken, stop using the product and consult Dunelm.
- Page 24 floor as this can cause damage to joints. When placing furniture on a wooden or laminate floor, please ensure that the plastic or felt protectors are securely fitted and in place. Manufactured in China for Dunelm (Soft Furnishings) Ltd.LE7 1AD &Dunelm (Soft Furnishings) Londonderry Ltd. BT48 8QN...
