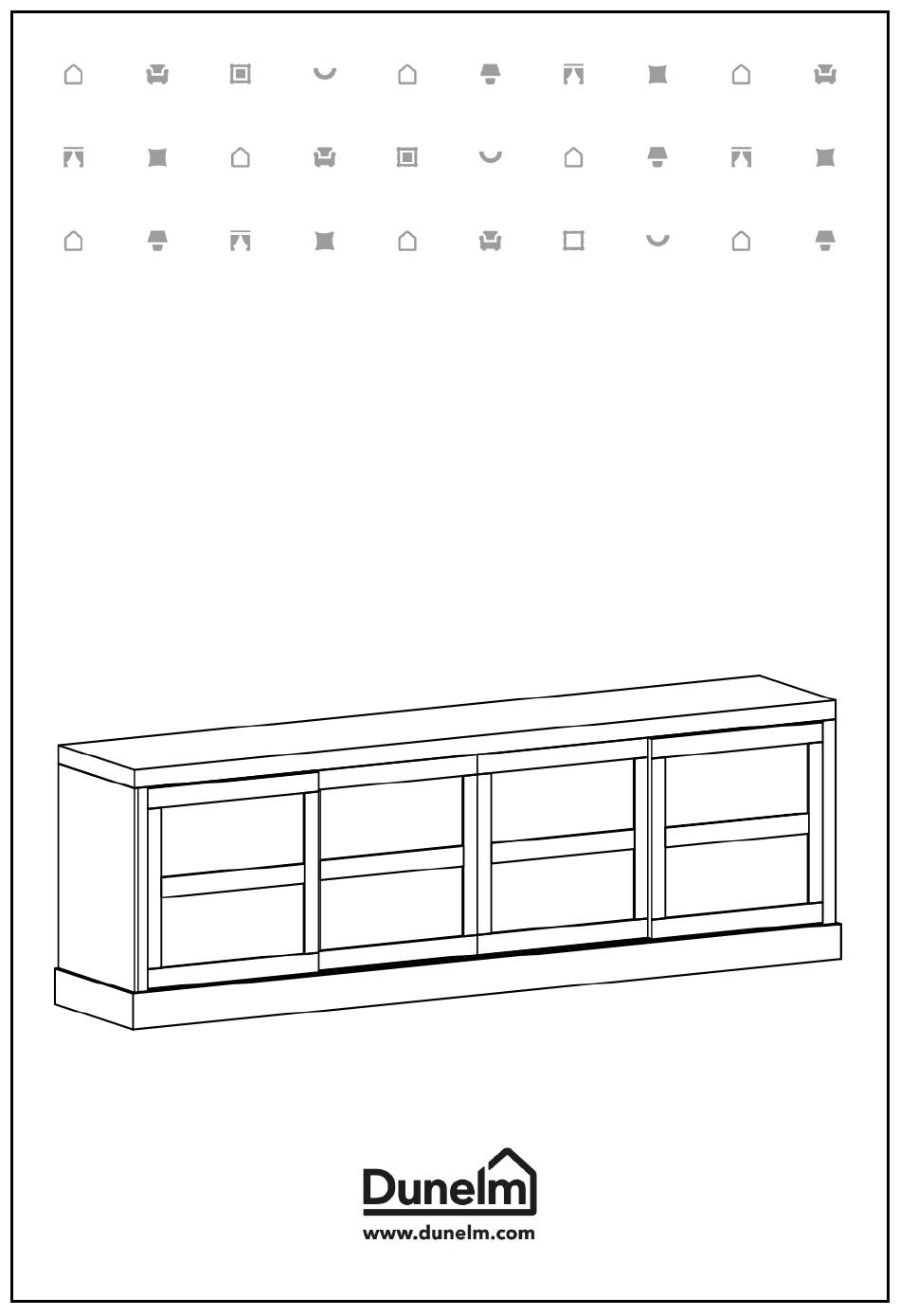

- Page 1 Jaxon Wide TV Unit Assembly & Care Instructions Dunelm (Soft Furnishings) Ltd - INTERNAL...
-
Page 2: Getting Started
• Once items are part or fully assembled, they are not returnable unless faulty. Max weight limit No. of people to assemble Assembly difficulty Time to assemble 75 KG 2 recommended Easy <30 minutes dunelm.com Page 1 Dunelm (Soft Furnishings) Ltd - INTERNAL... -
Page 3: Parts Supplied
Parts supplied. Part Visual TV Unit 180x36x46 cm Shelf 41.5x29.5 cm Shelf 44x29.5 cm Shelf 44x29.5 cm Door 43x35.5 cm dunelm.com Page 2 Dunelm (Soft Furnishings) Ltd - INTERNAL... -
Page 4: Hardware Supplied
Hardware supplied. Hardware & Hardware & dimension (mm) dimension (mm) Leg Lever Leg Lever M6x15mm M6x15mm Shelf Support Pin dunelm.com Page 3 Dunelm (Soft Furnishings) Ltd - INTERNAL... -
Page 5: Exploded Diagram
Exploded diagram. dunelm.com Page 4 Dunelm (Soft Furnishings) Ltd - INTERNAL... - Page 6 Aways lift to move. NEVER flip your upholstery allowing corners to hit the floor as structural damage can be caused. Always turn gently. A x 4 dunelm.com Page 5 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 7 Assembly instructions. B x 16 Please first insert the wheels into the bottom slots, then press the button. Ensure that the upper and lower slots are properly aligned. dunelm.com Page 6 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 8 Assembly instructions. dunelm.com Page 7 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 9 Press the button downward, then hold it and remove the doors. Please adjust the door gap using the adjustment screw located at the bottom of the back side of the door. dunelm.com Page 8 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 10 Final product. dunelm.com Page 9 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 11 • DO check fittings and fixings from time-to-time and tighten when necessary. Stop using the product if still unstable after all screws and bolts are tightened. • DO NOT drag your furniture when moving it as this can damage joints. Always lift furniture into place. dunelm.com Page 10 Dunelm (Soft Furnishings) Ltd - INTERNAL...
-
Page 12: Customer Service
If you have any issues with this product, you can call our Customer Service team on: 0345 165 6565 Monday to Friday 9am to 5:00pm. Alternatively, you can contact our team by Live Chat on: Dunelm.com Monday to Friday 8am – 8:30pm Saturdays 8am –...
