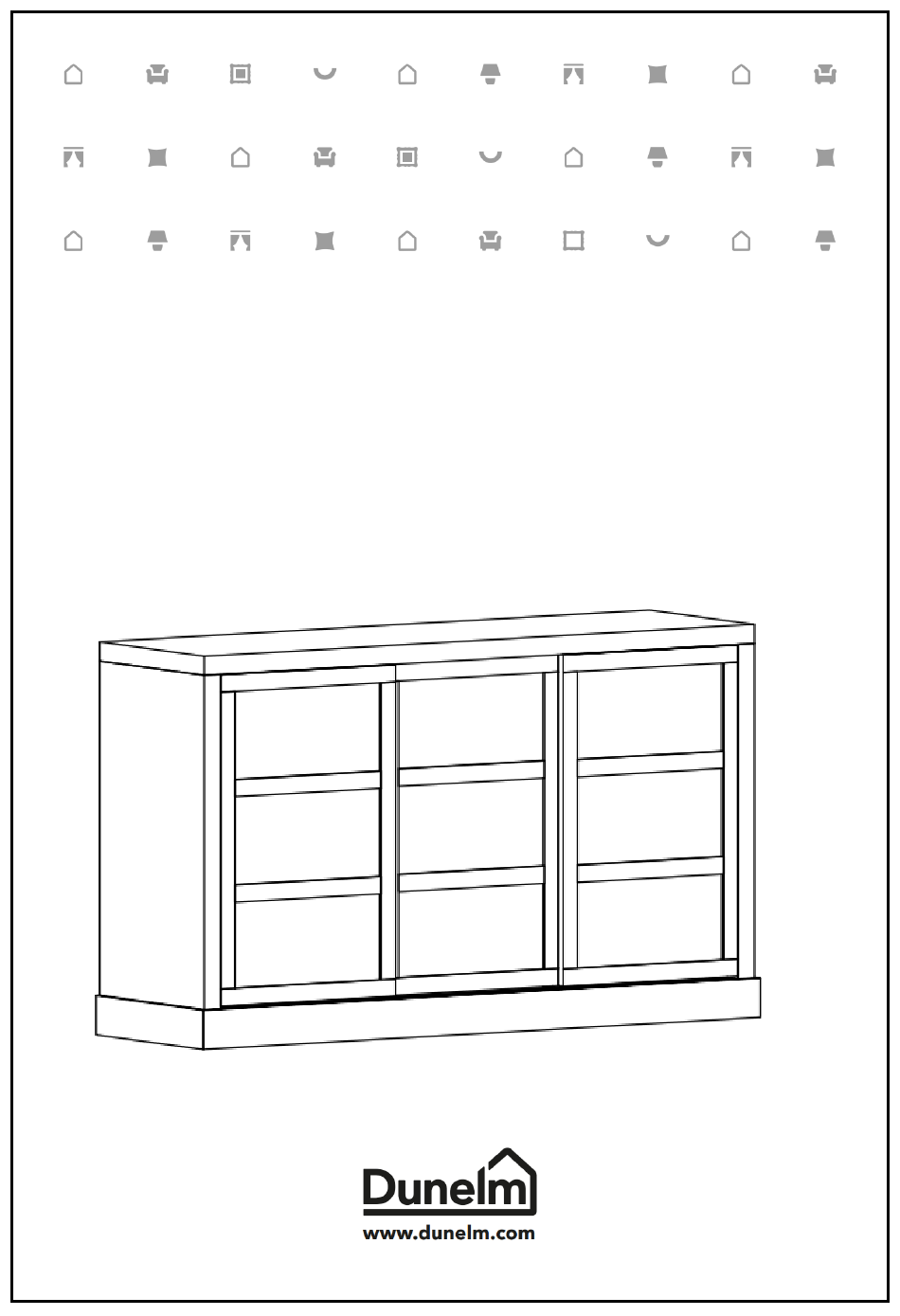

- Page 1 Jaxon Wide Sideboard Assembly & Care Instructions Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 2 • Once items are part or fully assembled, they are not returnable unless faulty. Max weight limit No. of people to assemble Assembly difficulty Time to assemble 75 KG 2 recommended Easy <30 minutes dunelm.com Page 1 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 3 Parts supplied. Part Visual Sideboard 135x40x80cm Shelf 85x33 cm Shelf 44x33 cm Door 67x44 cm dunelm.com Page 2 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 4 Hardware supplied. Hardware & Hardware & dimension (mm) dimension (mm) Leg Lever Leg Lever M6x15mm M6x15mm Shelf Support Pin Visual dunelm.com Page 3 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 5 Exploded diagram. dunelm.com Page 4 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 6 Light load cavity wall plug for Heavy load cavity wall plug for For heavier loads into masonry, use into plasterboard or hollow use into plasterboard or brickwork or concrete. wooden doors. hollow wooden doors. dunelm.com Page 5 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 7 L bracket to the wall and the product as illustrated by the diagram. • The product will now be secured to the wall to prevent tipping. dunelm.com Page 6 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 8 Aways lift to move. NEVER flip your upholstery allowing corners to hit the floor as structural damage can be caused. Always turn gently. A x 4 dunelm.com Page 7 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 9 Assembly instructions. B x 8 Please first insert the wheels into the bottom slots, then press the button. Ensure that the upper and lower slots are properly aligned. dunelm.com Page 8 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 10 Assembly instructions. dunelm.com Page 9 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 11 Press the button downward, then hold it and remove the doors. Please adjust the door gap using the adjustment screw located at the bottom of the back side of the door. dunelm.com Page 9 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 12 Wall fixings are not provided with this product as different wall types require different screws and wall plugs. C x 2 D x 2 dunelm.com Page 10 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 13 Final product. dunelm.com Page 10 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 14 • DO check fittings and fixings from time-to-time and tighten when necessary. Stop using the product if still unstable after all screws and bolts are tightened. • DO NOT drag your furniture when moving it as this can damage joints. Always lift furniture into place. dunelm.com Page 11 Dunelm (Soft Furnishings) Ltd - INTERNAL...
- Page 15 If you have any issues with this product, you can call our Customer Service team on: 0345 165 6565 Monday to Friday 9am to 5:00pm. Alternatively, you can contact our team by Live Chat on: Dunelm.com Monday to Friday 8am – 8:30pm Saturdays 8am –...
