An SDT CONMONSENSE Ultrasound sensor (defined at gain = +60 dB in dynamic mode) should be
defined as follows, based on the specifications given at
http://ftp.sdt.be/pub/Products/CONMONSense/Datasheet/CONMONSense_0-
10Voltage_Contact_Datasheet.pdf

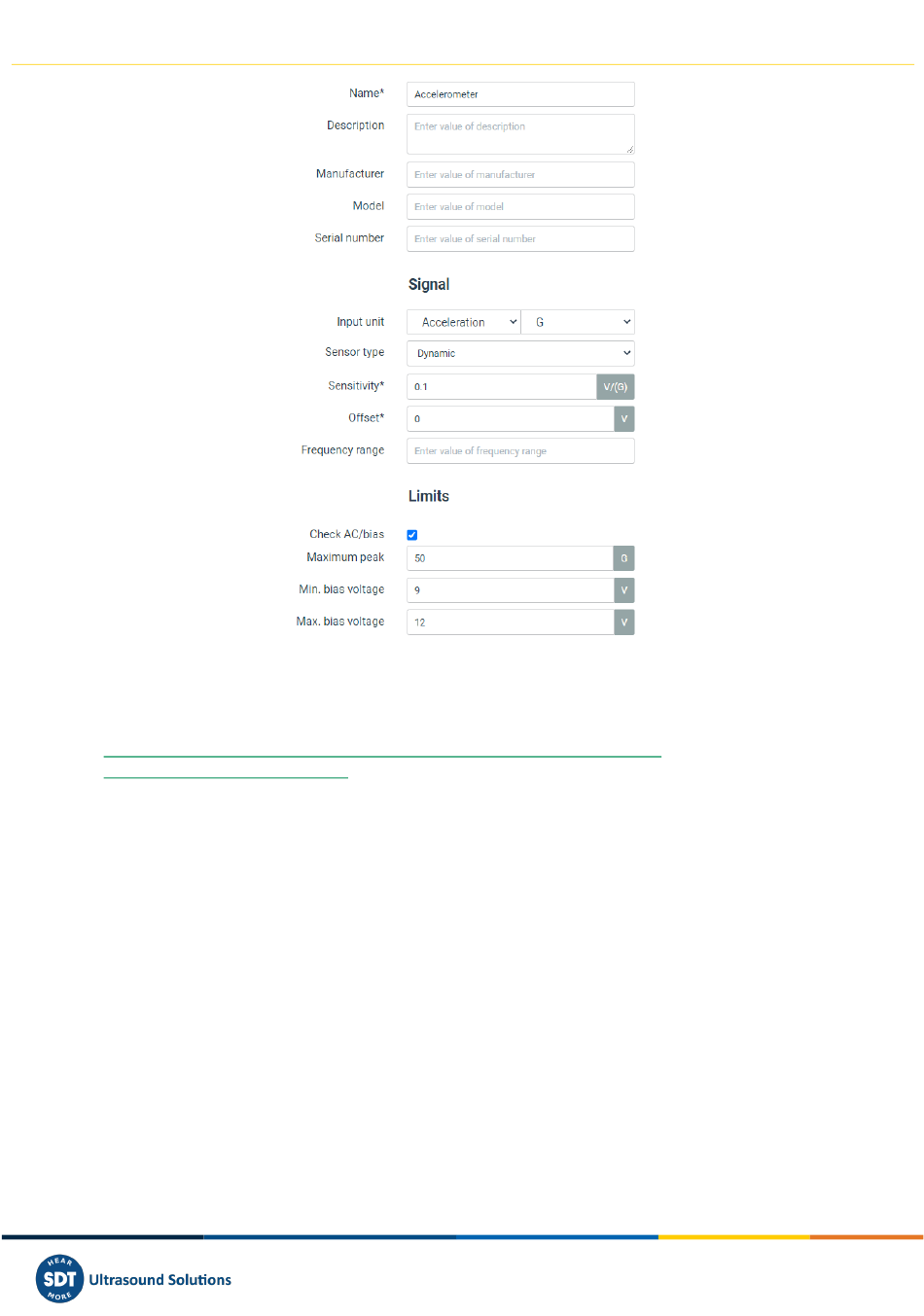

Fill the fields according to the specifications of CONMONSENSE 0-10 V:
•
Name: CONMONSense_60dB.
•
Others non-mandatory fields (description, manufacturer, model, serial number) do not
mater and you can fill them with whatever you think useful for your needs.
•
Input unit : Voltage, in [V]
•
Sensor type: Dynamic (factory settings at +60 dB)
•
Sensitivity: 1200 V/V
•
Offset voltage*: 3 V
•
The limits fields are recommended. They will generate system alarms in case of
inappropriate amplification settings
o Minimum -0.0017 V
o Maximum 0.0017 V
•
Terminate by clicking the Accept button.
