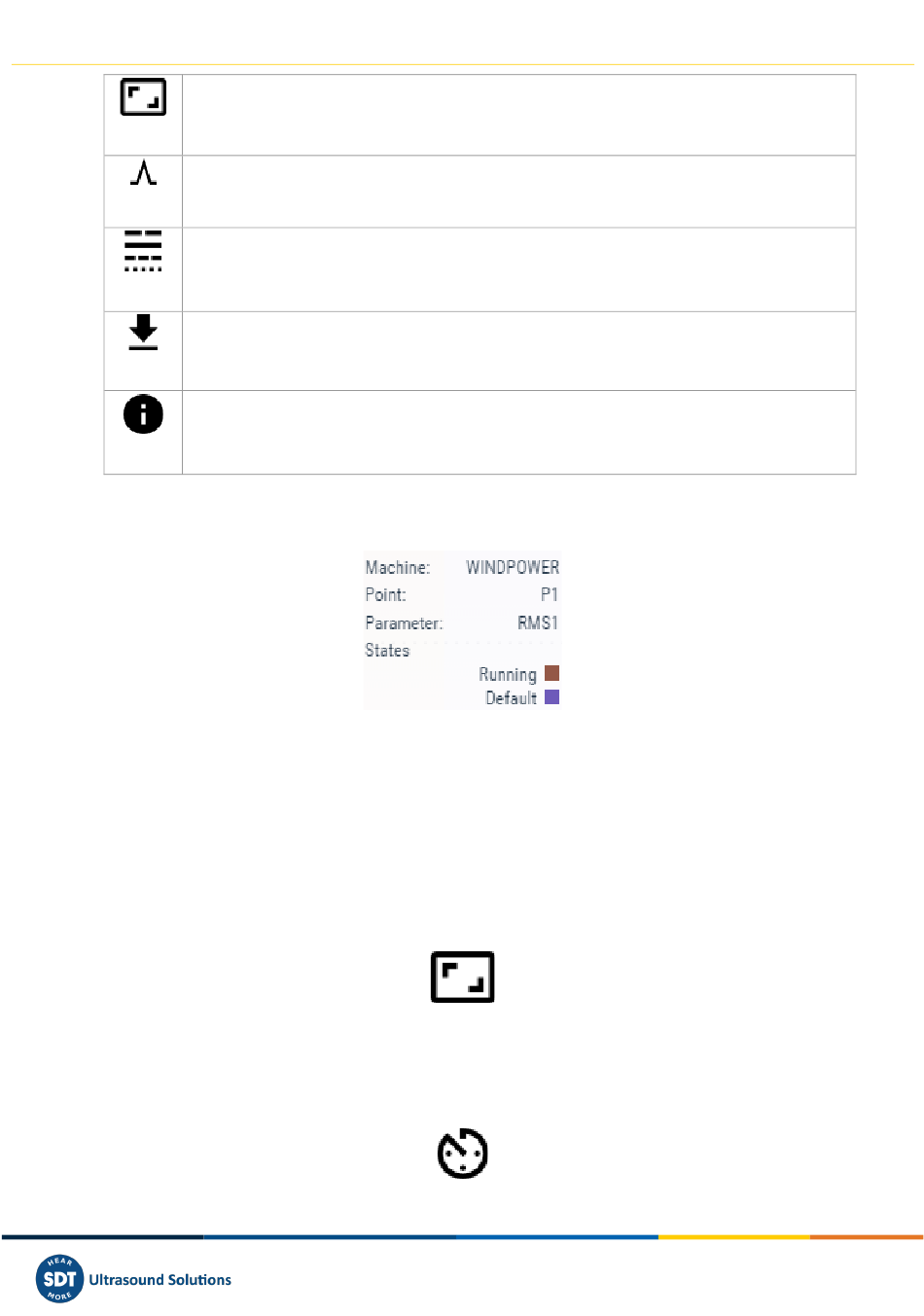

Restores the zoom to its normal condition, removing the effect of any previous zoom done on
the plot.
Sets the current cursor as a single cursor type. Clicking with the mouse on the graph will add
a cursor to the trend plot.
Selects the trend that will get the focus on the plot. make the cursor to locate on the
corresponding trend.
Exports the trend values to CSV format and creates and downloads it into a local file.
Shows/hides trend information box. This box shows the following information associated with
each trend: machine, point and parameter, along with the color line for each of them.
Note that the colored background of the graph is used to show information about the different
machine states along time (when this option is activated in the configuration of the widget). The
relation in between states and background colors is shown in the info panel of the widget:

13.6.3. Zoom tools

Use the mouse wheel to zoom in and out horizontally on the trend plot. The Widget will zoom the
trend around the time aligned vertically with the mouse location. After zooming, you can use drag and
drop with the left button of your mouse to move the plot left and right.
To make a zoom in a vertical direction locate the mouse over the Y axis and use the mouse wheel. The
trend plot will vertically zoom in and out from the location of the mouse. Locate the mouse aligned
with the 0 value of the scale to zoom in and out keeping that reference still.
Click on the Reset zoom button:
to restore the plot to its normal scaling, removing the effect of any previous zoom done on the plot.

13.6.4. Time range

Clicking on the adjust time-domain icon.
