Assembly instructions
Assembly instructions

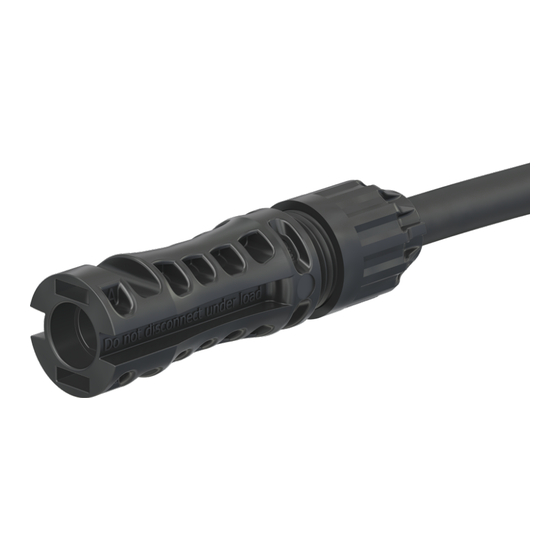

PV female coupler PV-KBT4-EVO 2A/...
PV male coupler PV-KST4-EVO 2A/...
MC4-Evo 2
Content
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Cable preparation ������������������������������������������������������������������������4
Guideline for configuring the connectors ��������������������������������������4
Crimping ��������������������������������������������������������������������������������������6
Assembly check ��������������������������������������������������������������������������7
Mating and disconnecting ������������������������������������������������������������8
Notes on installation ��������������������������������������������������������������������9
Technical Data ���������������������������������������������������������������������������10

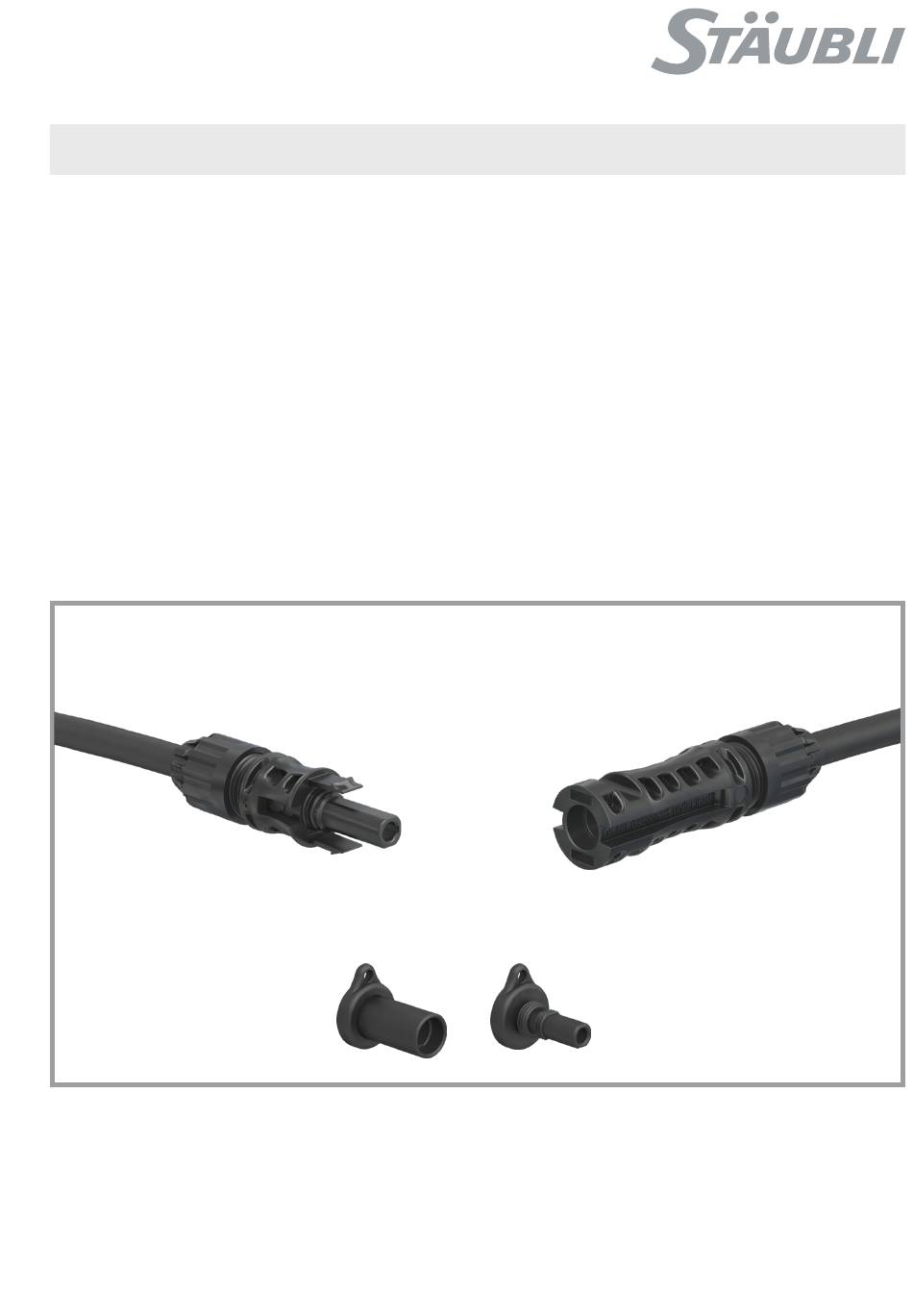

Bouchons de protection/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717
Raccord mâle
Male coupler
PV-KST4-EVO 2A/...
