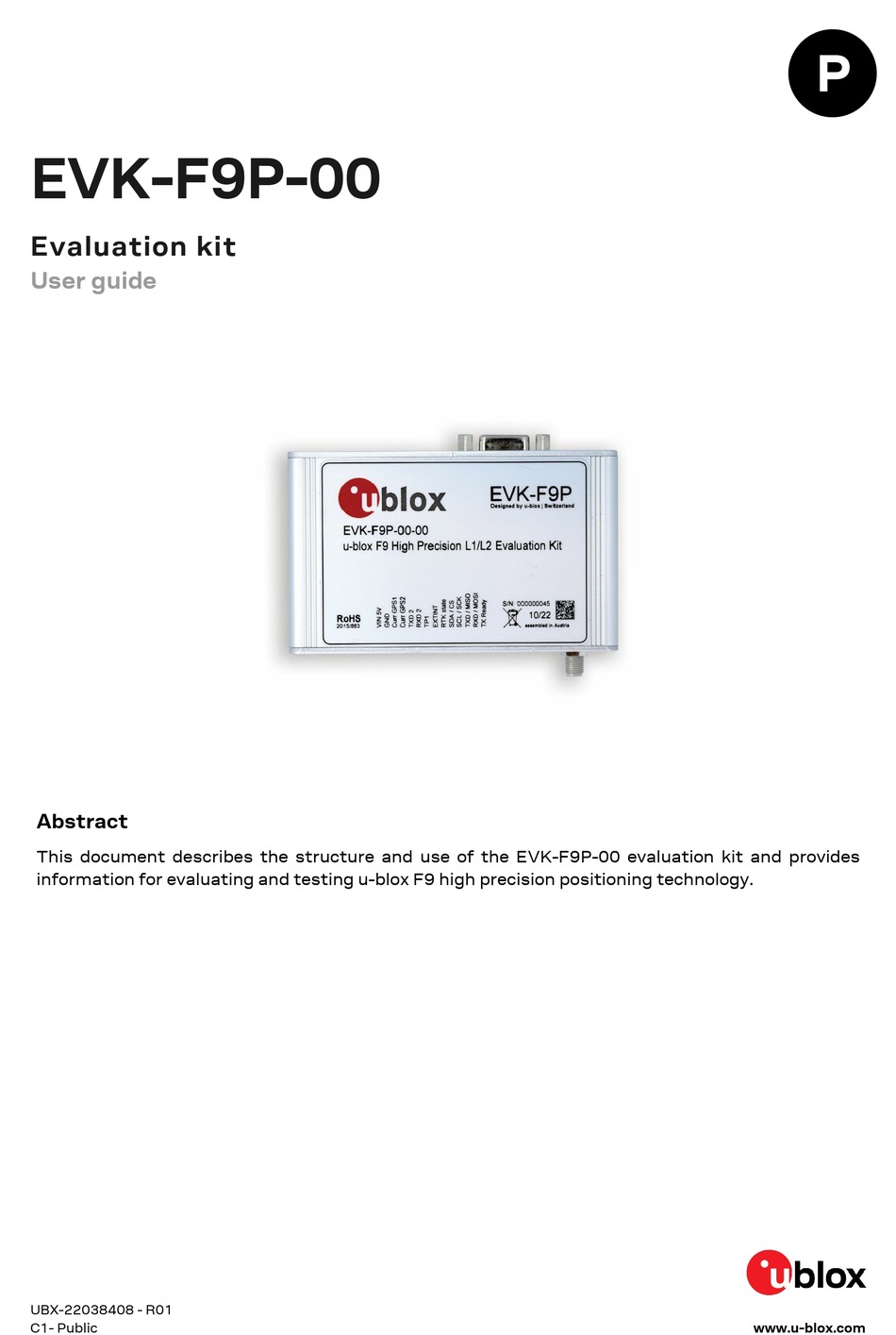

- Page 1 EVK-F9P-00 Evaluation kit User guide Abstract This document describes the structure and use of the EVK-F9P-00 evaluation kit and provides information for evaluating and testing u-blox F9 high precision positioning technology. UBX-22038408 - R01 C1- Public www.u-blox.com...
-
Page 2: Document Information
EVK-F9P-00 - User guide Document information Title EVK-F9P-00 Subtitle Evaluation kit Document type User guide Document number UBX-22038408 Revision and date 7-Dec-2022 Disclosure restriction C1- Public Product status Corresponding content status In development / Objective specification Target values. Revised and supplementary data will be published later. -
Page 3: Table Of Contents
EVK-F9P-00 - User guide Contents Document information ..........................2 Contents ............................... 3 Product description ..........................4 1.1 Overview ................................ 4 1.2 Kit contents ..............................4 1.3 Software and documentation ........................4 1.4 System requirements ..........................4 Specifications ............................5 2.1 Safety precautions ............................. 5 2.1.1 Certifications ............................ -
Page 4: Product Description

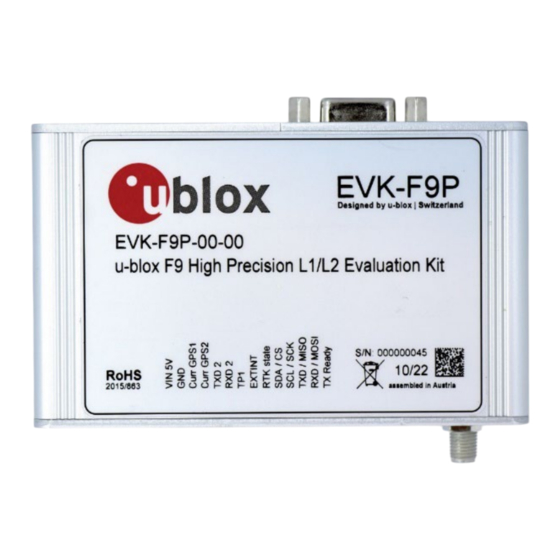

Product description 1.1 Overview The EVK-F9P-00 evaluation kit simplifies the evaluation of the more efficient u-blox F9 high precision positioning products. The built-in USB interface provides both power supply and high-speed data transfer and eliminates the need for an external power supply. The u-blox evaluation kits are compact, and their user-friendly interface and power supply make them ideally suited for use in laboratories, vehicles, and outdoor locations. -
Page 5: Specifications
1:2018 [5] for more information on the PS1 class. In addition to a limited power source, only ES1 class circuits are to be connected to the EVK-F9P-00, including interfaces and antennas. See section 5.2.1.1 of IEC 62368-1:2018 [5] for more information on the ES1 class. -
Page 6: Getting Started
EVK-F9P-00 - User guide Getting started 3.1 Installing u-center software u-center, the u-blox interactive evaluation software tool is required for configuration, testing, visualization, and data analysis of u-blox GNSS receivers as well as EVKs. The provided user guide together with the evaluation tool provide useful assistance during all phases of a system integration project. -
Page 7: Default Interface Settings
EVK-F9P-00 - User guide 3.3 Default interface settings Parameter Specification UART Port 1, input 38400 baud, 8 bits, no parity bit, 1 stop bit. UBX, NMEA and RTCM 3.3 input protocols are enabled by default. SPARTN input protocol is enabled by default. -
Page 8: Device Description
Figure 1: Connecting the unit for power supply and communication 4.2 Active antenna EVK-F9P-00 evaluation kits include an ANN-MB multi-band (L1/L2) active GNSS antenna with a 3- meter cable and an SMA connector. The recommended maximum antenna supply current for active antennas is 15 mA. -
Page 9: Db9 Connector (Rs232)
Optional time-mark input (RS232 levels) using EXTINT0 (internal jumper J6 fitment required) Timepulse 1 output (RS232 levels) Not connected 8, 9 not connected Table 4: SUB-DB9 connector pin description for EVK-F9P-00 4.3.4 RST button The RST button on the front panel resets the unit. ⚠... -
Page 10: Pin Header
TX_READY 3.3 V TX_Buffer full and ready for TX of data Table 5: Connector pin description for EVK-F9P-00 (pins numbered from right to left on the front panel) For accurate measurements, use a max 1 m cable. Figure 3 shows an example of a power supply connected to the test connector by using standard adapter cables from the manufacturer Hirschmann. -
Page 11: Led
EVK-F9P-00 - User guide 4.3.8 On the front panel of the EVK unit, there is a single blue LED with the following functionality: Description Solid blue The device is powered on with no GNSS fix. Flashing blue The LED flashes one pulse per second during a GNSS fix. -
Page 12: Measuring Current
AssistNow™ Online service. To measure the total GNSS supply current with EVK-F9P-00, follow these steps: Place the EVK in clear sky view and perform the test with good signals to ensure that the receiver can acquire the satellite signals. -
Page 13: Block Diagram
EVK-F9P-00 - User guide Block diagram Figure 5 shows the main interfaces and internal connections of the evaluation kit for ZED-F9P-00 module: Figure 5: EVB-F9P block diagram UBX-22038408 - R01 Block diagram Page 13 of 23 C1- Public... -
Page 14: Board Layout
EVK-F9P-00 - User guide Board layout Figure 6 shows the EVK-F9P-00 board layout. See Table 6 for the component list of the EVB. Figure 6: EVB-F9P layout UBX-22038408 - R01 Board layout Page 14 of 23 C1- Public... -
Page 15: Component List
EVK-F9P-00 - User guide Component list Regular Components Description GNSS RECEIVER U-BLOX ZED-F9P-04B -40/+85C C1 C2 C3 C27 C31 C33 CAP CER X5R 0402 1U0 10% 6.3V C4 C5 C6 C10 CAP CER X5R 0402 10U 20% 10V C7 C8 C11 C15 C23 C24 C25... - Page 16 EVK-F9P-00 - User guide Regular Components Description R35 R36 RES THICK FILM CHIP 0201 22R 5% 0.05W RES THICK FILM CHIP 0201 12K 1% 0.05W RES THICK FILM CHIP 0201 1M0 5% 0.05W TINY LOGIC UHS BUFFER OE_N ACTIVE LOW FAIRCHILD NC7SZ125...
-
Page 17: Schematic
EVK-F9P-00 - User guide Schematic Figure 7: Schematic EVK-F9P-00: GNSS, Antenna supervisor, Supply UBX-22038408 - R01 Schematic Page 17 of 23 C1- Public... - Page 18 EVK-F9P-00 - User guide Figure 8: Schematic EVK-F9P-00: Connectors UBX-22038408 - R01 Schematic Page 18 of 23 C1- Public...
-
Page 19: Troubleshooting
EVK-F9P-00 - User guide 10 Troubleshooting My application (e.g., u-center) does not receive anything • Check that the EVK is in clear sky view or that the antenna cable is connected. • Check that the slide switch on the front panel of the EVK is set to the communication port that user is using. - Page 20 (e.g., disabling the main communication port). The EVK-F9P-00 does not work properly when connected with a GNSS simulator When using an EVK together with a GNSS simulator, pay attention to proper handling of the EVK. A GNSS receiver is designed for real-life use, i.e., time is always moving forward.
-
Page 21: Common Evaluation Pitfalls
EVK-F9P-00 - User guide 11 Common evaluation pitfalls • A parameter may have the same name but a different definition. GNSS receivers may have a similar size, price, and power consumption, but can still have different functionalities (e.g., no support for passive antennas, different temperature range). Also, the definitions of hot, warm, and cold start times may differ between suppliers. -
Page 22: Appendix
EVK-F9P-00 - User guide Appendix A Glossary Abbreviation Definition BeiDou Chinese navigation satellite system Evaluation Kit Inter-Integrated Circuit bus Electrostatic Discharge Galileo European navigation satellite system GLONASS Russian navigation satellite system Ground GNSS Global Navigation Satellite System Global Positioning System... -
Page 23: Related Documentation
EVK-F9P-00 - User guide Related documentation [1] ZED-F9P-04B Data sheet, UBX-21044850 [2] u-blox F9-HPG-1.32 Interface description, UBX-22008968 [3] ZED-F9P Integration manual, UBX-18010802 [4] u-center User guide, UBX-13005250 [5] Information technology equipment – Safety Standard IEC 62368-1:2018 ☞ For product change notifications and regular updates of u-blox documentation, register on our website, www.u-blox.com.
