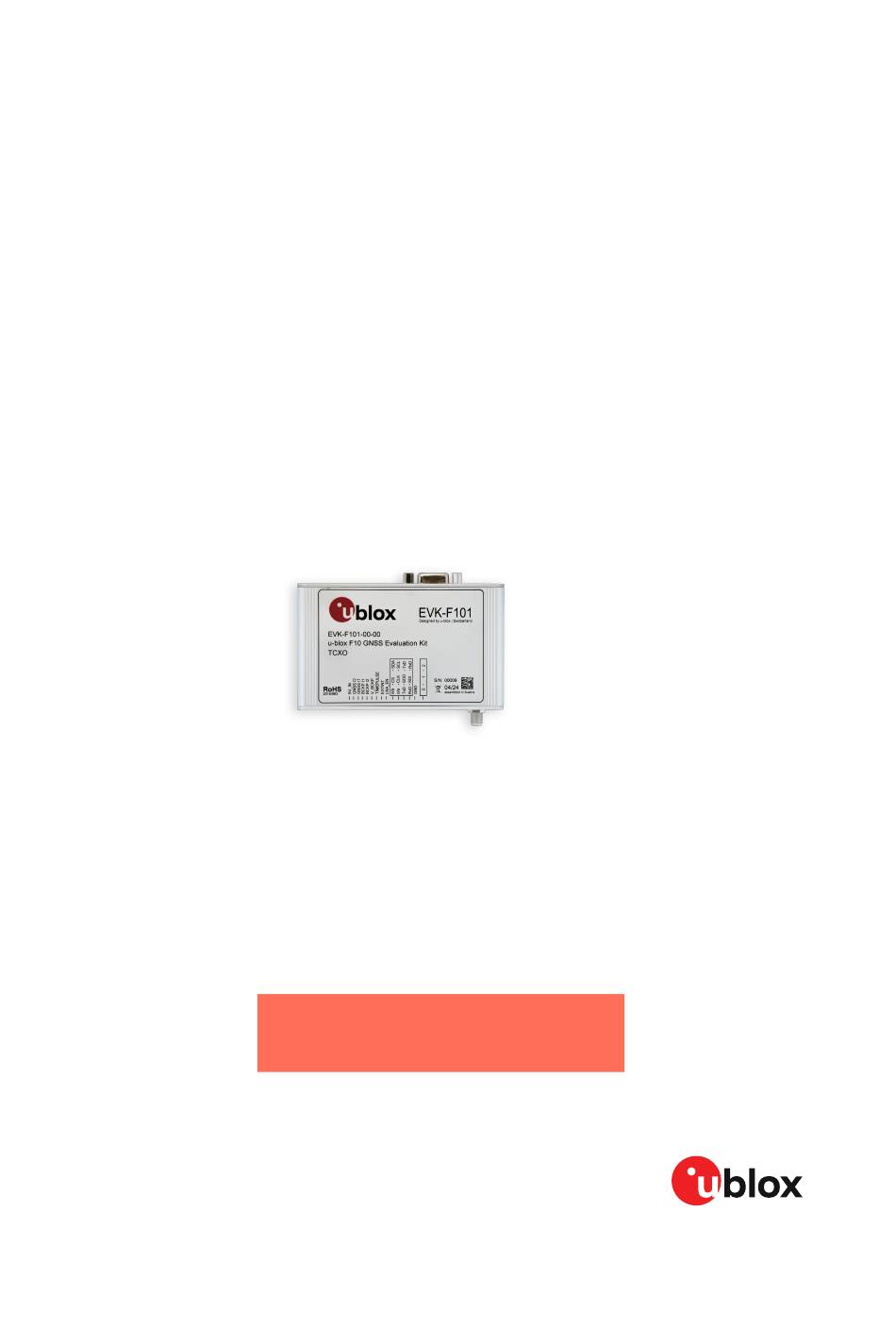

- Page 1 EVK-F101 Evaluation kit User guide Abstract This document describes the structure and use of the EVK-F101 evaluation kit and provides information for evaluating u-blox F10 dual-band positioning technology. Note! GPS L5 signals are pre-operational and not used by default. Refer to the Overview section for more information.
-
Page 2: Document Information
EVK-F101 - User guide Document information Title EVK-F101 Subtitle Evaluation kit Document type User guide Document number UBXDOC-963802114-12945 Revision and date 18-Dec-2024 Disclosure restriction C1-Public This document applies to the following products: Product name Type number FW version IN/PCN reference EVK-F101 EVK-F101-00-00 SPG 6.00... -
Page 3: Table Of Contents
EVK-F101 - User guide Contents 1 Product description......................5 1.1 Overview..............................5 1.2 Kit contents..............................5 1.3 System requirements..........................5 2 Specifications......................... 6 2.1 Safety precautions..........................6 3 Getting started........................7 3.1 Installing u-center 2 software......................7 3.2 Installing hardware..........................7 3.3 Default interface configuration......................7 4 Device description.........................9 4.1 Interface connection..........................9... - Page 4 9 Approvals..........................28 10 Troubleshooting........................ 29 11 Common evaluation pitfalls..................31 Related documents........................ 32 Revision history........................33...
-
Page 5: Product Description
1 Product description 1.1 Overview The EVK-F101 evaluation kit makes it simple to evaluate the high performance and low-power u- blox F10 L1/L5 dual-band GNSS technology. At the time of writing, the GPS L5 signals remain pre-operational and are set as unhealthy until sufficient monitoring capability is established. -
Page 6: Specifications
62368-1:2018 [4] for more information on the PS1 class. In addition to a limited power source, only ES1 class circuits are to be connected to the EVK-F101, including interfaces and antennas. See section 5.2.1.1 of IEC 62368-1:2018 [4] for more information on the ES1 class. -
Page 7: Getting Started
0 for UART 2 for I2C/UART SPI/I2C 1 for SPI 2 for I2C/UART Table 3: EVK-F101 interface switch modes Refer to Figure 2 to see these interface positions. Use UART mode 0 if the internal SPI flash memory is in use. - Page 8 EVK-F101 - User guide Parameter Description Remark UART, Output UBX and NMEA protocol at 38400 baud Only NMEA messages are activated by default SPI / I2C, Input UBX and NMEA protocol SPI / I2C, Output UBX and NMEA protocol Only NMEA messages are activated by default Table 4: Default configuration...
-
Page 9: Device Description
Figure 4.1 Interface connection The EVK-F101 supports UART, I2C and SPI communication interfaces . To connect the EVK to a PC, use a standard SUBD-9 cable or the included USB cable depending on the interface in use. The EVK includes an on-board USB-to-Serial converter for USB-to-UART communication with the receiver. -
Page 10: 14-Pin Connector
RS-232 – back side or the 3.3 V level TXD/SDO, RXD/SDI pins at the front side). 4.1.2 14-pin connector The EVK-F101 front side has a 14-pin connector that provides programmable input/output signals, communication interfaces and supply options. All these pins are ESD protected. The 14-pin connector can be used for communicating with the receiver through the UART, SPI and I2C interfaces. -
Page 11: Usb
The USB connector in the evaluation kit can be used for both power supply and communication. The easiest way to evaluate the EVK-F101 operation is to connect the EVK to a PC with the USB cable and use the u-center 2 tool to configure and monitor the GNSS functions. The USB connector is internally connected to a USB-to-serial converter that connects to the UART interface of the u-blox F10 receiver in the EVK. -
Page 12: Spi
For evaluating with an external antenna, use the correct mode of the internal LNA as per the external antenna gain. By default, EVK-F101 operates in the low gain mode. The possible maximum external antenna gain corresponding to the different internal LNA modes are listed below:... -
Page 13: Antenna Connector
ANN-MB1 [7] Table 7: EVK-F101 maximum external antenna gain limits When using the EVK-F101 in environments with high RF interference, for optimal performance, it is advisable to select a high-immunity, high-gain antenna, such as u-blox ANN-MB1 [7]. Before connecting a high-immunity antenna like ANN-MB1 to EVK-F101, ensure that the internal LNA mode is set to bypass mode. -
Page 14: Flash Memory
EVK-F101 - User guide 4.7 Flash memory EVK-F101 has a 16-Mbit SPI flash that is connected to the u-blox F10 receiver. By default, it can be used to: • Store the current configuration permanently. • Save data logging results. • Store AssistNow ™... -
Page 15: Measuring Current
™ Online service. On EVK-F101, the main supply voltage for the u-blox F10 GNSS receiver is 3.3 V. The EVK contains an internal 3.3 V to 1.0 V DC-DC converter to reduce power consumption from the core and RF power domains of the receiver. -
Page 16: Measuring Backup Current
EVK board. The test points are connected to the I2C current sensors on the EVK board, as shown in Figure 5.3 Measuring backup current To measure the backup current (I ) with EVK-F101, follow these steps: BCKP UBXDOC-963802114-12945 - R02 5 Measuring current Page 16 of 34 ... - Page 17 EVK-F101 - User guide Connect a true RMS voltmeter across BCKP I1 (pin 11) and BCKP I2 (pin 10) of the 14-pin connector. Remove the power supply by disconnecting the USB cable from the PC or other external power supply from the 14-pin connector.
-
Page 18: Block Diagram
EVK-F101 - User guide 6 Block diagram EVK-F101 block diagram provides an overview on supply voltages, current measurement and communication interfaces as shown in Figure Figure 6: EVK-F101 block diagram UBXDOC-963802114-12945 - R02 6 Block diagram Page 18 of 34 C1-Public... -
Page 19: Board Layout
EVK-F101 - User guide 7 Board layout Figure 7: EVK-F101 board layout Figure 8: EVK-F101 PCB UBXDOC-963802114-12945 - R02 7 Board layout Page 19 of 34 C1-Public... -
Page 20: Configuring The Device
EVK-F101 - User guide 8 Configuring the device This chapter shows how to configure and evaluate the EVK-F101 key features related to power modes, GNSS constellations, and navigation rate of the receiver. The receiver can be configured with the configuration keys using the u-center 2 evaluation tool in the Device configuration -> Advanced configuration view, as shown in... -
Page 21: Configuring Uart Baud Rate
• u-blox EVK-F101 current sensors: do not use this COM port. • u-blox EVK-F101 Port B: do not use this COM port. • u-blox EVK-F101 UART: use this COM port for UART communication with the receiver via the FTDI USB-to-UART interface. -
Page 22: Configuring Gnss Constellations
EVK-F101 - User guide Figure 11: EVK-F101 UART baud rate configuration Setting a different baud rate will interrupt communication. If other configuration keys were set after, these will not be applied. Therefore, the new baud rate needs to be selected manually in u- center 2 to resume communication with the host and apply the remaining configuration items. -
Page 23: Using Gps L5 Signals For Evaluation
Figure 12: EVK-F101 receiver GNSS configuration 8.4 Using GPS L5 signals for evaluation EVK-F101 supports both GPS L1 C/A and L5 signals. Broadcasting of Civil Navigation (CNAV) messages on the L5 signal began in April 2014. At the time of writing, GPS L5 signals remain pre- operational. -
Page 24: Configuring Navigation Update Rate
To apply the configuration stored in the BBR and flash layers, send the UBX-CFG-RST message with resetMode 0x01 as shown in Figure Figure 14: EVK-F101 UBX-CFG-RST message view with reset mode 0x01 To revert to the default configuration, send the configuration string given in Table 10 by navigating to Tools and Services ->... -
Page 25: Configuring Internal Lna Mode
EVK with a passive or an active antenna. It is also suitable when a GNSS simulator is connected to the EVK. This is the default mode on EVK-F101.This mode is to be used for example with the ANN-MB5 antenna provided with the EVK. -
Page 26: Configuring Power Modes
EVK-F101 - User guide Figure 16: EVK-F101 receiver internal LNA mode configuration 8.7 Configuring power modes EVK-F101 supports continuous power mode only. This is the full power mode and the default mode of the receiver. 8.7.1 Configuring backup modes EVK-F101 supports two backup modes: hardware backup mode and software standby mode. - Page 27 EVK-F101 - User guide Figure 17: EVK-F101 receiver software standby mode configuration Refer to u-blox F10 interface description for more information on the advanced receiver configuration [6]. UBXDOC-963802114-12945 - R02 8 Configuring the device Page 27 of 34 C1-Public...
-
Page 28: Approvals
EVK-F101 complies with the essential requirements and other relevant provisions of the Radio Equipment Directive (RED) 2014/53/EU. EVK-F101 complies with the Directive 2011/65/EU (EU RoHS 2) and its amendment Directive (EU) 2015/863 (EU RoHS 3). The Declaration of Conformity (DoC) is available at u-blox website. -
Page 29: Troubleshooting
FTDI drivers are not automatically mapped in Linux environment EVK-F101 does not officially support Linux. The following example shows how to map the available FTDI drivers to the connected EVK. - Page 30 EVK-F101 does not work properly when connected to a GNSS simulator When using EVK-F101 together with a GNSS simulator, pay attention to proper handling of the EVK. A GNSS receiver is designed for real-life use (i.e. time is always moving forward). When using a GNSS simulator scenario, the scenario time can be in the past causing the receiver to jump backwards in time.
-
Page 31: Common Evaluation Pitfalls
• When doing reacquisition tests, cover the antenna to block the sky view. • Configure the correct gain of the internal LNA in EVK-F101. By default, EVK-F101 operates in the low gain mode with ANN-MB5 provided with the evaluation kit. If connecting EVK-F101 to another external antenna with a gain exceeding the limit specified in... -
Page 32: Related Documents
EVK-F101 - User guide Related documents UBX-F10050-KB Data sheet, UBXDOC-963802114-8749 (NDA required) MAX-F10S Data sheet, UBXDOC-963802114-12732 MIA-F10Q Data sheet, UBXDOC-963802114-13204 (NDA required) Information technology equipment - Safety Standard IEC 62368-1:2018 u-center 2 User guide, www.u-blox.com/en/info/u-center-2-user-guide u-blox F10 SPG 6.00 Interface description, UBX-23002975 ANN-MB1 antenna, https://www.u-blox.com/en/product/ann-mb1-antenna... -
Page 33: Revision History
EVK-F101 - User guide Revision history Revision Date Status / comments 29-Aug-2024 Initial release 18-Dec-2024 Added chapter Approvals Updated chapter Related documents UBXDOC-963802114-12945 - R02 Revision history Page 33 of 34 C1-Public... - Page 34 EVK-F101 - User guide Contact u-blox AG Address: Zürcherstrasse 68 8800 Thalwil Switzerland For further support and contact information, visit us at www.u-blox.com/support. UBXDOC-963802114-12945 - R02 Page 34 of 34 C1-Public...
